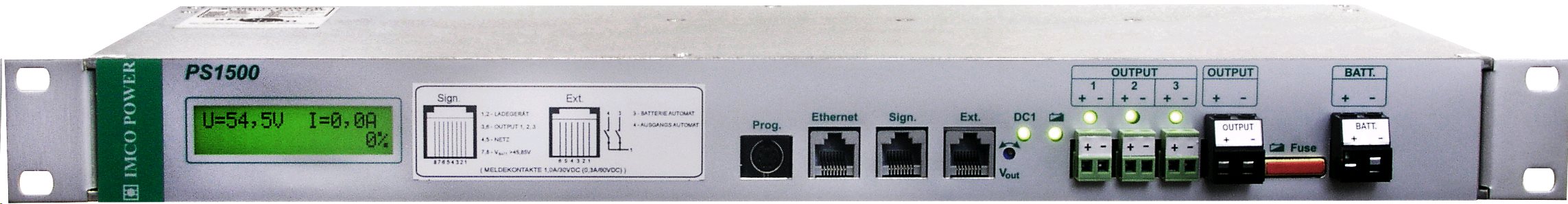

IMCO POWER PS1500.J 4815, backup power supply 48V/15A, 830W

Backup source type PS1500.J, with power 830 W, is used for power and backup 48V (55.2,8) in the device. It has a module of converters built by the most advanced energy conversion technology, with respect to maximum efficiency.More information

Producer

IMCO POWER

Part No.

EV000815

Code

00029701

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

675.58 EUR exc. VAT

VAT

21%

Your price inc. VAT

817.45 EUR inc. VAT

Ask for a better price

Description

Backup source PS1500.J 4815 in 19" used for backed up for backed power supply 48 (55.2) V device. Charging.
The source is equipped with Local indication LED and LCD . In addition to the main 15 and output, the source 3 has other electronically secured outputs up to 6 A. The battery also has a separate belay. The source has 4x remote signaling via relay contact-network failure, resource failure, output failure 1, 2, 3 and battery capacity decrease in 1. Source can monitor 2 binary input signals-eg contact protection and output. In the event of a network power failure, the connected battery ensures non-free load power supply. After renewing the network, the source ensures correct recharge of the battery to its full capacity.

The source is designed for mounting to 19"frame . The network connection is via the movable inlet on the back, connectors for connecting battery, outputs, external inputs, signaling and SNMP are on the front.

Package content: power cord, source

Parameters

Ethernet parameters
DC Output Voltage (V)	55.2
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED, LCD
Output Current (A)	15
Power consumption (W)	830
Remote signalling	Kontakty relé, Výpadek sítě, Porucha výstupu 1.2.3, V bat<46V
SNMP	No
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	204
Design	Rackmount
Efficiency (%)	92
Height (mm)	44.5
Odpojovač baterie (V)	42
Operating Temperature	-25° až +50°C
Weight (kg)	2.6
Width (mm)	436
Powering
PoE	No
Typ zdroje	Zálohovaný
