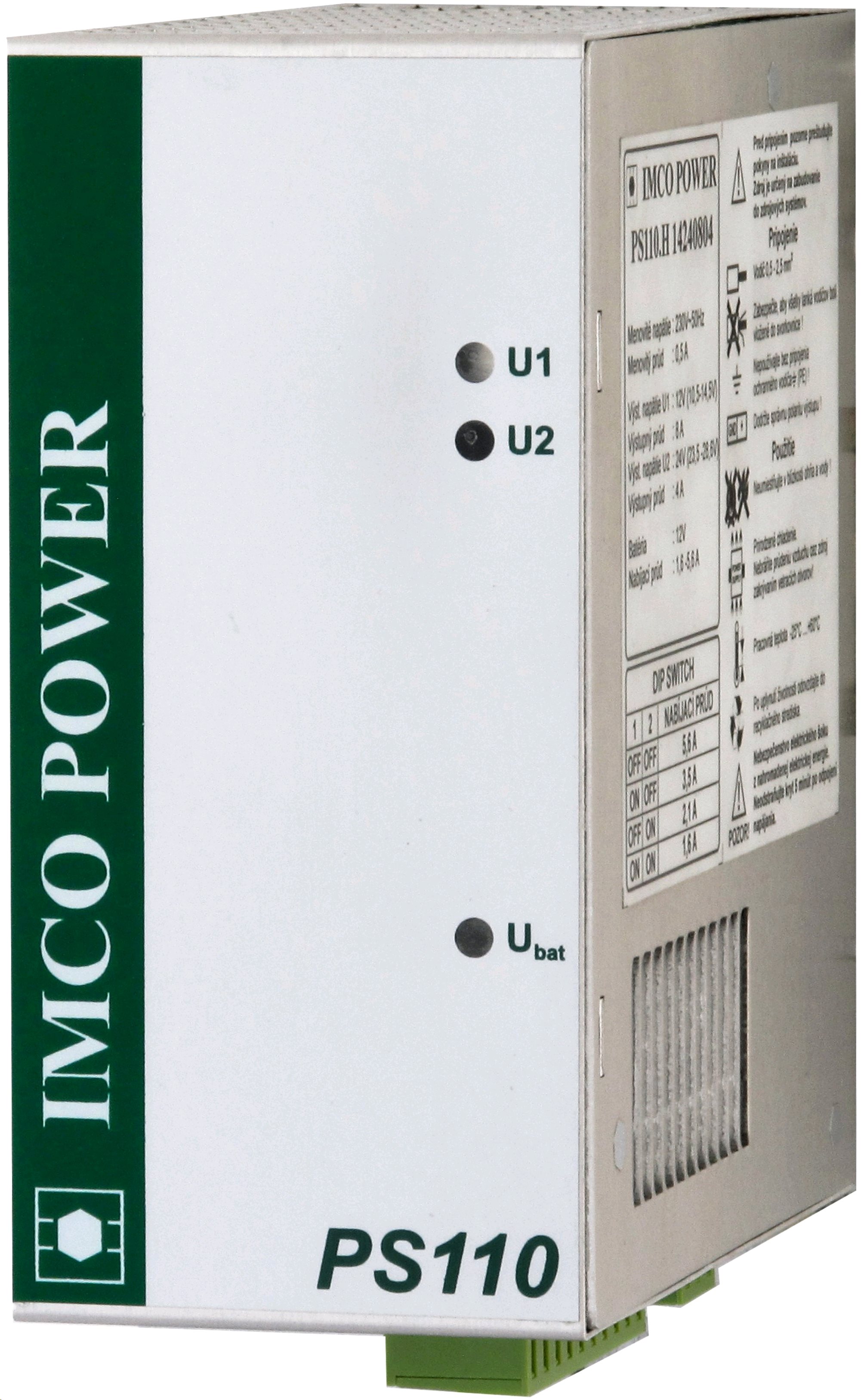

IMCO POWER PS110.H, backup source, 100W

Backup power supply PS110.h, with an output of 110 W, used to back up 12 V (8 A) and 24 V (4) or 48 V (2 A). It has a changer built with the most advanced energy conversion technology with regard to maximum efficiency.More information

Producer

IMCO POWER

Code

00030080

Warranty

36 Month

Your price exc. VAT

from 175.50 EUR exc. VAT

Your price inc. VAT

from 212.35 EUR inc. VAT

Select a variant

Availability

Availability in stores

Ask for a better price

IMCO POWER PS110.H, backup source, 100W - variants

		Count	Name	Code	Description	Availability	Your price exc. VAT	Your price inc. VAT
to 1 month		1pcs.	IMCO POWER PS110.H 12240804, backup power supply 12V+24V, 110W Provedení na DIN lištu 00029981 to 1 month Availability in stores	00029981	Backup power 230V ~ 50Hz/13.8 (8A), a DC/DC converter 24V (4A), DIN rail, temp. comp. charging battery	to 1 month	186.70 EUR 225.91 EUR inc. VAT	225.91 EUR	Add to cart
in stock		1pcs.	IMCO POWER PS110.H 12480802, backup power supply 12V+48V, 110W Provedení na DIN lištu 00029982 in stock Availability in stores	00029982	Backup power 230V ~ 50Hz/13.8 (8A), a DC/DC converter 48V (2A), DIN rail, temp. comp. charging battery	in stock	190.61 EUR 230.64 EUR inc. VAT	230.64 EUR	Add to cart

Ask for a better price

Description

Backup source type PS110.H is used to back up the power supply 12 V (8 A) and 24 V (4) or 48 V (2 A) . The overall power of the source is 110 W . In the event of a power supply power supply, the connected battery 12 V provides a load power supply 12 V and I 24 V (48 V). After the power supply, the source ensures the recharge of the battery for its full capacity. The charging voltage is temperature compensated and the charging current can be set at 4 levels.

LED DODY on the front panel signals the output voltage and battery status. Remote signaling signals a power outage and a battery capacity decrease in 1.

Sources PS110.H is produced in the following copies:
-PS110.H XXXXYYYYY
-H-Staging on DIN Railway
-XXXX determines the output voltage size 1 and 2
-Yyyy determines the output current size 1 and 2

The source is intended for installation on din bar . The input connection is 3-wire through a removable connector with a cross-section of wires up to 2.5 mm2.

Parameters

Ethernet parameters
Battery charging current	1.6 A, 2.1 A, 3.5 A, 5.6 A
DC Output Voltage (V)	24, 48, 13.8
DIN rail mounting	Yes
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Output Current (A)	2, 4, 8
Power consumption (W)	110
Rack mounting	Ne
SNMP	No
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	134
Design	DIN rail
Efficiency (%)	90
Height (mm)	128
Odpojovač baterie (V)	10.3
Operating Temperature	-25° - +60°C
Weight (kg)	0.58
Width (mm)	60
Powering
PoE	No
Typ zdroje	Zálohovaný
