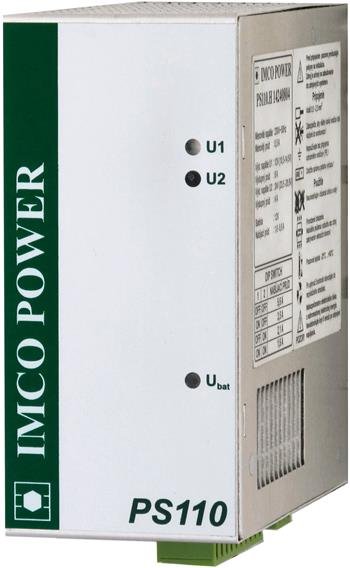

IMCO POWER PS110.H 12240804, backup power supply 12V+24V, 110W

Name: IMCO POWER PS110.H 12240804, backup power supply 12V+24V, 110W
Brand: IMCO POWER
SKU: 31092
Price: 226.51 EUR
Availability: OutOfStock

Backup power 230V ~ 50Hz/13.8 (8A), a DC/DC converter 24V (4A), DIN rail, temp. comp. charging batteryMore information

Producer

IMCO POWER

Part No.

EV000960

Code

00029981

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

187.20 EUR exc. VAT

VAT

21%

Your price inc. VAT

226.51 EUR inc. VAT

Ask for a better price

Description

Backup source PS110.H 12240804 , used to back up 12 (13.8) V and 24 V . The overall power of the source is 110 W . In the event of a power failure power supply, the connected battery 12 V provides the impossible power supply 12 V and I 24 V. After the power is restored, the source ensures the recharge of the battery to its full capacity. The charging voltage is temperature compensated and the charging current can be set at 4 levels.

LEDs on the front panel signal the status of the output voltage and the status of the battery. Remote signaling indicates a power outage and a decrease in battery capacity to 1/2.

The source is intended for installation on din bar . Input connection is 3-wire through a removable connector with a cross-section of wires up to 2.5 mm2.

Package content: thermal sensor, source

Parameters

Physical parameters
Battery charging current	1.6 A, 2.1 A, 3,5 A, 5.6 A
DC Output Voltage (V)	24, 13.8
DIN rail mounting	Yes
Input Voltage (V)	230
Management	No
Network interface (Mbps)	10/100/1000
Operating Temperature	-25°C až 60°C
Output Current (A)	4, 8
Rack mounting	Ne
Recharge batteries	Yes
SNMP	No
Depth (mm)	134
Design	DIN rail
Efficiency (%)	90
Height (mm)	128
Weight (kg)	0.58
Width (mm)	60
Powering
PoE	No
Power consumption (W)	110
Typ zdroje	Zálohovaný
