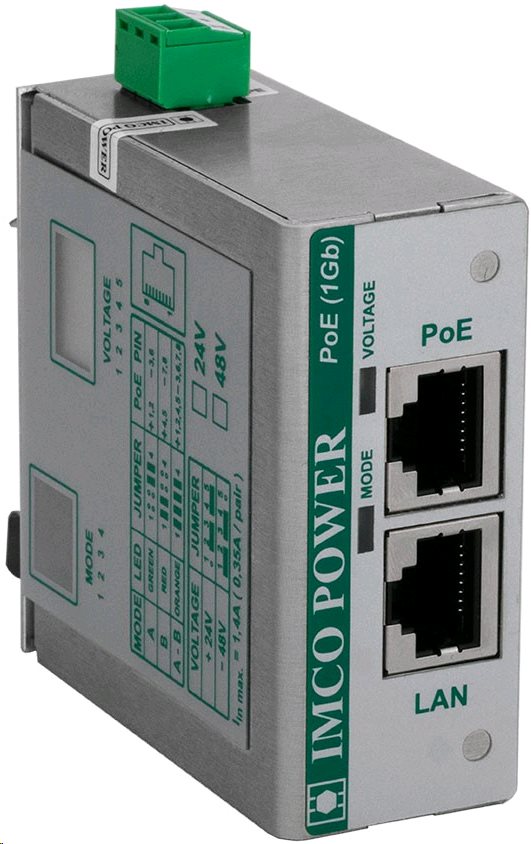

IMCO POWER PoE.H 1 Gbps, passive PoE module

Passive PoE.H 1Gb passive module with overvoltage protection and DIN rail protection ; ; Operating voltage: 8-56V via a removable connector ; Output current: 1.4A max. (0.35A/500mA fuse protected) ; Operating temperature:-30-+ 60 ° C ; Local...More information

Producer

IMCO POWER

Part No.

EV003391

Code

00033786

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

56.17 EUR exc. VAT

VAT

21%

Your price inc. VAT

67.97 EUR inc. VAT

Ask for a better price

Description

Passive PoE Module Poe. H allows remote power supply with output voltage to 56V and current to 1.4A (0.35A/pair) . with a transfer test of 1 Gbps. The overall power of the module is 83W . The module output is fused with 1,4A. The module contains an input filter for power, overvoltage protection on the side of both LAN and POE network. Using the jumper switching, it is possible to set after which pairs will be done. The module can be placed on the DIN bar .

The module can also be used for backup sources with two output voltages (+24V and-48V) and using jumpers can be set from which the device will be on the side of the side.

Parameters

Physical parameters
Local signalling	LED
Network interface (Mbps)	10/100/1000
Operating Temperature	-30° až +60°C
Output Current (A)	1.4
Output Power (W)	83
Properties	Ochrana proti přepětí
Depth (mm)	62
Design	DIN rail
Height (mm)	27.5
Weight (kg)	0.055
Width (mm)	75
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
