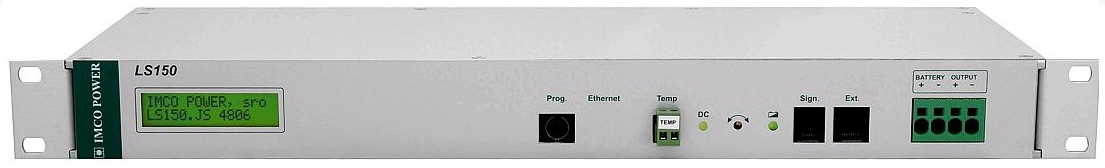

IMCO POWER LS150.JS 4806, backup power supply 48V/6A, 350W, SNMP

The backup source of the LS150.JS, with an output of 350 W, is used to power and back up 48 in the DC device. It has a module of converters built by the most advanced energy conversion technology, with respect to maximum efficiency.More information

Producer

IMCO POWER

Part No.

EV002348

Code

00029938

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

587.12 EUR exc. VAT

VAT

21%

Your price inc. VAT

710.41 EUR inc. VAT

Ask for a better price

Description

backup source LS150.JS 4806 in 19" The power supply to its full capacity and subsequently maintaining the proper voltage according to the ambient temperature (up to 41 A) is also used as a source for emergency lights.
The LCD display and LEDs on the front panel signal the status of the network, output voltages, battery status, standard and setting of POE and distribution module. The remote signaling warns of the power outage and the battery capacity drop to 50#i6per#. SNMP adapter has a web opening with an event history

The LS150 is designed for installation to the 19 'frames . Connecting the power supply to the net is via the movable inlet from the back. The battery and output connecting terminals (6 mm

2 ), signaling and overviews are on the front.

Parameters

Physical parameters
Battery charging current	1 A, 1,5 A, 4 A, 6 A
DC Output Voltage (V)	55.2
DIN rail mounting	No
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED, LCD
Network interface (Mbps)	10/100/1000
Operating Temperature	-30° až +60°C
Output Current (A)	6.25
Rack mounting	Ano
Remote signalling	Kontakty relé, SNMP, Výpadek sítě, V bat <45.9V
SNMP	Yes
Depth (mm)	180
Design	Rackmount
Efficiency (%)	94
Height (mm)	44.5
Odpojovač baterie (V)	42
Weight (kg)	1.8
Width (mm)	436
Powering
PoE	No
Power consumption (W)	350
Typ zdroje	Zálohovaný
