IMCO POWER LS150.J 2412, backup power supply 24V/12A, 280W

The backup source of the LS150.J, with an output of 280 W, is used to power and back up 24 V DC devices. It has a module of converters built by the most advanced energy conversion technology, with respect to maximum efficiency.More information

Producer

IMCO POWER

Part No.

EV002369

Code

00029929

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

443.53 EUR exc. VAT

VAT

21%

Your price inc. VAT

536.67 EUR inc. VAT

Ask for a better price

Description

Backup source PS1500.J 2412 in 19" used to power and backup 24 (27.6) V device.
In the event of a network power failure, the connected battery ensures non-free load power supply. After the network recovery, the source ensures correct high-speed battery for its full capacity and then maintaining it with proper voltage according to the ambient temperature. The output current from the battery (up to 41 A) allows use as a source for emergency lighting, when the battery is recharged during normal operation and the load is powered from the battery in the network.

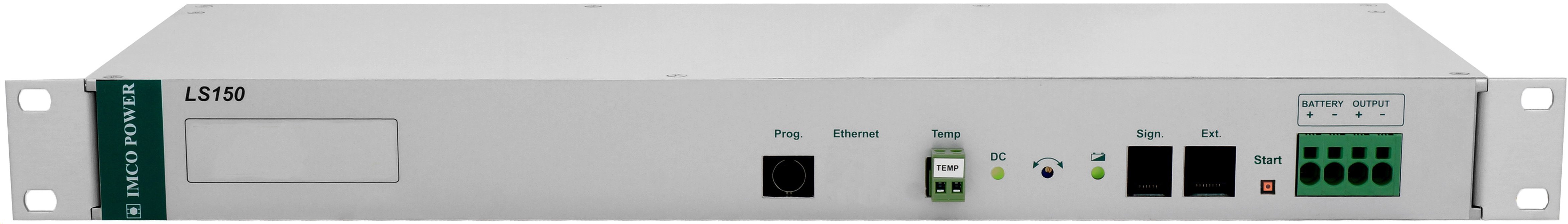

The LS150 source is designed for installation to 19 'frames . Connecting the power supply to the net is via the movable inlet from the back. Battery and output connections (6 mm2), signaling and overviews are on the front.

Package content: power cord, source

Parameters

Ethernet parameters
Battery charging current	2 A, 3 A, 8 A, 12 A
DC Output Voltage (V)	27.6
DIN rail mounting	No
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED
Output Current (A)	12.5
Power consumption (W)	280, 350
Rack mounting	Ano
SNMP	No
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	180
Design	Rackmount
Efficiency (%)	93
Height (mm)	44.5
Odpojovač baterie (V)	21
Operating Temperature	-30° až +60°C
Weight (kg)	1.7
Width (mm)	436
Powering
PoE	No
Typ zdroje	Zálohovaný
