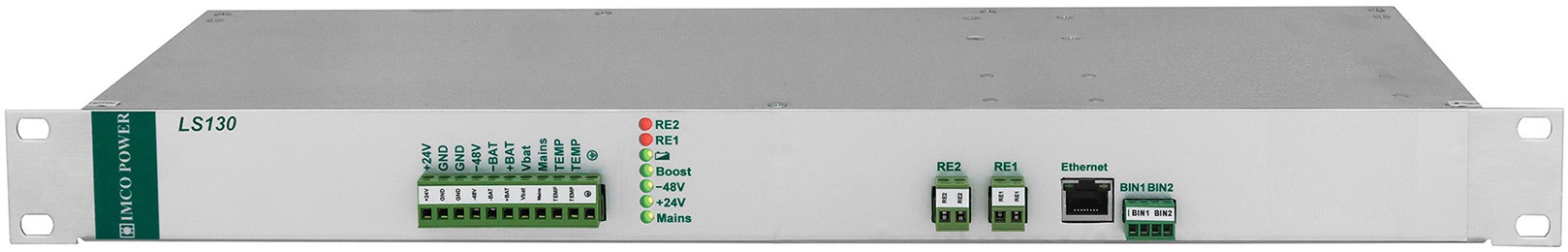

IMCO POWER LS130.J 1216, backup power supply 12V/16A, 220W

Seagull backup source 280W, 230V ~ 50Hz/13.8 V (16A), PFC + LLC (ZVS), thermal comp. Battery charging, short-circuit protection, battery connection with opposite polarity.More information

Producer

IMCO POWER

Part No.

EV004924

Code

00073768

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

343.92 EUR exc. VAT

VAT

21%

Your price inc. VAT

416.14 EUR inc. VAT

Ask for a better price

Description

The LS130.j 1216 type is provided at 12 (13.8) V to power the device to 16 A. The total power power is 220 W . In the event of a network power failure, the connected battery ensures unloading the load power . After the power recovery, the source ensures the battery speed of the battery for its full capacity. The charging voltage is temperature-compensated.

LEDs on the front panel signal the status of the output voltage, quick charging and battery status. The remote signaling indicates a power failure and a battery capacity decrease in 1/2. The source is designed for installation in rack . The input connection is 3-wirefire via a removable connector with a cross-section of the wires up to 2.5 mm

2 .

The source has integrated the following protection :

Surgery/Purpal/thermal
against short-circuit
Against Battery Connection with the opposite polarity
against excessive discharge

parameters:

input voltage 230 V ~ 50 Hz
Backup power supply 13.8 V (16 A)/220 W Output power, PFC
-30 ° C-+60 ° C, quick charging, temperature controlled charging
LED, signaling power outage and battery capacity drop to 1/2
manual restart
Covery: Rackmount
standards: Electrical safety-STN EN 60950, EMC-STN EN 61000-3-2, STN EN 55022

Parameters

Ethernet parameters
Battery charging current	2.5 A
DC Output Voltage (V)	13.8
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED
Output Current (A)	16
Power consumption (W)	280
Properties	Nabíjení baterie, Start z baterie, Tepelná ochrana, Ochrana proti zkratu
Rack mounting	Ano
Remote signalling	Výpadek sítě, Kapacita AKU <1/2
SNMP	No
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	150
Design	Rackmount
Height (mm)	45
Odpojovač baterie (V)	10.5
Operating Temperature	-30° až +60°C
Weight (kg)	1.1
Width (mm)	436
Powering
PoE	No
Typ zdroje	Zálohovaný
