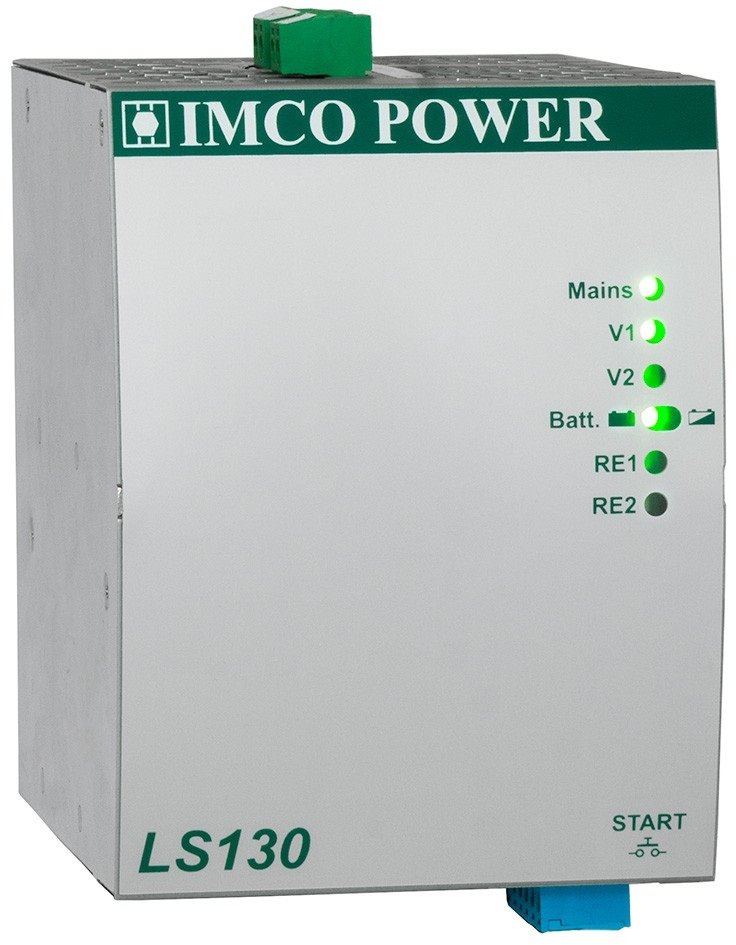

IMCO POWER LS130.HS 1316 LFP, backup power source 12V/16A, 240W, SNMP, LiFePO4 battery

Backup source type LS130.HS 1316 LFP provides 12 (14.6) at the option to power the device to 16 a. The total power power is 240 W . The source is designed for LIFEPO4 batteries . In the event of a network power failure, the connected battery ensures unloading the load power . After the power is restored, the source ensures the battery high-speed battery (lead, gel, AGM) for its full capacity. The charging voltage is temperature-compensated.

LEDs on the front panel signal the status of the output voltage, quick charging and battery status. The remote signaling indicates a power failure and a battery capacity decrease in 1/2. The built-in web/SNMP monitoring allows not only remote supervision of individual quantities, but also control 2 independent relays that are programmed as Watchdog IP addresses, manual ON/OFF, or restart devices. It is also possible to monitor 2 external binary signals. The source is designed for installation on din rail . The input connection is 3-wirefire via a removable connector with a cross-section of the wires up to 2.5 mm

2 .

The source has integrated the following protection :

• Surgery/Purpal/thermal
• against short-circuit
• Against Battery Connection with the opposite polarity
• against excessive discharge

parameters:

• input voltage 230 V ~ 50 Hz
• Backup power supply 14.6 V (16 A)/240 W Output power, PFC
• -30 ° C-+60 ° C, quick charging, temperature controlled charging
• LED, signaling power outage and battery capacity drop to 1/2
• SNMP with Web, 2x Watchdog, Manual Restart
• copy: din
• standards: Electrical safety-STN EN 60950, EMC-STN EN 61000-3-2, STN EN 55022
