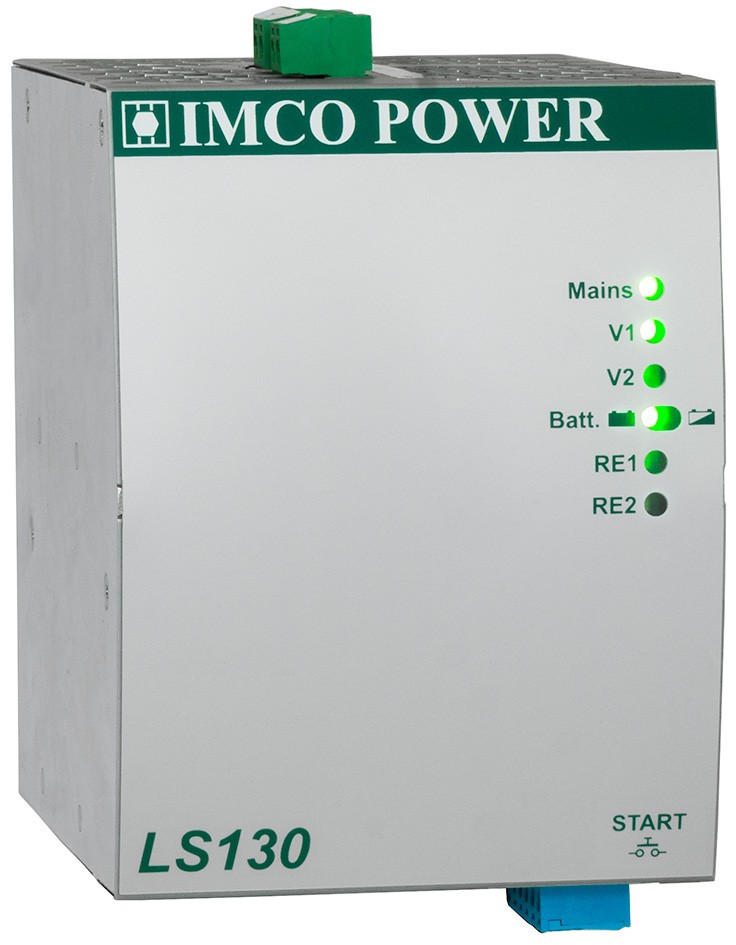

IMCO POWER LS130.H 24481004R, backup power supply 24V+48V (R), 280W

Backup source type LS130.H 24481004R , version on din rail , with two output voltages, is used for backup 24 (27.6) in and +48 V devices. Total power is 280 W , the power of the 48 V inverter module is 200 W . In the event of a network power failure, the connected battery ensures unloading the load power . After the power is restored, the source ensures the battery high-speed battery (lead, gel, AGM) for its full capacity. The charging voltage is temperature-compensated.

LEDs on the front panel signal the status of the output voltage, quick charging and battery status. The remote signaling indicates a power failure and a battery capacity decrease in 1/2. The input connection is 3-wirefire via a removable connector with a cross-section of the wires up to 2.5 mm

2 .

The source has integrated the following protection :

• Surgery/Purpal/thermal
• against short-circuit
• Against Battery Connection with the opposite polarity
• against excessive discharge

parameters:

• input voltage 230 V ~ 50 Hz
• Backup power supply 27.6 V (10 A) and +48 V (4 A)/280 W Total output power, PFC
• -30 ° C-+60 ° C, quick charging, temperature controlled charging
• LED, signaling power outage and battery capacity drop to 1/2
• manual restart
• copy: din
• standards: Electrical safety-STN EN 60950, EMC-STN EN 61000-3-2, STN EN 55022
