IMCO POWER LS130.H 2410, backup power supply 24V/10A, 280W

Backed source 280 W, 230V ~ 50Hz/27.6 V (10 A), PFC + LLC (ZVS), in the design for mounting on the DIN bar with pulse. Compensation of battery charging, 2 charging current levels, short-circuit protection, battery connection with opposite polarity.More information

Producer

IMCO POWER

Part No.

EV004914

Code

00073662

Warranty

36 Month

Availability

Partly

Availability in stores

Order

Your price exc. VAT

257.66 EUR exc. VAT

VAT

21%

Your price inc. VAT

311.76 EUR inc. VAT

Ask for a better price

IMCO POWER LS130.H 2410, backup power supply 24V/10A, 280W - components

	Count	Name	Code	Description	Availability
to 1 month	1pcs.	IMCO POWER LS130.HS 2410, backup power source 24V/10A, 280W, SNMP Provedení na DIN + SNMP 00073665	00073665	Backed source on DIN rail with an output of 280 W, 230V ~ 50Hz/27.6 V (10 A), PFC + LLC (ZVS), with SNMP + http, pulse. Compensation, automatic./manual. Capacity test, short circuit protection and battery connection with opposite polarity.	to 1 month
in stock	1pcs.	IMCO POWER LS130.H 24481004R, backup power supply 24V+48V (R), 280W Provedení na DIN, reverzní 00073663	00073663	Backed source 280W, 230V ~ 50Hz/+27.6V (10A), PFC +LLC (ZVS), with DC/DC converter +48V (4A), with DIN mount, pulse. compensating with battery charging, 2 charging current levels and short-circuit protection.	in stock
to 1 month	1pcs.	IMCO POWER LS130.HS 24481004R, backup power supply 24V+48V (R), 280W, SNMP Provedení na DIN + SNMP, reverzní 00073667	00073667	Backed source on DIN rail, with power 280 W, 230V ~ 50Hz/27.6 V (10 A), with DC/DC converter + 48V (4A), PFC + LLC (ZVS), SNMP + HTTP, TEP. comp. Battery charging, capacity test, short-circuit protection and battery connection with opposite polarity.	to 1 month
in stock	1pcs.	IMCO POWER LS130.H 4805, backup power supply 48V/5A, 280W Provedení na DIN 00073664	00073664	Backed source 280 W, 230V ~ 50Hz/55.2 V (5 A), PFC + LLC (ZVS), in design for mounting on DIN bar with pulse. Compensation of battery charging, short-circuit protection, battery connection with opposite polarity.	in stock
to 1 month	1pcs.	IMCO POWER LS130.HS 4805, backup power supply 48V/5A, 280W, SNMP Provedení na DIN + SNMP 00073668	00073668	Backed source for DIN rail, with output 280 W, 230V ~ 50Hz/55.2 V (5 A), PFC + LLC (ZVS), SNMP + HTTP, battery charging thermal compensation, capacity test, short circuit protection and battery connection with opposite polarity.	to 1 month
to 1 month	1pcs.	IMCO POWER LS130.HS 24481002, backup power source 24V+48V, 280W, SNMP Provedení na DIN + SNMP 00073666	00073666	Backed source on DIN rail, with power 280 W, 230V ~ 50Hz/27.6 V (10 A), with DC/DC converter-48V (2a), PFC + LLC (ZVS), SNMP + HTTP, TEP. Compensation Nab. Battery, capacity test, short-circuit protection and battery connection with opposite polarity.	to 1 month
to 1 month	1pcs.	IMCO POWER LS130.HS 25481004R LFP, backup source 24V+48V (R), 300W, SNMP, LiFePO4 battery Provedení na DIN + SNMP 00073765	00073765	Backed source 300W, 230V ~ 50Hz/+ 29.2V (10 A), PFC + LLC (ZVS), with DC/DC converter + 48V (4 A), with DIN rail, SNMP + HTTP, with capacity test, for use with LFP batteries (25.6V-8čl) and short circuit protection.	to 1 month
to 1 month	1pcs.	IMCO POWER LS130.HS 5105 LFP, backup power supply 55V/5A, 280W, SNMP, LiFePO4 battery Provedení na DIN se SNMP 00073767	00073767	Backup source on DIN rail with output 280 W, 230V ~ 50Hz/55.26 V (5 A), PFC + LLC (ZVS), with SNMP + http, pulse. Compensation, automatic./manual. Capacity test, short circuit protection and battery connection with opposite polarity.	to 1 month
in stock	1pcs.	IMCO POWER LS130.HS 1316 LFP, backup power source 12V/16A, 240W, SNMP, LiFePO4 battery Provedení na DIN + SNMP 00073513	00073513	Backed source on DIN rail with an output of 240 W, 230V ~ 50Hz/14.6 V (16 A), PFC + LLC (ZVS), with SNMP + http, heartbeat. Compensation, automatic./manual. Capacity test, short circuit protection and battery connection with opposite polarity.	in stock

Ask for a better price

Description

The LS130.H 2410 is provided at 24 (27.6) at the option to power the device with the current power of the source is 280 W . In the event of a network power failure, the connected battery ensures unloading the load power . After the power recovery, the source ensures the battery speed of the battery for its full capacity. The charging voltage is temperature-compensated.

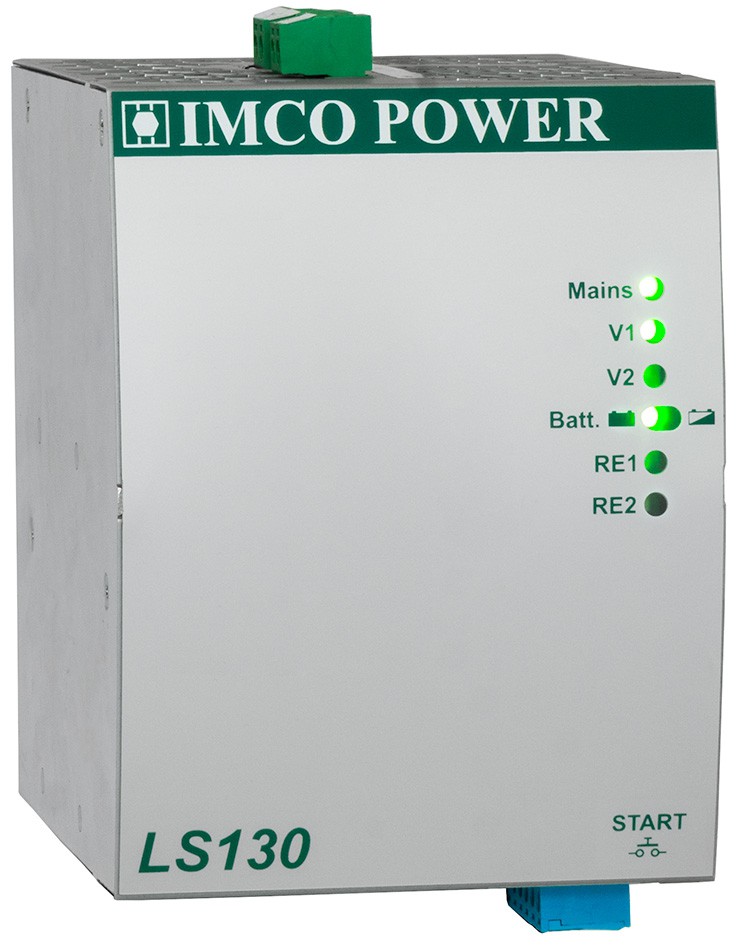

LEDs on the front panel signal the status of the output voltage, quick charging and battery status. The remote signaling indicates a power failure and a battery capacity decrease in 1/2. The source is designed for installation on din rail . The input connection is 3-wirefire via a removable connector with a cross-section of the wires up to 2.5 mm

2 .

The source has integrated the following protection :

Surgery/Purpal/thermal
against short-circuit
Against Battery Connection with the opposite polarity
against excessive discharge

parameters:

input voltage 230 V ~ 50 Hz
Backup power supply 27.6 V (10 A)/280 W Output power, PFC
-30 ° C-+60 ° C, quick charging, temperature controlled charging
LED, signaling power outage and battery capacity drop to 1/2
manual restart
copy: din
standards: Electrical safety-STN EN 60950, EMC-STN EN 61000-3-2, STN EN 55022

Parameters

Ethernet parameters
Battery charging current	2.5 A
DC Output Voltage (V)	27.6
DIN rail mounting	Yes
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED
Output Current (A)	10
Power consumption (W)	280
Properties	Start z baterie, Nabíjení baterie, 2 úrovně nabíjecího proudu, Tepelná ochrana, Ochrana proti zkratu
Recharge batteries	Yes
Remote signalling	Výpadek sítě, Kapacita AKU <1/2
SNMP	No
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	134
Design	DIN rail
Height (mm)	128
Odpojovač baterie (V)	21
Operating Temperature	-30° až +60°C
Weight (kg)	0.8
Width (mm)	60
Powering
PoE	No
Typ zdroje	Zálohovaný
