IMCO POWER LS110.JS 24481002, backup power source 24V+48V, 280W, SNMP

Backup power source The power battery is a high-level battery to the full capacity of the battery.

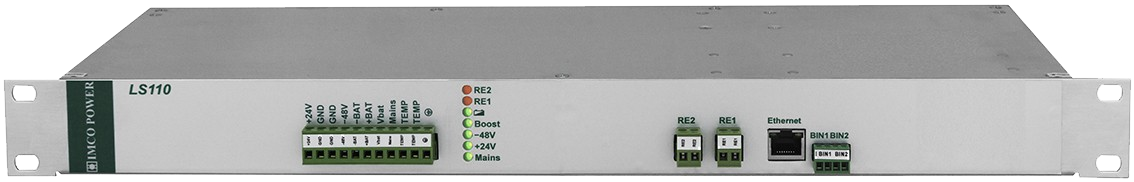

LEDs on the front panel signal the status of the network, output voltages, quick charging, battery status, condition of each relay. Remote signaling signals a power outage and a battery capacity drop to 50#i6per#. SNMP Self-based adapter allows you to control 2 independent relays that are programmed as Watchdog IP addresses with automatic restart or can be controlled manually. It is also possible to monitor 2 external binary conditions. The remotely carried out capacity battery test gives information and status and time of backup of the whole system with a real load.

The source is designed for installation to the 19"frame . Input connection is disconnected on the back of the source. Connecting the outputs of the source, relay, battery and signaling is through removable connectors with a cross-section of up to 2.5 mm2 on the front panel. grounding is also brought out by a separate grounding clamp on the back of the source.
Electric safety standards: STN EN 60950, EMC-STN EN 61000-3-2, STN EN 55022
