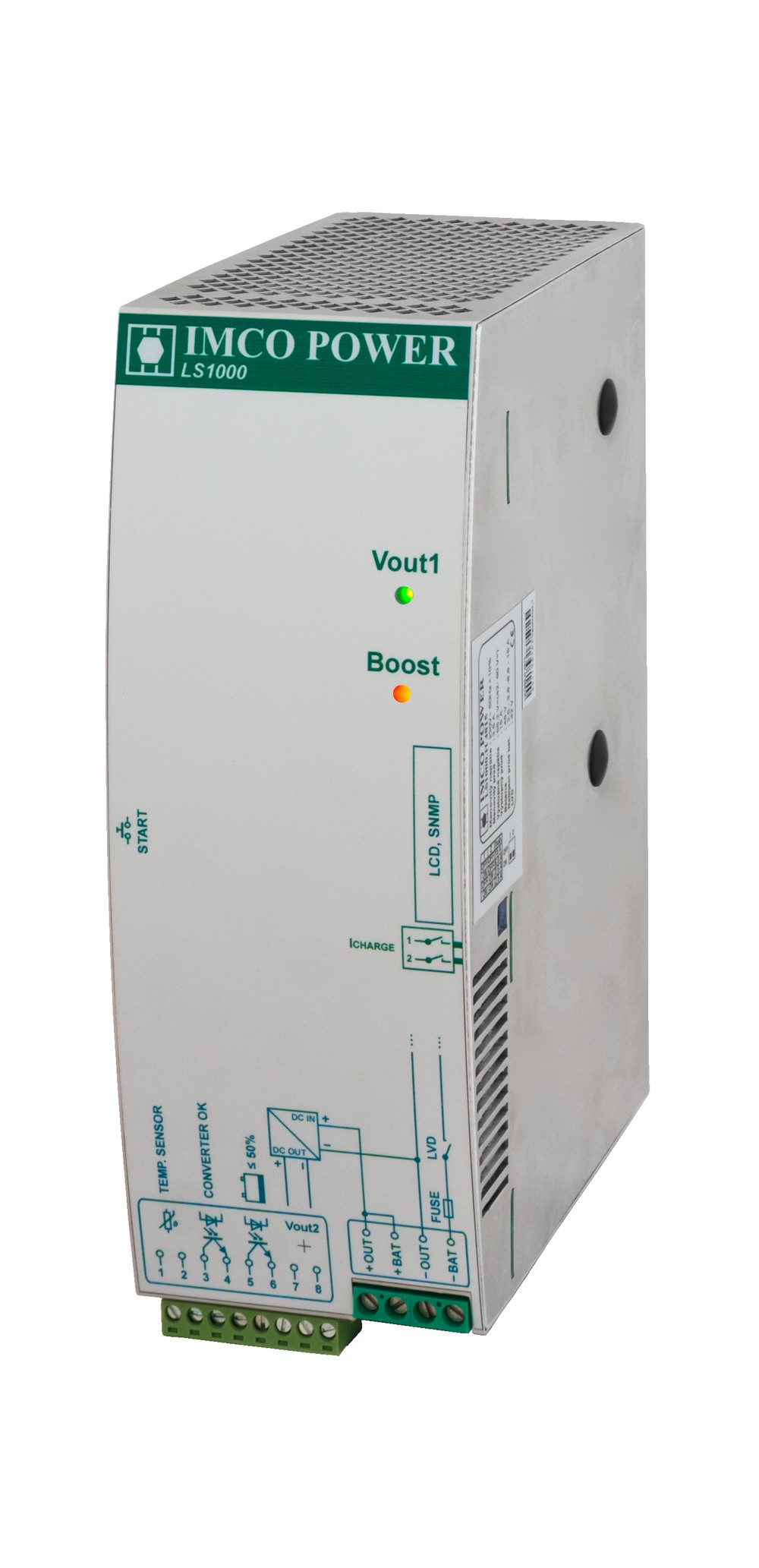

IMCO POWER LS1000.H, backup power supply 24/48 V, up to 900 W

Name: IMCO POWER LS1000.H, backup power supply 24/48 V, up to 900 W
Brand: IMCO POWER
SKU: 50050
Price: 638.26 EUR
Availability: OutOfStock

IMCO POWER LS1000.H backup power supplies series provide backed-up output 24V DC or 48V DC. Depending on the variant, the source can provide an output power of 750 / 900 W, either in one voltage level or some versions provide two output voltages.More information

Producer

IMCO POWER

Code

00070468

Warranty

36 Month

Your price exc. VAT

from 527.49 EUR exc. VAT

Your price inc. VAT

from 638.26 EUR inc. VAT

Select a variant

Availability

Availability in stores

Ask for a better price

IMCO POWER LS1000.H, backup power supply 24/48 V, up to 900 W - variants

	Count	Name	Code	Description	Availability	Your price exc. VAT	Your price inc. VAT
to 1 month	1pcs.	IMCO POWER LS1000.H 4815, backup power supply, 48V/15A 900 W 00070469 to 1 month Availability in stores	00070469	IMCO POWER LS1000.H 4815 provides backed-up output 48V (55,2V) DC. The total output power of the power supply is 900W, which allows to power energy-intensive devices, while maintaining compact dimensions and easy mounting on a DIN rail.	to 1 month	427.42 EUR 517.18 EUR inc. VAT	517.18 EUR	Add to cart
to 1 month	1pcs.	IMCO POWER LS1000.H 2425, backup power supply, 24V/25A 7520 W 00070470 to 1 month Availability in stores	00070470	IMCO POWER LS1000.H 2425 provides backed-up output 24V (27,6V) DC. The total output power of the power supply is 750W, which allows to power even energy-intensive devices, while maintaining compact dimensions and easy mounting on a DIN rail.	to 1 month	436.90 EUR 528.64 EUR inc. VAT	528.64 EUR	Add to cart
not in stock	1pcs.	IMCO POWER LS1000.H 24482503, backup source, 24V+48V 750 W 00071787 not in stock Availability in stores	00071787	The backup power supply LS1000.H 24482503 is used for backup power supply 24 V (27,6 V) and 48 V DC . The total output power of the power supply is 750W. The source has two output voltages where both levels are galvanically separated.	not in stock	491.25 EUR 594.41 EUR inc. VAT	594.41 EUR	Add to cart
in stock	1pcs.	IMCO POWER LS1000.H 48241509, backup source, 24V+48V 900 W 00071788 in stock Availability in stores	00071788	The backup power supply LS1000.H 48241509 is used for backup power supply 48 V (55,2 V) and 24 V DC . The total output power of the power supply is 900W. The source has two output voltages where both levels are galvanically separated.	in stock	587.19 EUR 710.50 EUR inc. VAT	710.50 EUR	Add to cart

Ask for a better price

Description

IMCO POWER LS1000.H backup power supplies series provide backed-up output 24V DC or 48V DC. Depending on the variant, the source can provide an output power of 750 / 900 W, either in one voltage level or some versions provide two output voltages, where both outputs are galvanically isolated. In the event of a power outage connected battery ensures uninterrupted power supply of connected devices. When the battery capacity drops to a critical level, the source ensures correct disconnection of batteries. When AC power delivery is restored the power source will automatically charge batteries to full capacity.

Charging voltage is temperature compensated with ability to set 4 levels of battery charging current . When replacing the batteries, it is possible to start the power supply manually even without the AC power supply connected. There is also option to connect an external display to display status information.

The power supply is designed for mounting on a DIN rail. The input connection is 3-wire via a removable connector with a wire cross-section of up to 2.5 mm². The connection of outputs, battery and signaling of the source is via a removable connector with a cross-section of wires up to 2.5 mm².

Parameters

Input voltage	230 V, 50 Hz
Output voltage	By variant - 24V / 48V / combination
Output power	750/900 W
Effectiveness	92%
Battery charging current	4 levels (2.5 A to 25 A)
Battery discharge protection	Yes
Operating temperature	-25 °C to 50 °C
Cooling	Active, temperature controlled fan
Local signalization	LED
Thermal protection	85 °C
Dimensions W x H x D	80 x 229 x 160 mm
Weight	1.8 kg
Ingress protection	IP20

Parameters

Ethernet parameters
Battery charging current	2.5 A, 3.6 A, 6.8 A, 25 A
DC Output Voltage (V)	24, 48, 27.6, 55.2
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED
Output Current (A)	3, 15, 25, 9
Power consumption (W)	750, 900
Remote signalling	Výpadek zdroje, V bat <23/46V
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	160
Design	DIN rail
Efficiency (%)	92
Height (mm)	229
Odpojovač baterie (V)	21, 42
Operating Temperature	-25°C až +50°C
Weight (kg)	1.8, 1.9
Width (mm)	80
Powering
PoE	No
Typ zdroje	Zálohovaný
