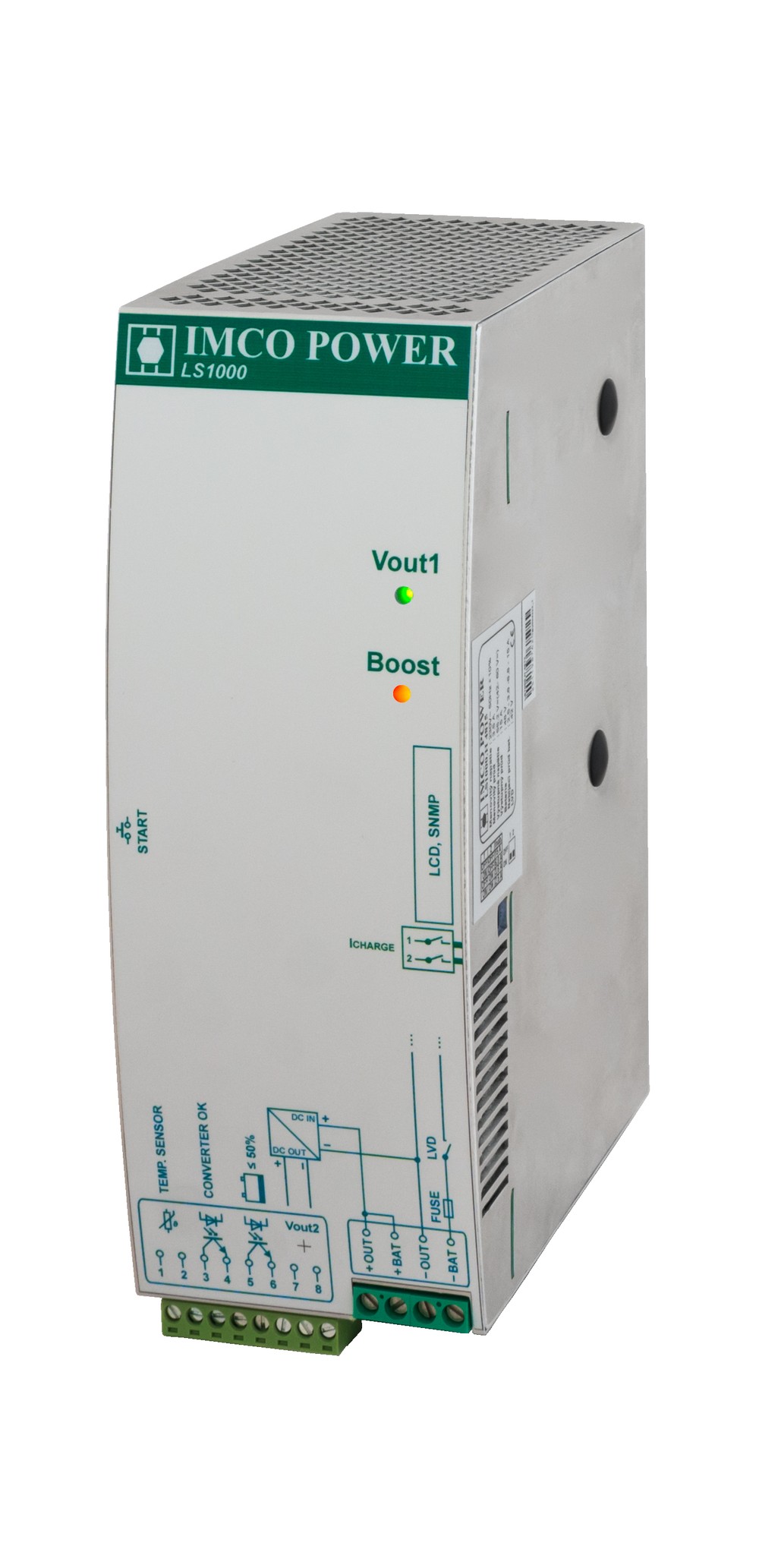

IMCO POWER LS1000.H 4815, backup power supply, 48V/15A

IMCO POWER LS1000.H backup power supply provides backed-up output 48V (55,2V) DC. The total output power of the power supply is 900W , which allows to power even energy-intensive devices, while maintaining compact dimensions and easy mounting on a DIN rail. In the event of a power outage connected battery ensures uninterrupted power supply of connected devices. When the battery capacity drops to a critical level, the source ensures correct disconnection of batteries. When AC power delivery is restored the power source will automatically charge batteries to full capacity.

Charging voltage is temperature compensated with ability to set 4 levels of battery charging current . When replacing the batteries, it is possible to start the power supply manually even without the AC power supply connected. There is also option to connect an external display to display status information.

The power supply is designed for mounting on a DIN rail. The input connection is 3-wire via a removable connector with a wire cross-section of up to 2.5 mm². The connection of outputs, battery and signaling of the source is via a removable connector with a cross-section of wires up to 2.5 mm².
