IMCO POWER IC3000.T, mains power supply, up to 5400W

Surface sources of the IC3000 series are used to power the device or charge batteries with galvanically separate voltage. Sources are produced in voltage ranks 12 V, 24 V, 48 (60 V), 110 (108) V and 220 (216) V. The source consists of two to three module converters working in parallel. In the case of larger source sets, the IC3000 modules can be switched in parallel . Using a control element located on the front panel, a fine appearance of the output voltage is possible. VA characteristics of the source is IU-constant voltage with current limitation. In case of failure (disconnection) of the source, separate semiconductor switch disconnects the output.

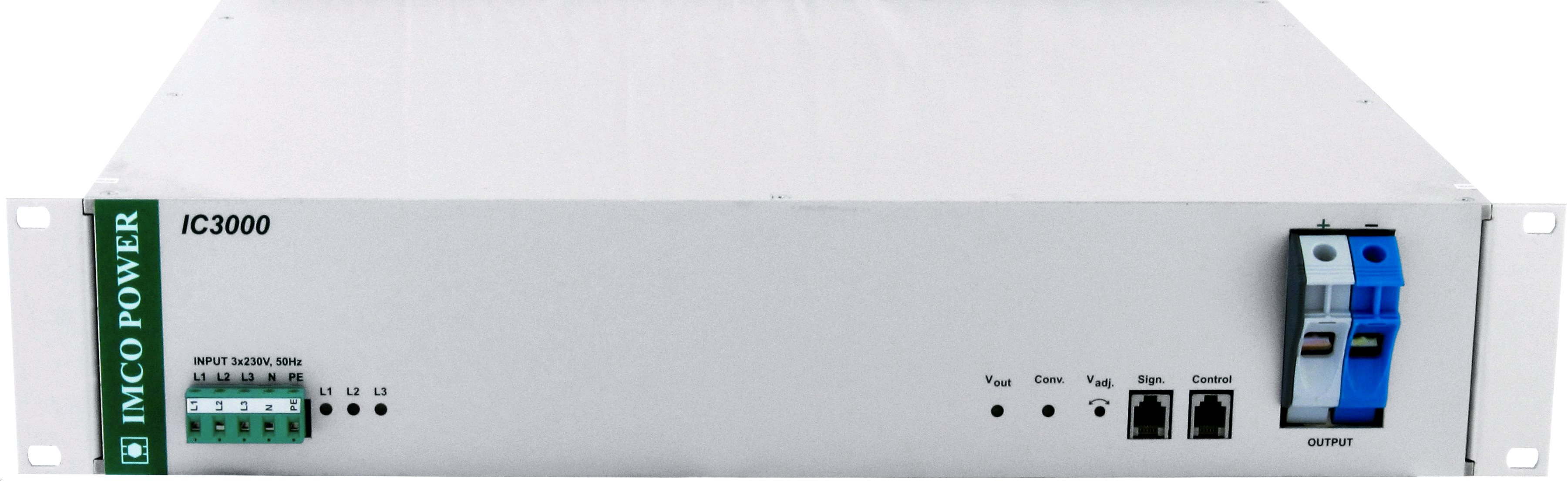

The IC3000 is seagull 19"with 2U height (88 mm).
The output power of the source is according to the type from 2000W to 5400 W . For the needs of higher performance, sources can be shifted in parallel. Sources through LEDs indicate the presence of input power (each phase separately), the presence of the output voltage (tolerance control-nominally ± 20#i6per#) and the outage of any of the inverters. Remote signaling operating and failure states is realized through its free switching contacts relay via the"sign." They are signaled: the presence of the output voltage (tolerance control-nominally ± 20#i6per#) and the drive that of the inverter. The IC3000 source can be connected to the control and PSMS control system . Through this connector it is possible to control the output voltage of the source, block the source and the list of the state of the source (menic OK /ERR).


Example IC3000.D (t) Y1z1, where:
