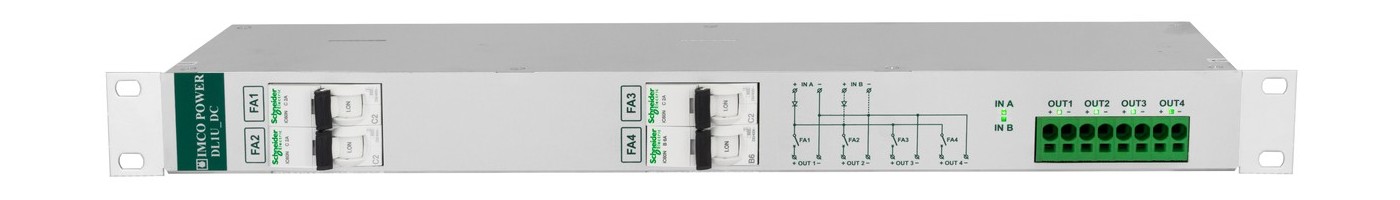

IMCO POWER DL1U.Q 16s4i_NMOS, power strip

A unique DC power strip that contains two independent branches, each of which allows you to combine 2x DC inputs into one output . This makes it possible to include 2 power supplies in parallel in each branch without the risk of damaging the connected equipment or your own power supplies. By using MOSFET technology, power dissipation is minimized.

• Each of the two branches: 2x 18-60V / 16A input, 1x output
• Signaling - 3x LEDs on each input / output, each branch different LED color
• Input: 2x 6mm ² terminals on the rear panel for each branch
• Output: 1x 6mm ² terminals on the front panel for each branch
• Input protection: 1x 6A + 1x 2A on branch A, 2x 2A on branch B
• Dimensions / weight: 436x45x90mm (19" / 1U) / 1.3kg
