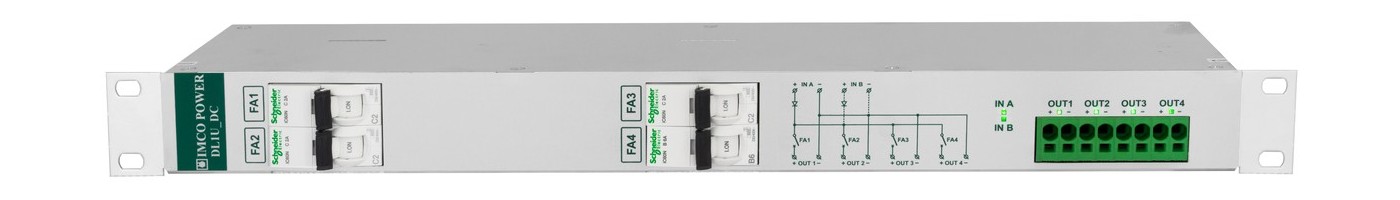

IMCO POWER DL1U.D 12s4i_NMOS, power strip

A unique DC power strip that allows you to combine 2x DC inputs up to 4 outputs . This makes it possible to connect any power supplies in parallel without the risk of damaging the connected equipment or your own power supplies, and to connect up to 4 independently protected technologies. By using MOSFET technology, power dissipation is minimized.

• 2x input 18-60V / 16A
• 4x output (1x 6A, 3x 2A)
• Signaling - 6x LEDs on each input / output
• Input: 2x 6mm ² terminals on the back panel
• Output: 4x 6mm ² terminals on the front panel
• Dimensions / weight: 436x45x90mm (19" / 1U) / 1.2kg
