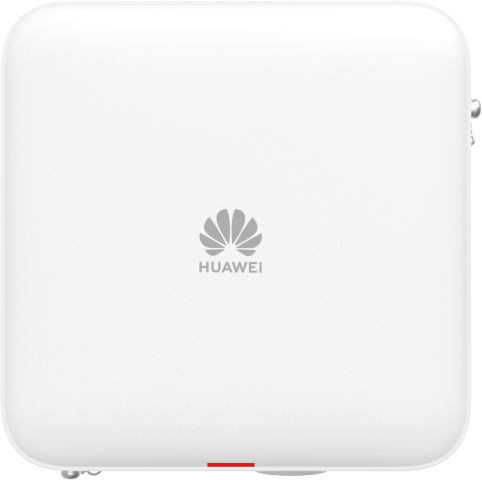

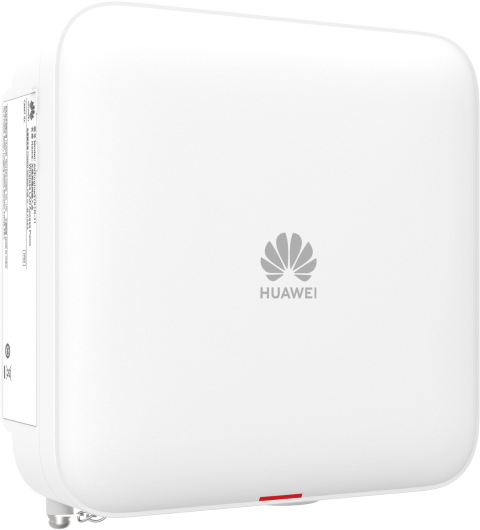

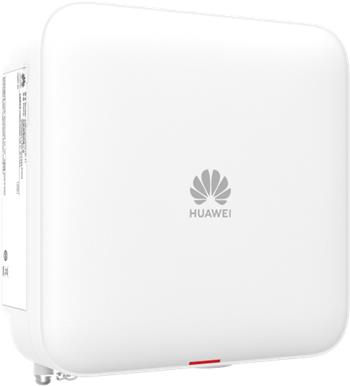

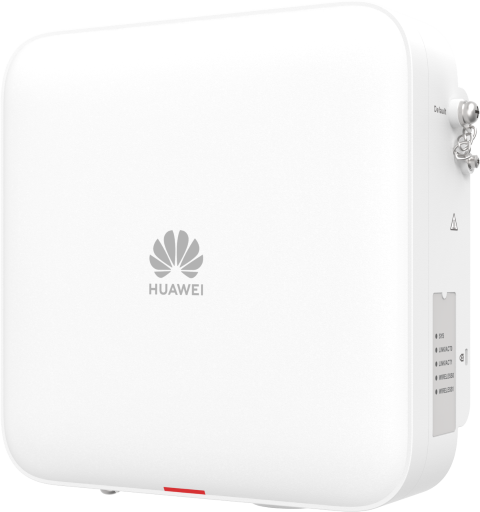

Huawei AirEngine 5761R-11, outdoor sector AP, WiFi 6, official CZ distribution

The outdoor sector access point Huawei Airengine 5761R-11 supports the latest WiFi 6 standard, uses the frequency band 2.4 and 5 GHz and has 2x2: 2 MU-MUMO . This offers a total permeability up to 1,775 Gbps . The AP is fitted with built-in sectors with an asymmetric radiation angle (2.4GHz horizontally 65 ° and vertically 40 °, 5 GHz horizontally 65 ° and vertically 20 °). Power is possible using POE (802.3AT /AF).

Thanks to the cloud platform Huawei for network management, the management of access points and services is simplified and the cost of operating and maintenance of the network (O\u0026M) is reduced. Access points can also be managed by a local controller, such as the Huawei AC6508.

• Standard WiFi 6 (802.11AX)
• Security support WPA3
• band support 2.4 and 5 GHz with a speed of up to 575 MB/s, respectively. 1.2 Gbps

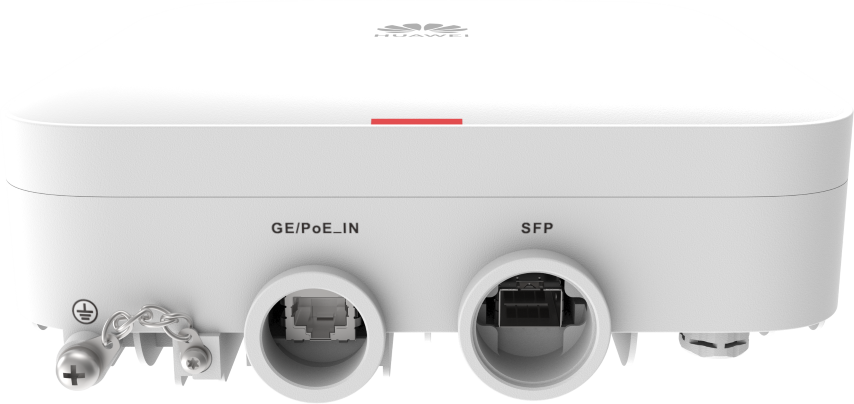

• 1 x GE port including Poe-in, 1x SFP
• built-in sectoral antennas with asymmetric radiation angle
• O &M based on Bluetooth serial interface via built-in Bluetooth and cloudcampus app
• Working modes FAT, FIT and Cloud

cloud administration
The Airengine 5761R-11 access point can be managed via the cloud, where there is no need to deploy a WLAN controller. In the cloud mode of management, the system offers a system of rich authentication functions such as authentication using a pre-key key (PSK), authentication using CAPTIVE portal, can be implemented by SMS and or social media . This regime significantly simplifies network work and reduces capital expenditure (CAPEX).

In addition, many advanced features such as online network planning, zero-touch deployment and cloud o &m can be implemented through the cloud. When used by Huawei cloud, all APs can be configured forward, and then just turn on the AP at the installation site, scrape the QR code and connect to the network, which greatly shortens the network of deployment. The cloud platform can monitor the status of the network, the status of the device and the status of users of all locations-and thus in a comprehensive and intuitive way to determine the status of the network and services in real time.


More Parameters:

name	value
Operational modes:	FAT AP, FIT AP and Cloud AP
WiFi Standards:	WIFI 6 (802.11AX)
Secure:	WEP/WPA/WPA2/WPA3
Frequency range 2.4 GHz:	2412 ~ 2472 MHz
Frequency range 5 GHz:	5180 ~ 5825 MHz
Anthrity profit:	10 DBI (2.4 GHz), 11 dBi (5 GHz)
Power transmitted:	up to 28 dBm, TX Beamforming (TXBF)
Radio Chains/Spatial Stream:	2 × 2: 2
Max. throughput:	575 MBPS (2.4 GHz) and 1,200 Mbps (5 GHz)
Number of SSID for each radio:	16
Number of clients for each radio:	512
Ethernet interface:	1x GE RJ45, including PoE-in, 1x SFP
Maximum power consumption:	17.7 W
Operating temperature:	-40 ° C ~ 65 ° C
Weight:	1910 G
Dimensions (W x H x H):	69 x 200 x 200 mm
