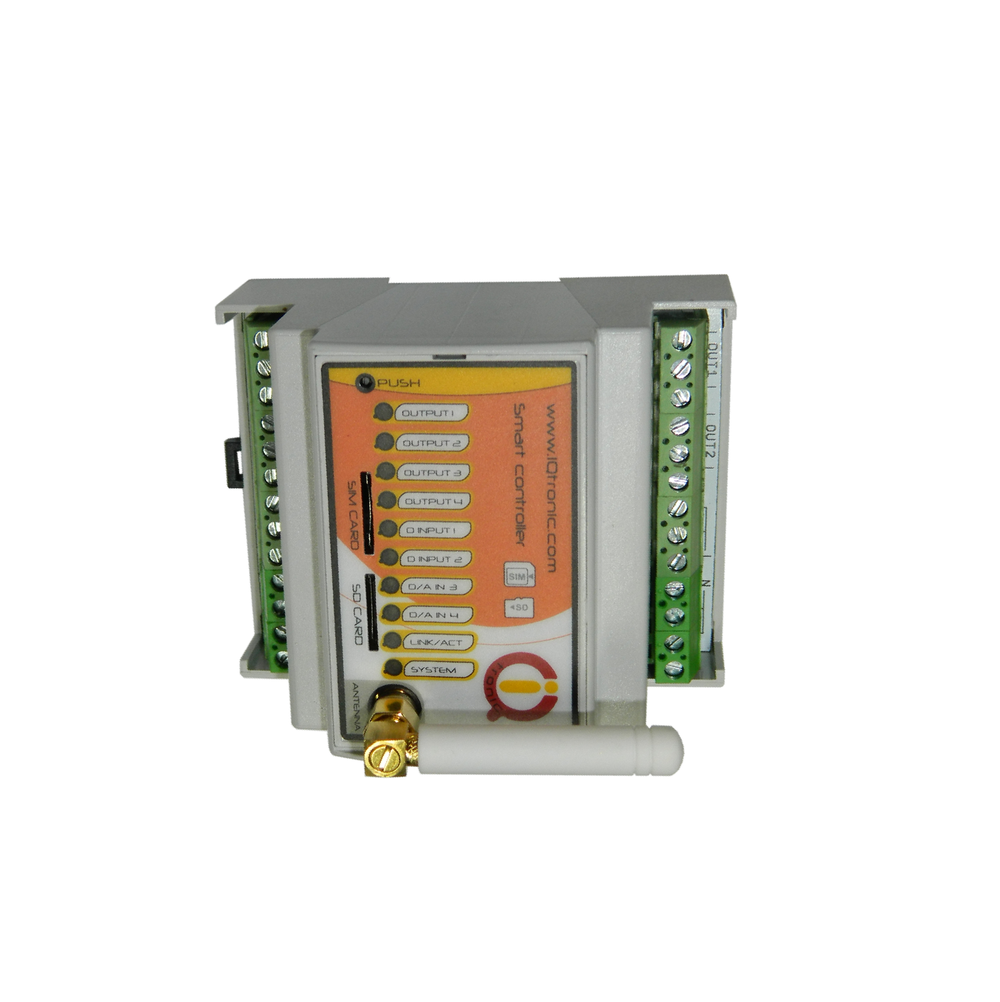

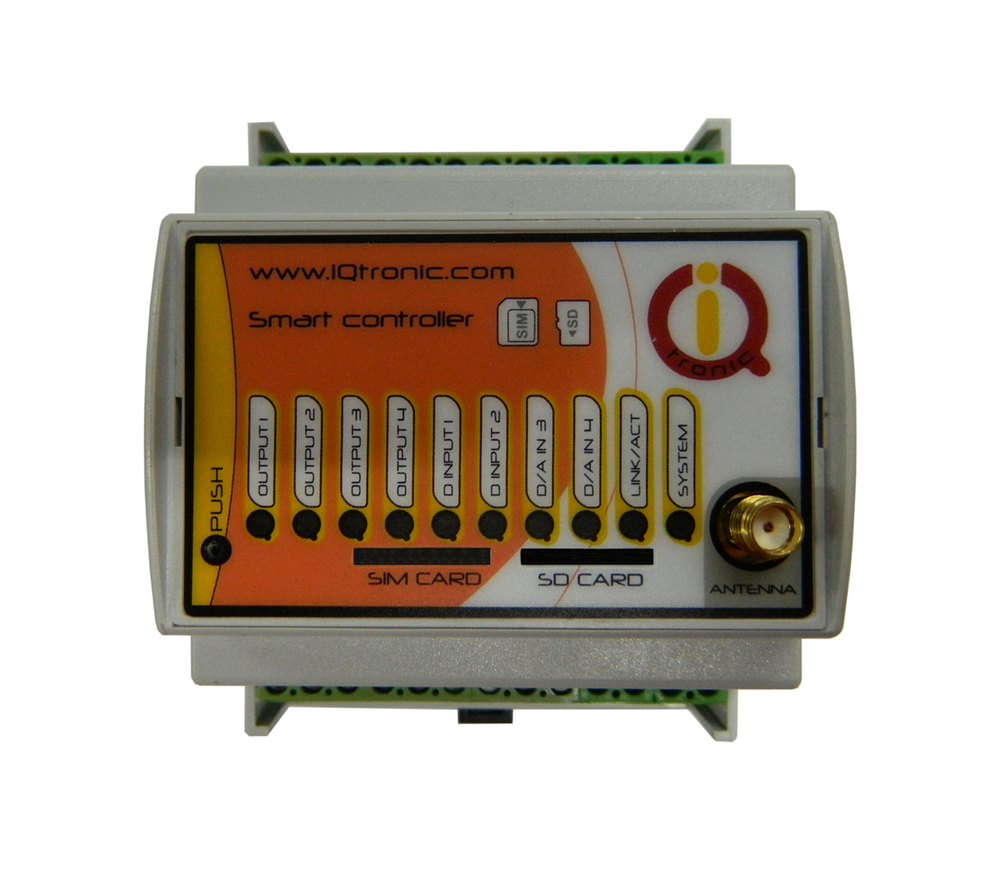

GSM Intelligent DIN rail switch IQ Socket IQTD GS440

 IQTronic GS440 is a sophisticated device used to control four independent outputs, which can be used to control appliances via SMS and/or phone ringing. DC outputs support PWM control. It is also possible to control the terminal via bluetooth and using voice self-service. It is equipped with four digital inputs compatible with S0, two analog inputs for voltage monitoring and one input for connecting up to 8 temperature/humidity/pressure sensors. It has almost 200 SMS commands. The output of the device are two independent NO outputs 230V with a maximum current load of 16A - resistive load and two DC outputs 5A/40V with PWM option.


Parameters:

• Turning appliances on and off using SMS and ringing: 230V, 16A
• Turning on automatically using the scheduler or at a selectable time
• Automatic power outage and power surge notification
• Possibility of installing a backup battery (not included)
• Input status monitoring: A/D - fence monitoring, LOG1/LOG0 levels, or S0 pulses - electricity meters, etc., temperature and humidity
• Thermostat function
• Alarm function: temperature, humidity, A/D, or LOG1/LOG0 changes
• GSM signal interference alarm: jamming
• 12 alarm numbers, each can be set to a different event
• Time planner function, up to 50 actions
• Automatic logging of all events to internal memory
• Detailed logging of all events on the inserted SD card with FAT32
• Voice self-service, also user selectable
• Configuration via bluetooth with highly professional handling of the terminal with intuitive control
• Possibility to change any text command and response
• Configuration upload/portability, event LOG file download option
• Option to upload user numbers from an external file
• Option to update device FW
• Possibility to change permissions of SMS commands
• Possibility of control from Internet gateways
• GPRS sending SMS status using TCP/UDP protocol
• Highly sophisticated integrated navigation HELP
• Possibility of control using the ANDROID application and WINDOWS using the terminal also via   BLUETOOTH
• External connector for antenna connection
• Possibility of inserting multiple commands in one SMS (up to 160 characters)
• Ability to perform 2 different actions on incoming calls

And what are the extra features compared to the older model GS400?

• Integrated overvoltage protection on the AC input
• Two independent AC and DC power options (also simultaneously) with  options for alarm generation and PLC
• 2 administration passwords and up to 1000 user numbers
• Extended battery management, you have an overview of everything in LONGSTATUS
• M2M, the device can send the status of the device to the cloud, either its own or e.g. Thingspeak.com - 8 sensors for free. Downloaded  file  XMl from the set URL  can change device outputs, reset counters
• Improved scheduler, it is possible to set both a time interval and a specific start minute
• Alarm conditions can activate M2M
• Possibility of time blocking of outputs - suitable, for example, for a doorman
• PWM outputs  they can also be controlled using the limit values ??of the connected sensors
• Each output can be controlled manually, SMS, BT, thermostat, scheduler and PLC
• Simple PLC,  with which you create time-delayed relays, FLIP/FLOPs, and many other applications
