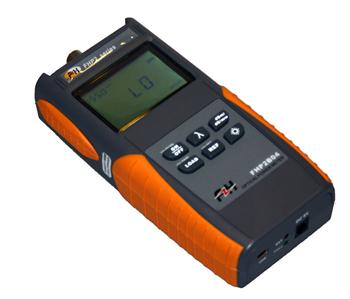

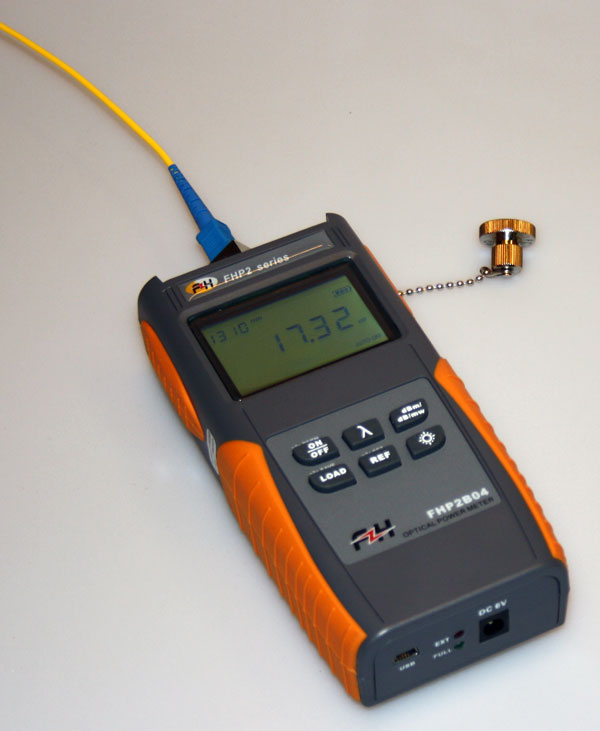

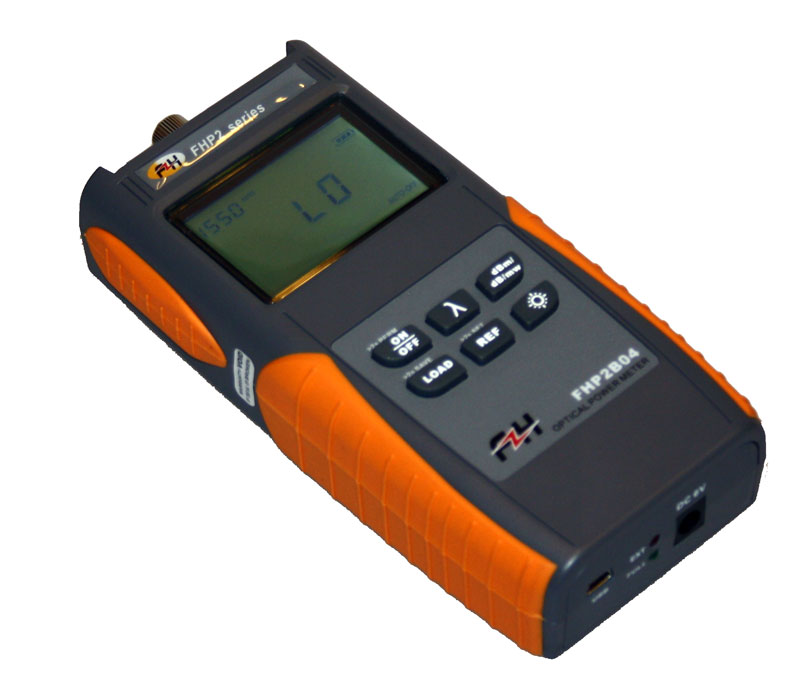

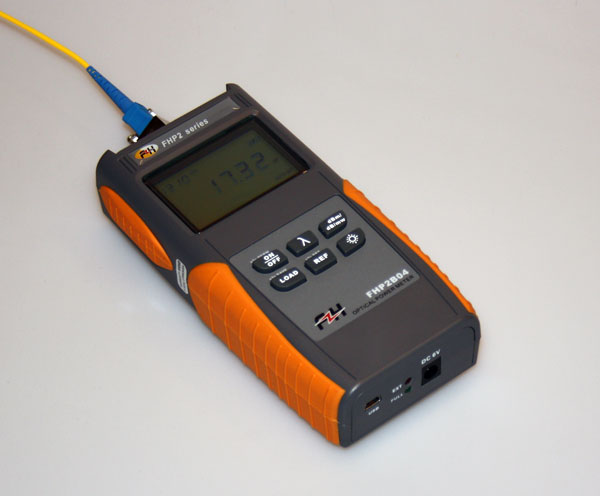

Grandway FHP2B04 Optical Power Meter

Name: Grandway FHP2B04 Optical Power Meter
Brand: Grandway
SKU: 2789
Price: 224.10 EUR
Availability: InStock

Optical Power Meter FHP2B04 to identify optical fiber, attenuation measurement, continuity control and transmission quality assessment.More information

Producer

Grandway

Part No.

FHP2B04

Code

00013697

Warranty

12 Month

Availability

Availability in stores

Order

Your price exc. VAT

185.21 EUR exc. VAT

VAT

21%

Your price inc. VAT

224.10 EUR inc. VAT

Ask for a better price

Description

Optical Power Meter FHP2B04

in laboratory situations as in optical networks are used to identify optical fiber, measurement measurement, continuity control and assessment of transmission quality.

Automatic detection of wavelength

The unit transmits in the encoded digital protocol that identifies the wavelength. This enables the appropriate calibration of the power meter. This feature reduces the need for communication between 2 techniques and reduces the risk of potential errors

saving output data

The device supports the connection to the PC using the USB port and the enclosed software can easily save the output data to TXT, XLS, or print.

properties:

memory 999 items

backlit display for easy control

Replaceable attachments for connecting different optical connectors (ST/SC/LC)

power supply from net+/battery

high accuracy and stability

Auto-shutdown function (energy saving when working in the field)

Low consumption

Specifications:

Calibrace wavelength (nm):

Type of detector:

accuracy:

± 5#i6per#± 10nw

resolution:

0.01db@-40 to +26dbm; 0.1db@-50 to-40dbm

backlight

yes

reference value

yes

measuring range (dbm):

-50-+26

USB interface

yes

surgical temperature:

-10-50 ° C

Storage temperature:

-20-70 ° C

power: 2x Ni-MH AA (2500mAh)

dimensions (mm):

160 x 76 x 45

weight:

270g

Parameters

Physical parameters
Accuracy	±0.2dB±1nW;
Backlight	Ano
Connector	FC/PC,SC/PC,ST/PC
Dimensions (mm)	160 x 76 x 45
Internal memory	Ano
Measuring range	-50 to +26@1550nm
Measuring range (dBm)	-50 až 26
Power	2x NiMH AA, 6V AC/DC adaptér
Reference value	Ano
Resolution	0,01dB
Storage temperature	-20 to +70?
Support PC connectivity and data storage	Yes
Tone detection	Ano
Turn off automatically	Ano
USB interface	Ano
Wavelength (nm)	850/1300/1310/1490/1550/1625
Wavelength recognition	Ano
Operating Temperature	-10° až +50°C
Weight (kg)	0.27

All parameters Less parameters
