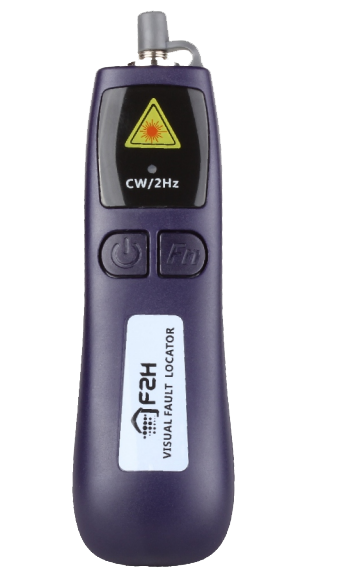

Grandway F2H VLS-8-1 Series Mini Visual Laser Source

Name: Grandway F2H VLS-8-1 Series Mini Visual Laser Source
Brand: Grandway
SKU: 13249
Price: 64.52 EUR
Availability: InStock

A source of visible light with 1 MW outputMore information

Producer

Grandway

Part No.

VLS-8-1

Code

00018566

Warranty

12 Month

Availability

Availability in stores

Order

Your price exc. VAT

53.32 EUR exc. VAT

VAT

21%

Your price inc. VAT

64.52 EUR inc. VAT

Ask for a better price

Description

The latest series of mini visible light sources Grandway F2H VLS-8 provides a large selection in the broadcasting power of laser resources and a very interesting price range.

It is a compact device, easy to use, with the indication of operation.

Visual laser is usually used to control damaged or broken optical fibers, patchcords and pigtails"view". Visual locator can be used for SM and mm fibers.

Lasers' performance may vary slightly according to the types of protection and type of fiber.

Parameters

Features:

Type:

VLS-8-1

Laser class:

Class IIIa

Laser output:

? 1mw

Orientation Range:

5 km

Orientation battery life:

36 hours

Laser type:

wavelength:

650 nm ± 10nm

modulation frequency:

cw/2Hz

Power:

2x AAA batteries

operating conditions:

-10 ° C-50 ° C; <90#i6per#rh

Storage Conditions:

-20 ° C-70 ° C

Package content:

2x AAA batteries, user manual

Dimensions:

120 x 33 x 30 mm

Weight:

67,8G

Physical parameters
Dimensions (mm)	120x33x30
Laser type	LD
Model	VLS-8-1
Modulation frequency	2 Hz
Optical fibre type	SM/MM
Output Power - Uplink (dBm)	1mW
Output power (mW)	1
Power	2x AAA baerie
Safety class	Class IIIA
Storage temperature	-20°C - 70°C
Wavelength (nm)	650± 10nm
Operating Temperature	-10° až +50°C
Weight (kg)	0.067
