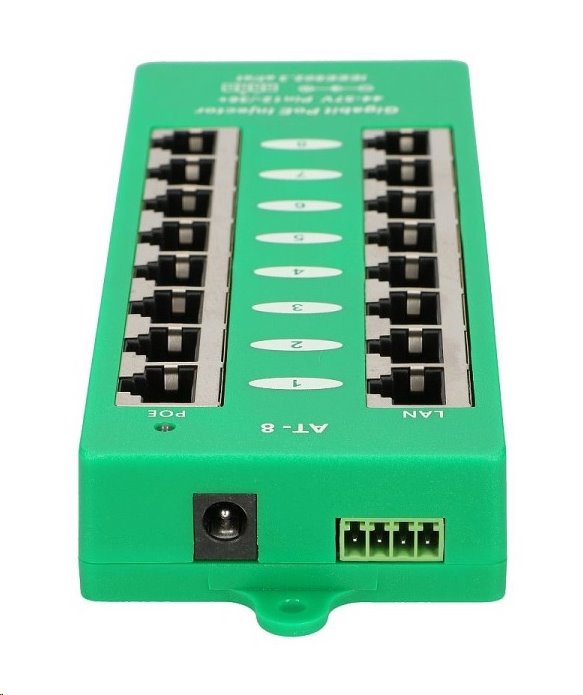

Gigabit shielded 8-port PoE panel, 802.3af/at

The panel integrating eight gigabit poe injectors with a 44-57 V power range and a maximum current of 550 ma/port with standard 802.3af/at .

Universal solution for remote power supply of more active elements with integrated extractor after UTP cabling.

Power input via standard power supply 2.1 mm jack .

Adding this passage panel to the switchboard to get a power center that you can easily connect between the existing switch and the patchpanel, which already leads to a powered device (IP camera, IP telephone, wireless elements, etc.).

Power pairs: 3.6 (positive pole)/1.2 (negative pole)

interface:

8x shielded RJ45 connector to connect to LAN (data)

8x shielded RJ45 connector for merged output (data+power supply)

LED signaling:

Power Off-No signaling

4/5 (V+), 7/8 (V-)-Green

4/5 (V-), 7/8 (V+)-red

Power supply is not included in the delivery, choice and power parameters of the source must be optimized according to the appropriate collection of the powered elements and their configuration.

parameters:

name	value
input:	44-57 in DC 2.1 mm
Output:	44-57 V (max. 550 ma on port)
Data:	1/2 &3/6 &4/5 &7/8
Data in:	Connects PC/HUB/Switch
Weight[g]:	200
Dimensions[mm]:	180 × 62 × 25
Ethernet:	TIA/EIA 568 CAT. 5
Data Rate:	10/100/1000MBPS
Norma Poe:	802.3AF/AT
Connector type:	rj-45
operating temperature range:	0 ° C ~ +50 ° C
moisture (operation.):	10# i6per# ~ 80# i6per# rh
