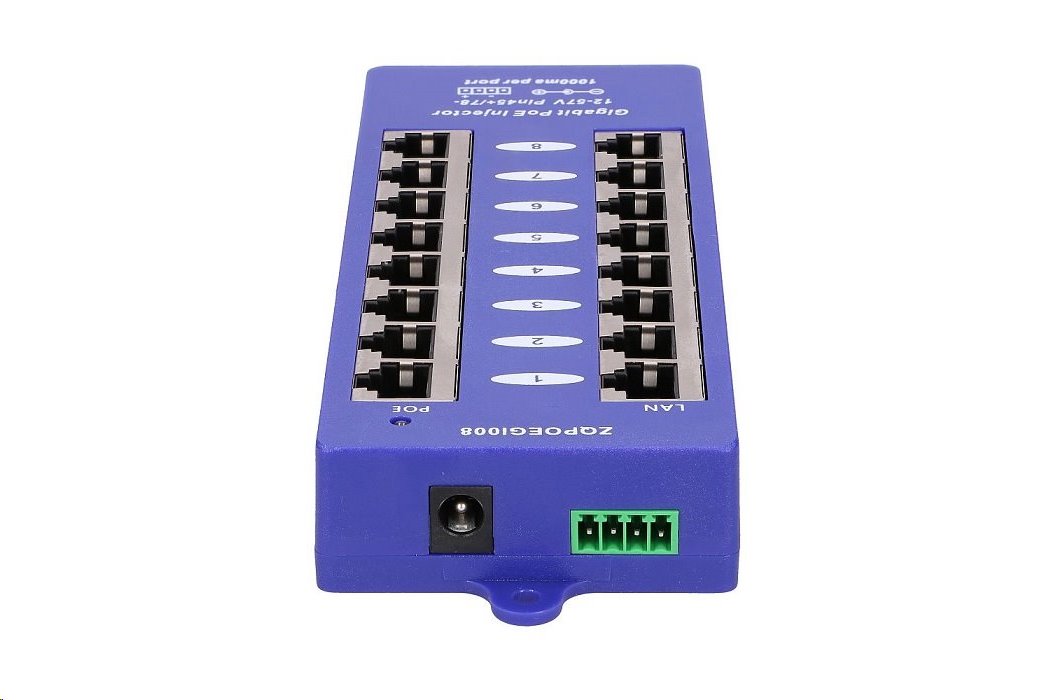

Gigabit shielded 8-port passive PoE panel

The panel integrating eight gigabit passive POE injectors with 12-57 V power range and max. 1000 ma/port .

Universal solution for remote power supply of more active elements with integrated extractor after UTP cabling.

Power supply input via standard 2.1mm jack power supply or through a panel connector with terminal block.

Adding this passage panel to the switchboard to get a power center that you can easily connect between the existing switch and the patchpanel, which already leads to a powered device (IP camera, IP telephone, wireless elements, etc.).

Two unused ethernet cable pairs are used to power.
Power pairs: 4.5 (positive pole)/7.8 (negative pole)

interface:

8x shielded RJ45 connector to connect to LAN (data)

8x shielded RJ45 connector for merged output (data+power supply)

LED signaling:

Power Off-No signaling

4/5 (V+), 7/8 (V-)-Green

4/5 (V-), 7/8 (V+)-red

Power supply is not included in the delivery, choice and power parameters of the source must be optimized according to the appropriate collection of the powered elements and their configuration.

parameters:

name	value
input:	12-57V DC 2.1mm/Phoenix DC Connector
Output:	12-57V (max 1a per port)
Data:	1/2 &3/6 &4/5 &7/8
Power:	4/5 &7/8
Data in:	Connects PC/HUB/Switch
Weight[g]:	160
Dimensions[mm]:	180 × 60 × 25
Ethernet:	TIA/EIA 568 CAT. 5
Data Rate:	10/100/1000MBPS
Connector type:	rj-45
operating temperature range:	0 ° C ~ +40 ° C
moisture (operation.):	10# i6per# ~ 80# i6per# rh
