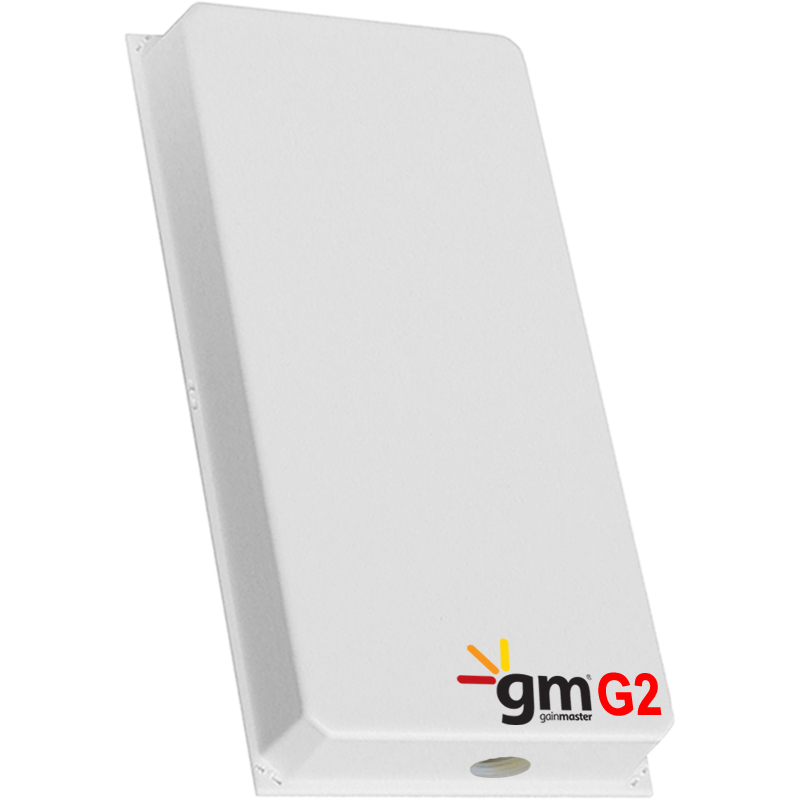

G2 GainMaster, outdoor client unit for 5GHz band, 2x ant. Jirous

The G2 configuration is through a web interface that is clear and easy to understand. Here are some innovative features. For all of them, we can set up and save 3 profiles-master, backup1, backup2. &Nbsp; You can also switch   in a situation where a connection to AP is lost.   Another great feature is the easy focusing of the antenna using graphical signal strength indicators with memorizing the best value. The cake pearl is a bilingual version-you can switch between CJ and ANJ and help with each function.

The unit is powered by an Ethernet cable (RJ45) with POE technology and can be powered over long distances. This is especially convenient if you need to mount the unit on the roof or where it is not near the electrical outlet. The mounting and mounting of the unit are as simple as possible and offer quick and convenient mounting in almost all conditions.

In the"Files" section, you can find a manual for the drive. &Nbsp;

Package included power supply adapter 12V, passive PoE and mast holder .

Detailed Features:

• frequency range: 5.18GHz ~ 5.825GHz
• standards: IEEE 802.11a, IEEE 802.11a/n (mixed mode)
• transmission power: 802.11a: 20 ± 2dBm @ 54Mbps, 23 ± 2dBm @ 6Mbps/802.11a/n (mixed mode): 18 ± 2 dBM
• power control 17 dBmW, 23 dBmW-38 dBmW (at 1 dB)

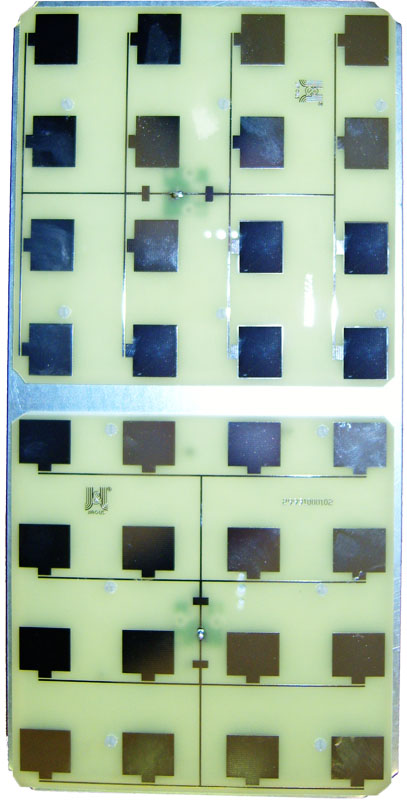

Integrated antenna:

• pre-recovery ratio     greater than   30 dB
• side lobe suppression     greater than   17 dB
• radiation angle   20 ° x 20 °
• Antenna gain 17.2 dBi ± 0.5

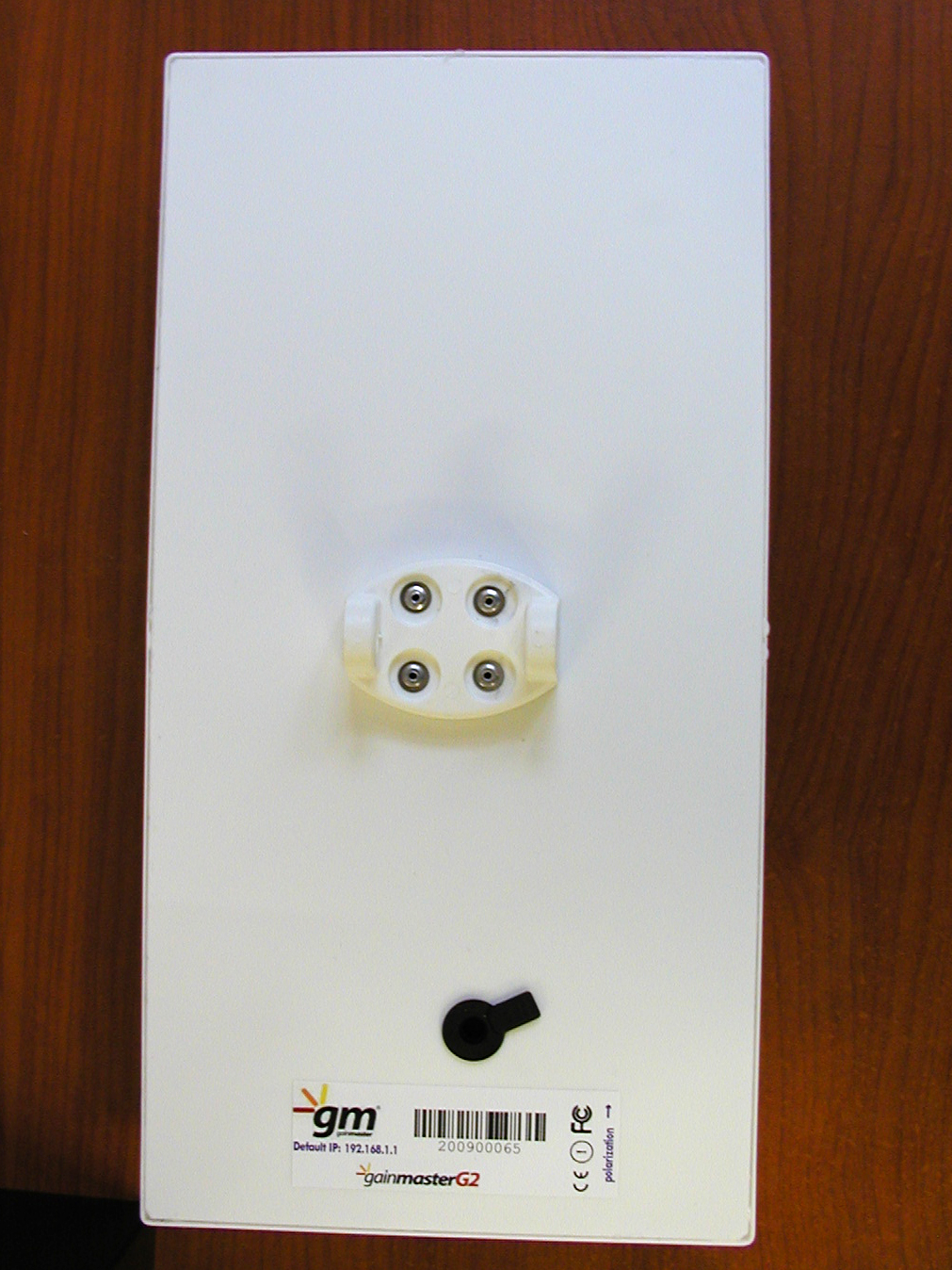

• fitting the jig-on the mast

Drive access data:

IP address 192.168.1.1 , the DHCP server is set by default-ie, the address picking on the computer must be set to"automatically"
