Ericsson MINI-LINK PT 6020 80 GHz, 1000-AS 0.3 or 60 cm

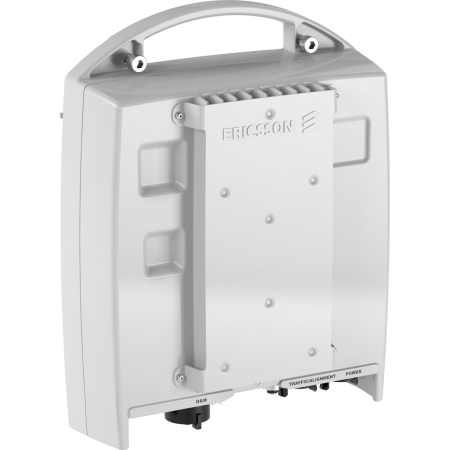

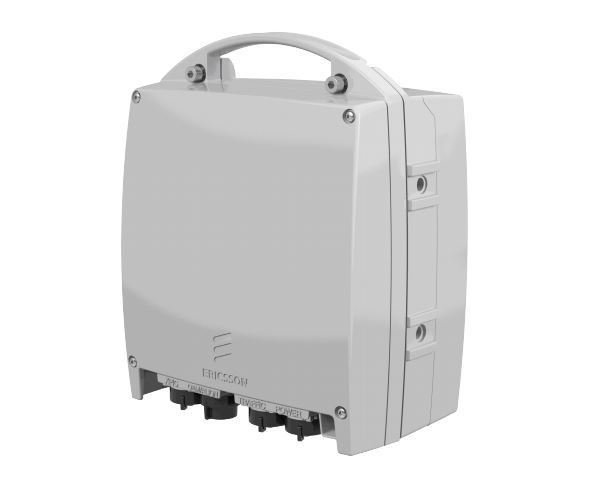

Ericsson MINI-LINK PT6020 is a microwave link design Full Outdoor operating in free band 80 GHz.
Main advantage of the 80 GHz band is the ability to achieve < span style ="font-weight: bold;"> high capacities with minimal risk of interference. In combination with modern technology PT 6020 to build connections with the parameters of the optical path.
joint transmits the guaranteed capacity of up to 1,000 Mbit/s Full Duplex s occupied bandwidth of 250 MHz. High availability the weather gets bad is achieved due to excellent sensitivity, high RF output power with automatic ATPC and Lossless automatically changes the modulation in full (ACM).

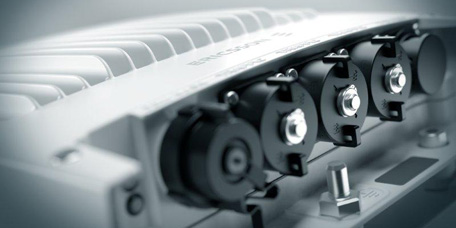

Data Interface connections is solved metallic and optical port, which ensures the possibility of galvanic isolation of related active components and theirone hundred percent protection against lightning surges.
Technology Ericsson MINI-LINK is verified installations in more than 100 countries . Ericsson is the world's largest manufacturer MW connections and just a number MINI-LINK, which among other things used by the largest Telcos arebecoming the standard of quality in this field.
To calculate the availability and design of appropriate dish for the desired distance us nevýhejte hesitate to contact me.
basic features Ericsson MINI-LINK PT 6020:

• band 71-76/81-86 GHz
• Transmission capacity up to 1000 Mbit/s user < /li>
• 250 MHz channel width
• TX power +14 to +16 dBm
• TRX sensitivity (BER 10-6)-71 to-58 dBm
• Traffic interface: Optical GE via 1000 BASE-X IEEE802.3Electrical 10/100/1000 BASE-T IEEE802.3
• Maintenance interface: 10/100 BASE-T IEEE802.3
• Operating temperature-45 ° C to + 60 ° C
• The typical power consumption of 45 W
• Power-48 VDC or PoE
• ACM, ATPC < /li>
• 802.1p,DSCP, MPLSTC, 8 queues of configurable length, WRED or Tail-drop queue management, Strict priority and weighted fair queuing scheduling mechanism
• Multi Layer Header Compression
• Antenna System 0.2/0.3/0.6 m
