Ericsson MINI-LINK 6355 80 GHz, up to 10 Gbit/s AS 0.3

Ericsson MINI-LINK 6355 80 GHz, up to 10 Gbit/s AS 0.3

Name: Ericsson MINI-LINK 6355 80 GHz, up to 10 Gbit/s AS 0.3
Brand: ERICSSON
SKU: 79536
Price: 6253.51 EUR
Availability: OutOfStock

Ericsson MINI-LINK 6355 is a top new generation microwave link designed for high-capacity E-band links in the 80 GHz band. Thanks to the integrated 87Gbps switch , support for 25GE interface and capacity of up to 10 Gbps (1+0) or 20 Gbps (2+0), it repr...More information

Producer

ERICSSON

Code

00075551

Warranty

24 Month

Your price

Price after login

Select a variant

Availability

Availability in stores

Ask for a better price

Ericsson MINI-LINK 6355 80 GHz, up to 10 Gbit/s AS 0.3 - variants

	Count	Name	Code	Description	Availability	Your price exc. VAT	Your price inc. VAT
Partly	1pcs.	Ericsson MINI-LINK 6355 80 GHz, 1 Gbit/s AS 0.3 00075545 Partly Availability in stores	00075545	Ericsson MINI-LINK 6355 je špičkový mikrovlnný spoj nové generace určený pro vysokokapacitní E-band spoje v pásmu 80 GHz . Díky integrovanému 87Gbps switchi , podpoře 25GE rozhraní a kapacitě až 10 Gbps (1+0) nebo 20 Gbps (2+0) představuje ideální řeše...	Partly	Price after login Price after login	Price after login
Partly	1pcs.	Ericsson MINI-LINK 6355 80 GHz, 2 Gbit/s AS 0.3 00075539 Partly Availability in stores	00075539	Ericsson MINI-LINK 6355 je špičkový mikrovlnný spoj nové generace určený pro vysokokapacitní E-band spoje v pásmu 80 GHz . Díky integrovanému 87Gbps switchi , podpoře 25GE rozhraní a kapacitě až 10 Gbps (1+0) nebo 20 Gbps (2+0) představuje ideální řeše...	Partly	Price after login Price after login	Price after login
Partly	1pcs.	Ericsson MINI-LINK 6355 80 GHz, 5 Gbit/s AS 0.3 00075544 Partly Availability in stores	00075544	Ericsson MINI-LINK 6355 je špičkový mikrovlnný spoj nové generace určený pro vysokokapacitní E-band spoje v pásmu 80 GHz . Díky integrovanému 87Gbps switchi , podpoře 25GE rozhraní a kapacitě až 10 Gbps (1+0) nebo 20 Gbps (2+0) představuje ideální řeše...	Partly	Price after login Price after login	Price after login
Partly	1pcs.	Ericsson MINI-LINK 6355 80 GHz, 10 Gbit/s AS 0.3 00075541 Partly Availability in stores	00075541	Ericsson MINI-LINK 6355 je špičkový mikrovlnný spoj nové generace určený pro vysokokapacitní E-band spoje v pásmu 80 GHz . Díky integrovanému 87Gbps switchi , podpoře 25GE rozhraní a kapacitě až 10 Gbps (1+0) nebo 20 Gbps (2+0) představuje ideální řeše...	Partly	Price after login Price after login	Price after login

Ask for a better price

Description

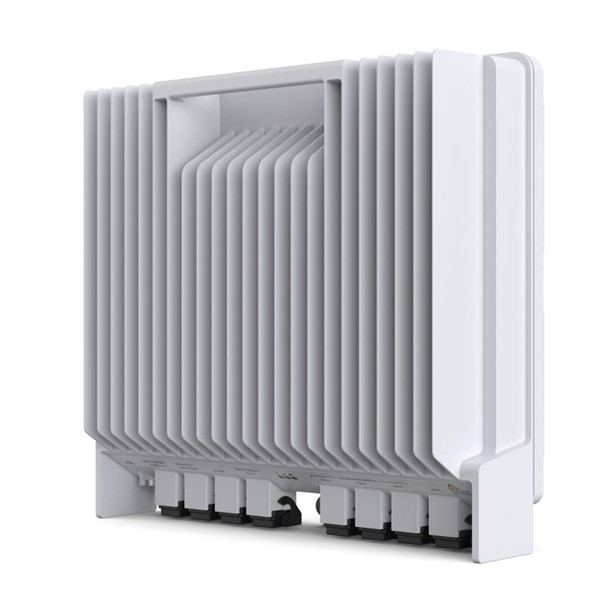

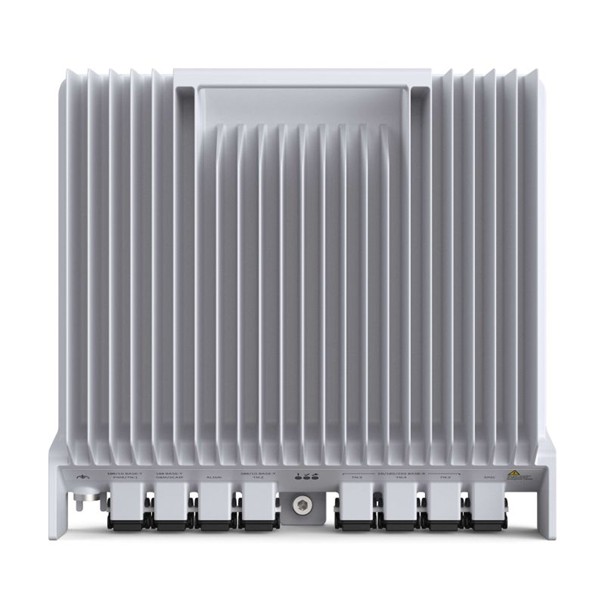

Ericsson MINI-LINK 6355 is a top new generation microwave link designed for high-capacity E-band links in the 80 GHz band.

Thanks to the integrated 87Gbps switch, support for 25GE interface and capacity of up to 10 Gbps (1+0) or 20 Gbps (2+0), it represents an ideal solution for backbone lines, 5G backhaul, FWA, aggregation of POP nodes, corporate connectivity or replacement of optics where it is not physically available.

MINI-LINK 6355 and 6356 from Ericsson push the limits-thanks to power of up to +26 dBm (for version 6356) and +24 dBm (for version 6355), they can extend the range of E-band connections compared to conventional solutions.

The device is completely all-outdoor and can aggregate traffic and pass it over a single high-capacity link to a higher network level. Thanks to advanced packet processing, QoS and low latency, it provides absolute stability and consistency of transmission-even in demanding SLA environments.

The combination with the Multi-band Booster configuration makes it possible to extend the effective range up to three times – lower frequencies ensure a reliable connection even in bad weather, while E-band adds high capacity under ideal conditions. In addition, the Radio Deep Sleep function allows the radio units to be turned off completely when maximum capacity is not needed. This reduces the power consumption of the E-band node by up to 50 %.

Main benefits

Up to 20 Gbps in a 2+0 configuration
Multi-Band Booster option (hRLB)-up to 25 Gbps and 3x longer range when combined with MINI-LINK 6600/6366/6371
High transmission power:
- +24 dBm for peak system gain (version 6355)
- +26 dBm for peak system gain (version 6356)
Integrated 87Gbps switch, support L2/L3 VPN, H-QoS, SyncE and IEEE 1588v2

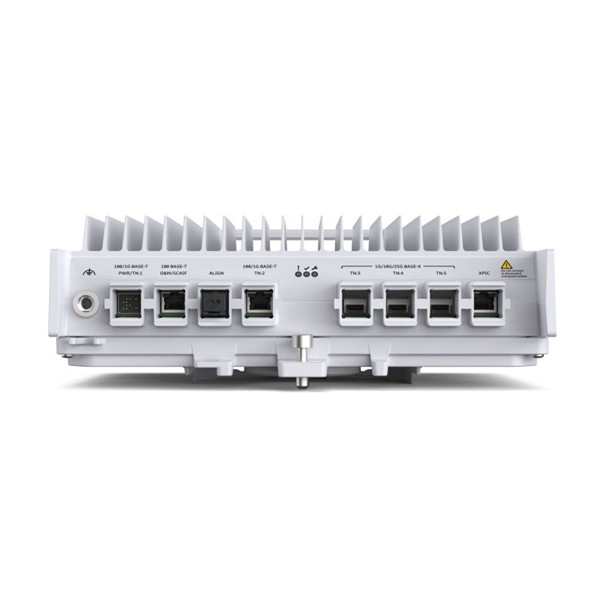

3× 25GE (SFP28) + 2× 1GE BASE-T
Very low latency-30 to 90 µs
Fully outdoor solution, IP66, operating temperature-33 °C to +55 °C

Technical parameters-MINI-LINK 6355

Radio part

Band: 71-76/81-86 GHz
Capacity:
- 10 Gbps (1+0)
- 20 Gbps (2+0)
- 25 Gbps (MBB hRLB)
Channel widths: 62.5/125/250/500/750/1000/1500/2000 MHz
Modulation scheme: BPSK – 1024QAM
Max. TX power: +24 dBm/+26 dBm

Configuration

1+0
2+0/RLB/XPIC/EQP
Multi-band Booster (hRLB)

Interface

3× optical 25GE/10GE/1GE (SFP28/SFP+/SFP)
2× 1GE BASE-T
Local OAM: 100BASE-T

Operating parameters

Power supply:-48 V DC
Consumption: according to configuration
Protection: IP66
Temperature:-33 °C to +55 °C

Physical parameters

Dimensions: 282 × 303 × 126 mm
Weight: 6 kg

Network Features &Sync

SyncE, PTP IEEE 1588v2 (Time/Phase &Frequency)
Low-latency forwarding (30-90 µs)
Link OAM, Service OAM, Y.1731, TWAMP
Support IPv4/IPv6 DCN, VLAN, LAG/LACP, RSTP, ERP
H-QoS, WRED/Tail-drop, 8 queues, MPLS TC

Parameters

Physical parameters
ACM - hitless	Yes
ATPC	Yes
Concept	Full-Outdoor
Consumption	Dle konfigurace
DC power supply	Yes
FEC	Yes
Channel Width	až 2 000
Jumbo frameworks	Yes
Max. guaranteed capacity (Mbit/s)	10000
Max. transmitting power (dBm)	26
Metallic port	Yes
Modulation	až 1024 QAM
Optical port	Yes
Port E1	No
Possibility of closing SLA	Yes
Possibility to rent equipment	Yes
Power Supply PoE	Yes
SNMP	Yes
XPIC	Yes
Depth (mm)	126
Height (mm)	303
Width (mm)	282
Wireless parameters
Frequency	80 GHz
