EnGenius ECW230S, WiFi 6 access point, cloud controller, 2.5G port, security radio, BLE
Compare Set Watchdog

EnGenius ECW230S, WiFi 6 access point, cloud controller, 2.5G port, security radio, BLE

The ECW230S dual-band access point provides fast and reliable Wi-Fi coverage in 2.4 GHz and 5 GHz bands with the latest WiFi 6, up to 3,548 MBPS, 4: 4: 4 MU-MUMO, TX Beamforming, patented mesh technology.More information

Producer
  EnGenius

Part No.


ECW230S


Code
 00071621
Warranty
Limited life
Your price exc. VAT
360.12 EUR exc. VAT
VAT
21%
Your price inc. VAT
435.75 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

    The Enterprise Wi-Fi range and ENGENIUS Cloud Series' PoE switches provide flexible, scalable and reliable Wi-Fi for a wide range of applications. Whether you are looking for AP to cover your offices or need to provide ultra-fast Wi-Fi access in a large hotel or campus, cloud-managed access points Engenius meet the requirements for high transfer speed and permeability for hundreds of clients.

    Regardless of the current or planned network size, access points managed by cloud will meet your needs. You can only use a few APs or an unlimited number of access points in unlimited networks at different locations-regardless of their size, infrastructure or physical location.



    Thanks to the simple AP configuration on one click, it is possible to build the entire network and put into operation in an extremely short time. Similarly, problems and operation analysis are more efficient with the cloud solution compared to the classic local controller-artificial intelligence (AI) allows the Engenius Cloud to anticipate problems before they occur and provide accurate recommendations for active performance improvement.
    Engenius ECW230S

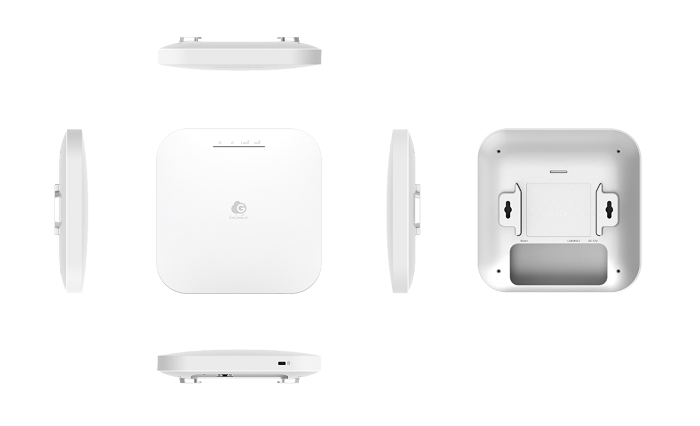

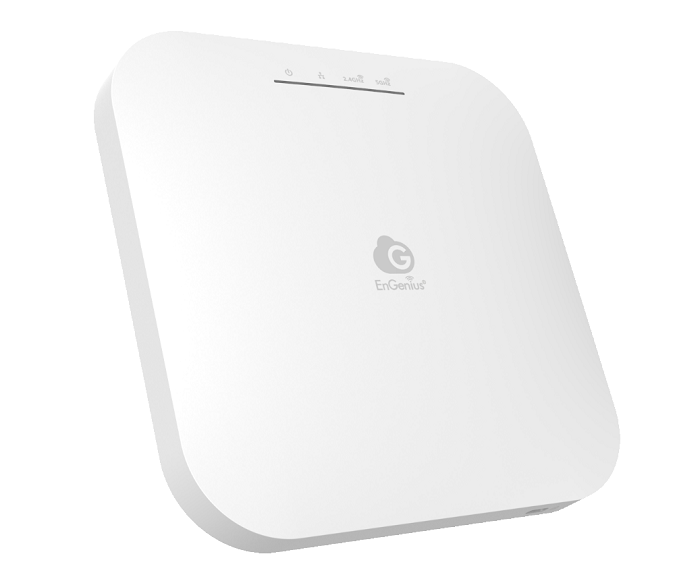

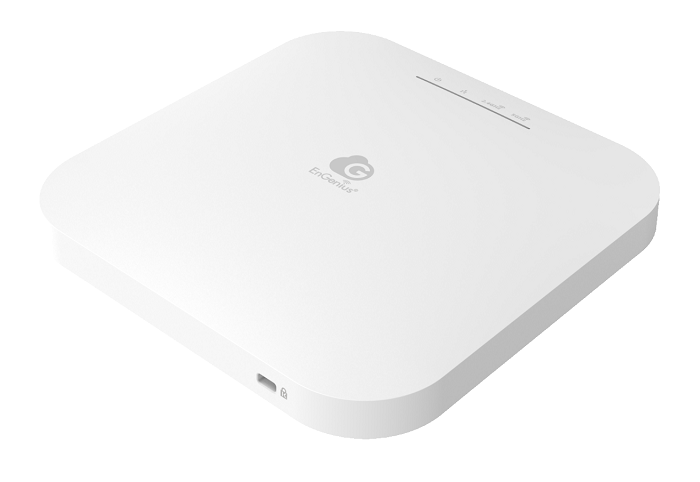

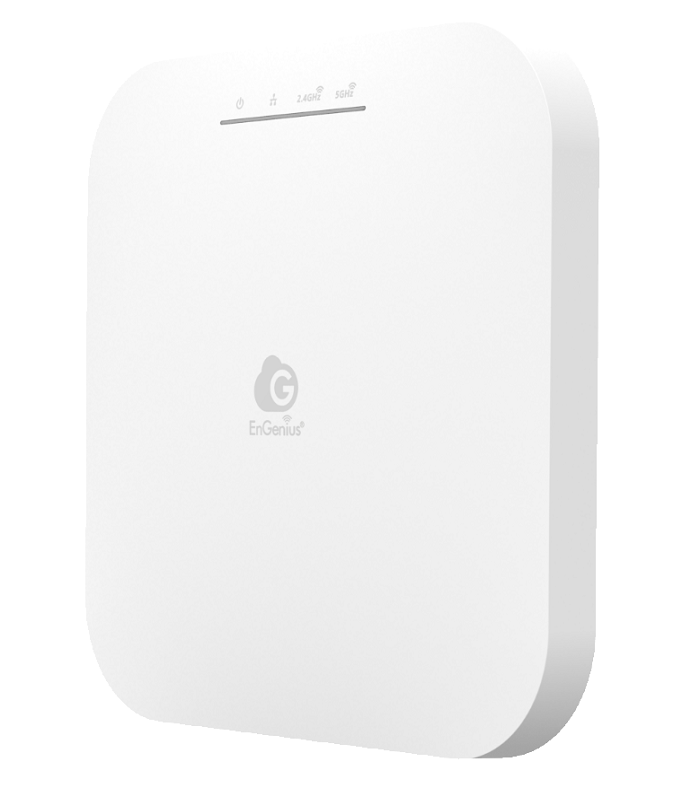

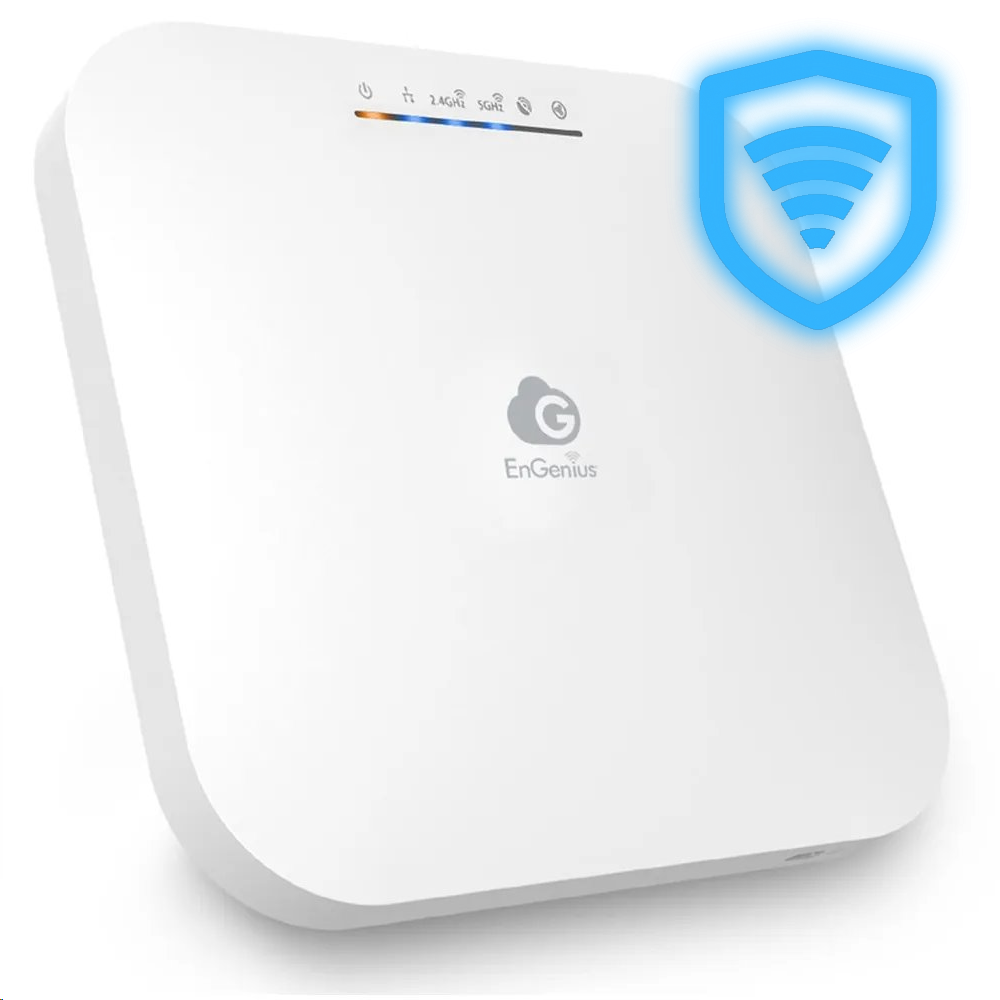

    The two-band access point Engenius ECW230S is particularly suitable for use in business internal environments. It provides fast and reliable Wi-Fi coverage in the 2.4 GHz and 5 GHz bands with support for the latest WiFi 6 , bit rate to 3,548 Mbps , 4 × 4: 4 MU-MIMO, TX Beamforming, patented mesh technology. In addition, it contains dedicated Security Radio with patented technology Airguard eliminates threats for your network. Thanks to Ble 5.0 support (Bluetooth Low Energy), it is possible to get even more information about the device and use for example for accurate geolocation.
    • Internal Access Point 802.11AX
    • speed up to 1148 Mbps (2.4 GHz) and 2400 Mbps (5 GHz)
    • MU-MIMO technology (4 × 4: 4)
    • dedicated Security Radio and Ble 5.0 module
    • Support for technology Airguard to protect the network and clients
    • real-time spectrum scan, zero-wait dfs
    • TX Beamforming optimizes signal, reception and reliability
    • band steering, fast roaming
    • Guest Wi-Fi, Captive Portal including Social Network Login or Vouchers
    • AP, AP MESH and MESH
    • 2.5Gigabit Ethernet PoE port
    • Power supply 12 in DC or 802.3AT POE
    • mounting on the ceiling or wall
    • AP settings with one click-just scan the QR code and assign to the cloud
    • unlimited number of access points in the cloud-access from anywhere, anytime
    • Managing and monitoring network via mobile app
    • Using the cloud is without additional license or service fees

      Engenius Cloud
      Get to know the ease of construction and the high efficiency of network management-from deployment to monitoring and solving problems with the comprehensive solution of Engenius Cloud will help you simplify the whole process. The Engenius Cloud is based on cloud computing technology-robust and dynamic cloud infrastructure, which is fully scalable from the smallest projects to the deployment of thousands of AP and ready on AI, will help you work intelligently in your network using important analytical and visualization tools.
      The price of each AP includes free lifelong license
      for a cloud controller in the BASIC variant-this license is enough for all common operations and operation of the WiFi network. For advanced functions (security, authorization, reporting/backup, ...) it is necessary to purchase for a license. A complete description of the differences is possible Find here.

    • easy management of multiple organizations and networks in one account, sort and filter individual networks
    • Mass management AP and switches in one place
    • Quick solution to graphical and visualization tools
    • Information in real time Information about the status and performance of each individual AP and network as a whole
    • Automatic network topology, built-in AP coverage view on maps
    • Operation Analysis on 7.
    • Captive portal with advanced features-Social network login, automated voucher printing option for temporary access, Radius support.
    • Mobile application Engenius Cloud-full check over Switchi, access points and devices managed cloud, wherever you are.
    • Possibility to remotely and centrally manage FW all devices, possibility to coordinate updates with planned maintenance
    • One-CLICK registration of new AP via the web or mobile application


      Wi-Fi Standards:
    • IEEE 802.11b/g/n/ax for 2.4 GHz
    • IEEE 802.11a/N/AX for 5 GHz

      antennas:
    • Integrated Omni-Directional
    • 4x 2.4 GHz: 5 DBI
    • 4x 5 GHz: 6 DBI

      interface:
    • 1x 100/1000/2500 Base-T, RJ-45 Gigabit Ethernet Port
    • 1x DC Jack
    • 1x reset button

      Power:
    • Power-Over-Ethernet: 802.3at
    • IEEE 802.11e Compliant Source
    • 12 in DC/2 and Power Adapter

      Management:

    • multiple BSSID
    • 8 SSID for 2.4 GHz and 5 GHz
    • Vlan tagging
    • Support 802.1Q SSID-to-VLAN TAGGING
    • Cross-Band Vlan Pass-Through
    • Management VLAN
    • Spanning Tree
    • Supports 802.1d Spanning Tree Protocol
    • QoS (Quality of Service)
    • IEEE 802.11e Standard
    • wmm
    • SNMP V1, V2C

      Security:

    • WPA/WPA2 Enterprise (WPA-EAP Using TKIP OR AES)/WPA3
    • Hide SSID in Beacons
    • Mac Address Filtering, UP to 32 Macs Per Ssid
    • Wireless STA (Client) Connected List
    • Client Isolation


      Discover the power of Engenius Cloud



      Package content:
    • 1x ECW230S
    • 1x mounting kit on the T-round to the ceilings
    • 1x mounting kit for installation on ceiling and wall
    • 1x mounting accessories
    • 1x fast user manual

    Parameters

    Antenna gain 2,4 GHz (dBi) 5
    Antenna gain 5 GHz (dBi) 6
    Bluetooth Yes
    Consumption 19,5
    Controller Cloud
    Encryption WPA3, WPA2 AES
    IPv6 support Yes
    Management Yes
    Power Supply PoE, DC
    Properties BLE 5.0, Security rádio

    Ethernet parameters

    LAN port speed 2,5 Gbps
    Network interface (Mbps) 10/100/1000/2500

    Physical parameters

    Depth (mm) 205
    Design Indoor
    Height (mm) 33.2
    Operating Temperature 0° až +40 °C
    Weight (kg) 0.597
    Width (mm) 205

    PoE parameters

    PoE standard 802.3at

    Powering

    PoE Yes

    Wireless parameters

    Frequency 2,4 GHz + 5 GHz
    MIMO (2,4 GHz) 4x4
    MIMO (5 GHz) 4x4
    Operating mode AP, Mesh AP, Mesh
    Vysílací výkon 2,4 GHz (dBm) 23
    Vysílací výkon 5 GHz [dBm] 23
    WiFi Standards WiFi 6 (802.11ax)
    WIFI transfer rate - 2.4 GHz [Mbps] 1148
    WiFi transfer rate - 5 GHz [Mbps]: 2400
