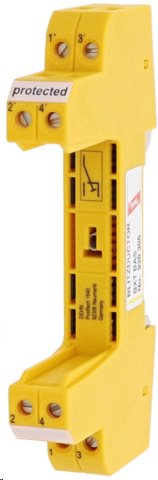

DEHN mounting rail arrester-basic part (BXT BAS)

Blitzductor XT-Basic part is a very economical four-pole passing terminal, designed to attach the protective module, without interrupting the signal when ejecting it.
Safe grounding of overvoltage arresters is ensured via metal contacts after deployment of the basic part on the TS 35 installation bar.
The basic part is not fitted with any protective elements and therefore the inspection and maintenance of protective systems applies primarily to Protective modules.
Detailed parameters are listed in datasheet .


General information on modular arresters voltage Dehn:

Combined Lightning Currers/Overvoltage Driver

The highest leading power for two-, three-or four-pole interfaces

ability to seduce lightning currents up to 10 ka (10/350 µs)

Low protective level, the arrester is also suitable for protection of terminal devices

Integrated monitoring unit Lifecheck

allows you to check the downpipers during operation

recognizes the congestion of the arrester

Preventive exchanges is ensured by high reliability of protected circuits

The arrester is divided into a protective module and basic part

to ensure reliable operation are tested by vibration and shock

All protective components are integrated in a plug-in module

There are two universal basic parts with or without signal disconnection

Minimum dimensions, 4 separate veins or 2 pairs of lines are in the 12 mm width module
