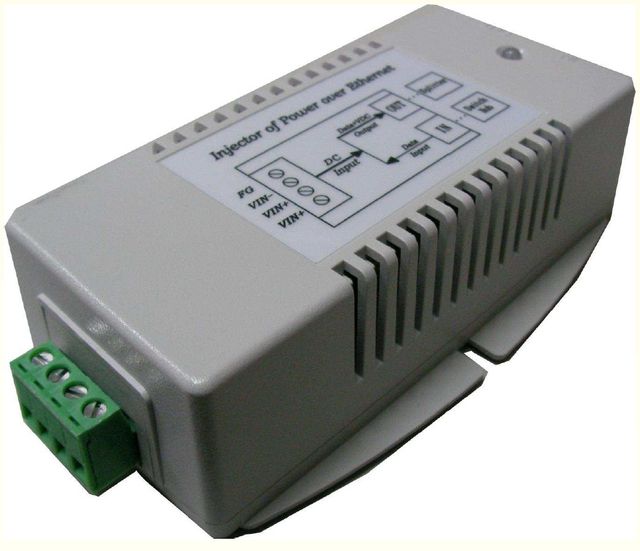

Used: Tycon TP-DCDC-4856G-VHP 36-72 V input 56V Passive POE Output

Tycon TP-DCDC-4856G-VHP is a specially designed DC/DC converter with integrated POE injector to power microwave units of other systems that require High Power passive PoE power such as PTZ security cameras.

The source uses two power channels of 35W-the first uses the pins 4.5.7.8, the second then pins 1.2.3.6. After counting the POE channels, the power supply can reach 70W. The channels have separated signaling through the LEDs that display.

This unique Poe Injector supports 56VDC voltage on all 8 pins.

Tycon TP-DCDC-4856G-VHP has two insulated power inputs for connecting various sources such as primary and backup sources.

Of course there is protection against overvoltage and short circuit and insulated input from output.
