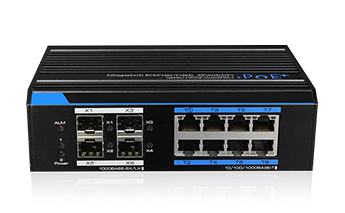

CSE IS7212S-8P, Industrial Gigabit PoE switch-8x PoE, 4x SFP

CSE IS7212S-8P is an industrial full gigabit PoE switch with 12 ports. It offers 8x 10/100/1000 Base-T ports (PoE 802.11af/at, total PoE budget 270 W) and 4x 1000 BASE-X SFP ports (uplink). An extended temperature range, redundant power supply, alarm relays or overvoltage protections up to 6 kV according to IEC61000-4-5 predetermine this switch for use in the most difficult conditions. Ideal for telecommunication or camera systems.

The CSE IS7212S-8P model is based on Broadcom's solution and brings top performance and reliability-switching capacity 24 Gbps, packet transfer rate 17.9 Mpps, buffer 4 Mb, jumbo frame 8000 B, support for 4K high-resolution video transmission. The IS7212S-8P model supports web-based network management, intelligent functions (CCTV, Ring, Online, LOCK), VLAN, QoS, RSTP, SNMP, etc.) Working temperature-40 to 75°C, high level of lightning protection and anti-interference.

Thanks to the function to automatically restart the connected device, it is ideal for use in camera systems.



Parameters:

Title	Value
Switch capacity:	24 Gbps
Packet Transfer Rate:	17.9 Mpps
Buffer:	4M
MAC Address:	8K
PoE Standard:	IEEE802.3af, IEEE802.3at, End-span. 1x HPoE (40W)
PoE power supply:	1/2 (+),3/6(-)
PoE Output:	Port T1 40 W HPoE, Port T2~T8 standard PoE (30 W). Max 270 W PoE budget.
Output alarm relays:	Configurable alarm output relay (Ethernet link down, PoE link down)
Surge Protection:	6 kV according to IEC61000-4-5
ESD protection:	ESD Level 4 according to IEC61000-4-2, EFT Level 4 according to IEC61000-4-4
Input Power:	48-57 V DC
Power:	< 30 W
Work. temperature:	-40 to 75°C
