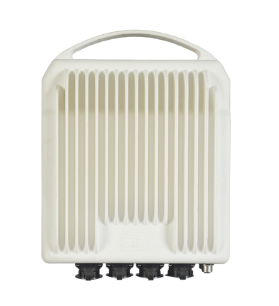

Connection SIAE ALFOplus2, 1410 Mbit/s, XPIC 11 GHz 0.6m ant.

Siae alfoplus2 is thanks to the latest modem with 80 MHz width, 4096 Qam and integrated Xpic world leader between microwave connections. The achieved capacity of the joint is to 1.410 Mbit/s. The whole technology is in the Full Outdoor concept, which guarantees easy and fast installation.

This connection, which contains many unique functionality, is produced by SIAE Microelettonica, which has more than 60 years experience with the development and production of radio modems and microwave technologies. Thanks to the annual production of more than 100,000 terminals , the Italian company based and production plant in Milan ranks fourth worldwide, within the EU it is even the second largest manufacturer. The largest customers are telecommunications operators Vodafone and telephone, no less important part is the ISP segment and system integrators.



The technology has an intelligent switch on which all modern functions can be set. Switch contains full support of the VLAN, including Qinq , supports jumbo packets (MTU up to 10kbytes), QOS, LACP synchronization of SYNCE and 1588V2 and many other functions.

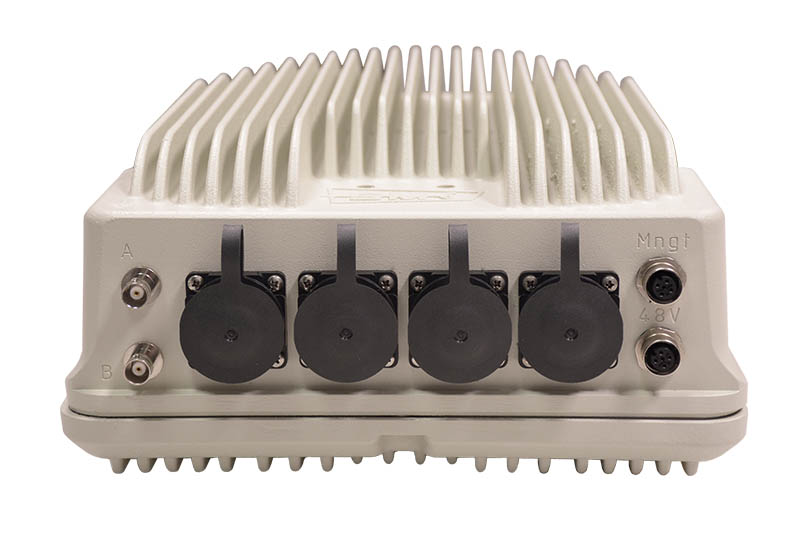

The physical interface is solved 2x metallic interface and 2 SFP slots 1/2.5 GB/s.




Specifications:

capacity up to 1,410 Mbit/s

modulation from 4 qam to 4096 qam with lossless ACM

Canal width 7, 14, 28, 40, 56, 80 MHz

Integrated XPIC function-in one ODU unit

l1 link aggregation

4 x 4 outside

interface 4 x 1/2.5 GB/s

Multilayer Header Compression

Ethernet Sync/1588v2 synchronization

Power option via POE

encryption AES 128/256

Platform MPLS Ready

Cisco Adaptive Bandwith
