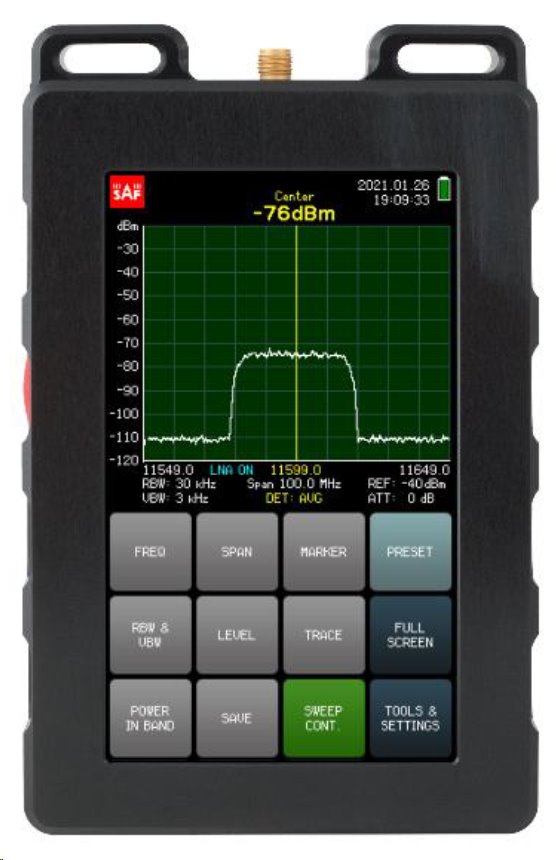

Compact spectrum analyzer SAF Compact, 6-20 GHz

A portable Spectrum Analyzer SAF Spectrum Compact in its latest generation v2 delivers a wide 6-20 GHz operating range in a compact design - it's tailor-made for mobile operators, telecommunications professionals, Internet Service Providers (ISPs) and suppliers responsible for regulation and compliance, operators of drones and satellite services. It provides best-in-class value for money and high resilience at an affordable price, making it the perfect tool for engineers and field technicians responsible for connection planning, installation, on-site acceptance, maintenance and wireless troubleshooting.

The Spectrum Compact v2 spectrum analyzer has a high sensitivity -110 dBm at 30 kHz resolution, a long & nbsp; battery run time & nbsp; (up to 4 hours of measurement) & nbsp; and an instant power-on function without delay (measurement after 1 sec). All of this is housed in a robust, ultra-compact design that measures only 135 x 83 x 34 mm and weighs 570 g. The device features a resistive touch screen For easy operation in gloves and high contrast mode for easy readability in bright light environments. Measured data can be stored in integrated 8 GB of memory for offline analysis and further processing using Spectrum Manager software.

The series also includes portable handheld spectrum analyzers for E-band (70-87 GHz) and V-band (56-71 GHz) . The Spectrum Compact Series devices are suitable for mobile operators, tower operators and installation crews deploying 5G networks, wireless Internet service providers (WISPs), local government institutions, public safety departments and critical network infrastructure owners. Engineers and field technicians can use ultra-portable handheld microwave spectrum analyzers to perform on-site surveys, radio parameters verification, antenna alignment, interference detection, direct vision verification, signal strength mapping, and interference detection. Contact your product manager for more information.

If you want to try the spectrum analyzer environment, you can use the online demo!

Features:

• Ultra light and compact device
• Excellent receiver sensitivity -105 dBm
• Compatible with any antenna system from any manufacturer
• Immediate on / off
• USB charging
• Touch LCD display with intuitive controls and interactive graphical environment
• Complete saving of results
• No laptop needed for measurements
• Battery life up to 4 hours of measurement

Technical specifications:

• Frequency bands: 6 - 20 GHz
• Frequency range: 5,925 - 20,000 GHz
• Receive level range: -105 dBm to & nbsp; +20 dBm
• Maximum input power: & nbsp; +20 dBm max measurement / +27 dBm max without damage
• RBW (resolution): 30 kHz; 100 kHz; 300 kHz; 1MHz
• Guaranteed accuracy: + / 1 dBm
• Input: 50 ohm SMA (f)
• Interface: USB type C
• LED indication: when charging
• Battery life: up to 4 hours
• Operating temperature: -15 ° C to 55 ° C
• Dimensions: 135 x 83 x 34 mm
• Weight: 0.57 kg

Package includes:

• SAF Spectrum Compact v2 spectrum analyzer
• RF cable, SMA-SMA 0.3 m
• AC / DC USB-C charger
• USB-C to USB-C cable
• Leather bag
• Safety cable with carabiner
• 5.9-10 GHz waveguide adapter
• 8.2-12 GHz waveguide adapter
• 17-24.3 GHz waveguide adapter
