boundle

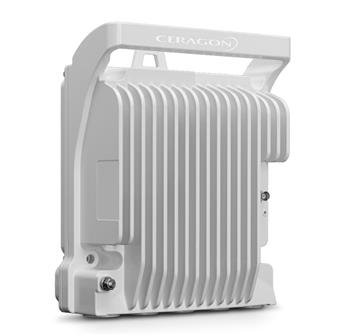

Ceragon IP-50CX 38 GHz, 4 Gbit/s, 30/30 cm

The IP-50C link is a compact full outdoor microwave link for licensed bands with a transmission capacity of up to 4000 Mbit/s. This series complements the existing IP-20 models and offers higher capacities, new functions and an Ethernet interface on the same proven basis...More information

Producer

Ceragon

Code

00075350

Warranty

24 Month

Availability

Partly

Availability in stores

Order

Your price

Price after login

Ask for a better price

Ceragon IP-50CX 38 GHz, 4 Gbit/s, 30/30 cm - components

	Count	Name	Code	Availability
in stock	2pcs.	IP-20-SL-10GE-Port 00034366	00034366	in stock
in stock	2pcs.	IP-20 SL-2nd Core Activation 00033934	00033934	in stock
in stock	4pcs.	IP-20 SL-ACM, per carrier 00033930	00033930	in stock
in stock	4pcs.	IP-20 SL-XPIC, per carrier 00033932	00033932	in stock
in stock	4pcs.	IP-20 SL-MC-ABC, per carrier 00033933	00033933	in stock
in stock	4pcs.	IP-20 SL-Capacity 2G per carrier 00034287	00034287	in stock
2 weeks	2pcs.	ANT 30cm 1FT, 38GHz, IP20C/50CX, CR8 (Andrew ant.) 00075351	00075351	2 weeks
2 weeks	2pcs.	IP-20C/IP-50C OMT kit 38GHz 00075352	00075352	2 weeks
to 1 month	1pcs.	IP-50C-E-38w-L-H 00075353	00075353	to 1 month
to 1 month	1pcs.	IP-50C-E-38w-L-L 00075354	00075354	to 1 month

Ask for a better price

Description

The IP-50CX connection is a compact full outdoor microwave connection for licensed bands with a transmission capacity of up to 4000 Mbit/s. This series suitably complements the single-polarization models IP-20/50S(X) and offers higher capacities, new functions and Ethernet interfaces on a proven basis.

Using a state-of-the-art modem brings channel width support up to 224 MHz and 4K QAM modulation, which as a result guarantees capacity on the radio part up to 4 Gbit/s.

The unit is equipped with a 10G SFP+ slot and supports the modern XPIC function, which ensures simultaneous operation in both polarizations on one frequency. Thanks to this, it significantly saves costs for the channel from ČTÚ. The entire connection is structurally solved in one outdoor unit and guarantees easy and quick installation.

All models of the IP-50 platform offer advanced features that will further increase the efficiency of their deployment. An interesting function from the point of view of practice is bonding with the IP-50E device in multiband mode. It is thus possible to place the connections next to each other and use the high capacity 10 Gbps connection in the 80 GHz band and the high availability during rain of the connection in the licensed band.

A fully featured integrated switch can handle all commonly required functions and protocols such as QoS, encryption, synchronization, QinQ and many others.

Typical Power Consumption
6-11 GHz
2+0 Operation: 85W
1+0 Operation (one of the carriers is muted): 66W
Both carriers muted: 41W

13-15 GHz
2+0 Operation: 66W
1+0 Operation (one of the carriers is muted): 58W
Both carriers muted: 43W

Main advantages of technology

High transfer capacity
Licensed band guaranteeing protection against interference
Wide modem up to 224 MHz
XPIC support (simultaneous operation in both horizontal and vertical polarization)
Design quality and guarantee of the world manufacturer of MW joints

Parameters

Ethernet parameters
ACM - hitless	Yes
ATPC	Yes
Band	Licensing
Concept	Full-Outdoor
DC power supply	Yes
FEC	Yes
Channel Width	až 224
Jumbo frameworks	Yes
Max. guaranteed capacity (Mbit/s)	4000
Max. transmitting power (dBm)	22
Metallic port	Yes
Modulation	až 4096 QAM
Optical port	Yes
Port E1	No
Possibility of closing SLA	Yes
Possibility to rent equipment	Yes
Power consumption (W)	85
Power Supply	PoE, DC
Power Supply PoE	Yes
Required capacity (Mbit/s)	min. 50, min. 100, min. 200, min. 300, min. 400, min. 500, min. 1000, min. 2000
SNMP	Yes
XPIC	Yes
Port speed (Gbps)	10 Gbps
Physical parameters
Depth (mm)	98
Height (mm)	270
Weight (kg)	5.3
Width (mm)	230
Wireless parameters
Frequency	18 GHz
