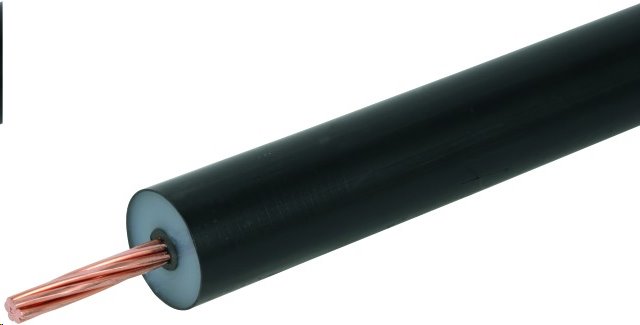

Cable HVI power DEHN (HVI P LO 90 27 L6...35M SW), 35 m

A conductor with high-voltage insulation to maintain a sufficient distance between the lightning conductor and other conductive components according to ČSN EN 62305-3.
Use to equivalent to a sufficient distance with ? 90 cm (air) or with ? 180 cm (solid non-conductive material).

With a single lead, it is possible to realize the following line lengths according to the lightning protection system (LPS):

lps i max 11.25 m

lps II max. 15.0 m

lps III/IV max 22.50 m

Tested with a lightning current of 200 ka (10/350 µs) in connection with EN 62561-1.

The priced price is for a minimum collection of 6 m. Please contact us for another output. When you take a small quantity, a maniuplation fee can be charged to inform you.

detailed parameters are listed in datasheet .
