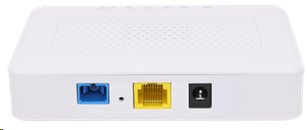

C-DATA FD511G-PRX-F310, GPON bridge ONT, PoE-in, 1GE port

C-DATA FD511G-F660 is a compact yet powerful XPON (dual-mode GPON/EPON) ONU unit designed for home or small office FTTH deployment. It has one optical port (GPON/EPON) and one gigabit Ethernet RJ-45 port, so it provides...More information

Producer

C-DATA

Part No.

FD511G-PRX-F310

Code

00075407

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

14.37 EUR exc. VAT

VAT

21%

Your price inc. VAT

17.39 EUR inc. VAT

Ask for a better price

Description

The C-DATA FD511G-PRX-F310 is a compact but powerful XPON (dual-mode GPON/EPON) ONU unit designed for home or small office FTTH deployment. It has one optical port (GPON/EPON) and one gigabit Ethernet RJ-45 port with PoE-in (802.3af/at) support, so it provides the possibility of flexible connection to the network. Fully compatible with both ITU-T G.984 (GPON) and IEEE 802.3ah (EPON) standards, it automatically detects the supported OLT mode and performs an adaptive transition between GPON/EPON. The unit supports, for example, remote firmware upgrades, auto-discovery, VLAN configuration, bandwidth management, security functions and SNMP management. Thanks to this, it promises stable operation, intuitive management and simple deployment.

XPON (dual-mode GPON/EPON): Support for GPON (ITU-T G.984.2, Class B+) and EPON (IEEE 802.3ah 1000BASE-PX20+) standards
Optical port (PON):
- GPON: up to 2.488 Gb/s downstream/1.244 Gb/s upstream.
- EPON: 1.25 Gb/s symmetrically
Ethernet port (LAN): 1× 10/100/1000 Mbps RJ-45, autonegotiation, full/half duplex, Auto-MDI/MDI-X, support PoE-in (Active PoE 48VDC, 802.3af/at)
Dimensions and weight: approx. 78 x 78 x 23.5 mm, weight approx. 62.7 g
Power supply: external 12 V/0.5 A DC adapter, consumption < 3 W
Operating environment: temperature 0-40 °C, humidity 10-90 % (non-condensing)
Status LED indicators: PWR, PON, LOS, LAN

Parameters

Ethernet parameters
Consumption	6
Management	Yes
Power Supply	DC
Properties	QoS, VLAN, IGMP-Snooping, CTC, Port protect
Gigabit LAN	yes
Number od RJ45 ports	1
Optical parameters
Optical connector type	SC
Počet PON portů	1
Polishing type	APC
PON standard	GPON
Physical parameters
Depth (mm)	80
Design	Standalone
Height (mm)	28
Operating Temperature	0° až +40 °C
Weight (kg)	0.1
Width (mm)	125

All parameters Less parameters

Do you need help?

We will help you with product selection or technical problems.

(+420) 246 035 451 Information and orders

Ing. Jan Stejskal

Product manager

+420 601 570 595

stejskal@vanco.cz

Products classification

Product question

Do you need help?

We will help you with product selection or technical problems.

(+420) 246 035 451 Information and orders

Ing. Jan Stejskal

Product manager

(+420) +420 601 570 595

stejskal@vanco.cz

Downloads1

Datasheet

XPON ONU--FD511G-PRX-F310(1GE)datasheet V3.0.pdf Format pdf (393.4 kB) Download
