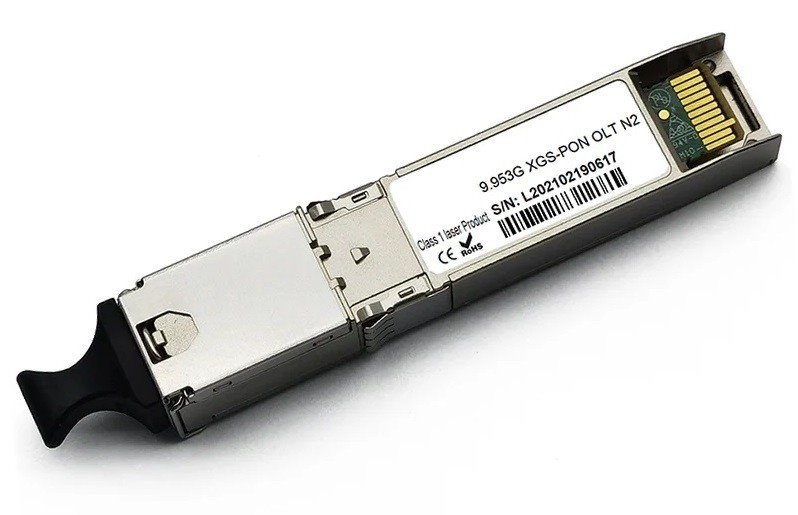

C-DATA CMPXC-N2C1, Combo SFP (GPON+XGSPON)

Name: C-DATA CMPXC-N2C1, Combo SFP (GPON+XGSPON)
Brand: C-DATA
SKU: 77839
Price: 160.89 EUR
Availability: InStock

C-DATA CMPXC-N2C1 is a high-performance combined SFP+ OLT transceiver (Quadplexer) that supports parallel xgs-content (10 GB/s) and gpon (2.5 GB/s); WAVELENGTH DIVISION MULTIPLEXING). It allows simultaneous XGS-pon (1270/1577 nm wavelengths) and Gon (1...More information

Producer

C-DATA

Part No.

CMPXC-N2C1

Code

00075247

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

132.96 EUR exc. VAT

VAT

21%

Your price inc. VAT

160.89 EUR inc. VAT

Ask for a better price

Description

C-DATA CMPXC-N2C1 is a high-performance combined SFP+ OLT transceiver (Quadplexer) that supports parallel xgs-content (10 GB/s) and gpon (2.5 GB/s) WAVELENGTH DIVISION MULTIPLEXING). It allows simultaneous XGS-pon (1270/1577 nm wavelengths) and Gon (1310/1490 nm) over a single optical channel.

XGSPON Support: (up to 9,953,28 Mb/s) and Gpon: (up to 2,488,32 Mb/s) at once by one fiber
type of transmitters and receivers:
- EML Laser (1577 nm) for XGS-PON, DFB Laser (1490 nm) for Gpon
- APD/TIA receivers for different modes that ensure high sensitivity and power
range: up to 20 km
Consumption: approx. 3.5 W

Parameters

Ethernet parameters
Consumption	6
Management	Yes
Power Supply	DC
Properties	IGMP-Snooping, CTC, Port protect, QoS, VLAN
Gigabit LAN	yes
Number od RJ45 ports	1
Optical parameters
Optical connector type	SC
Počet PON portů	1
Polishing type	UPC
PON standard	GPON, XGSPON
Physical parameters
Depth (mm)	126
Design	Standalone
Height (mm)	35
Operating Temperature	0° až +45° C
Weight (kg)	0.1
Width (mm)	178
