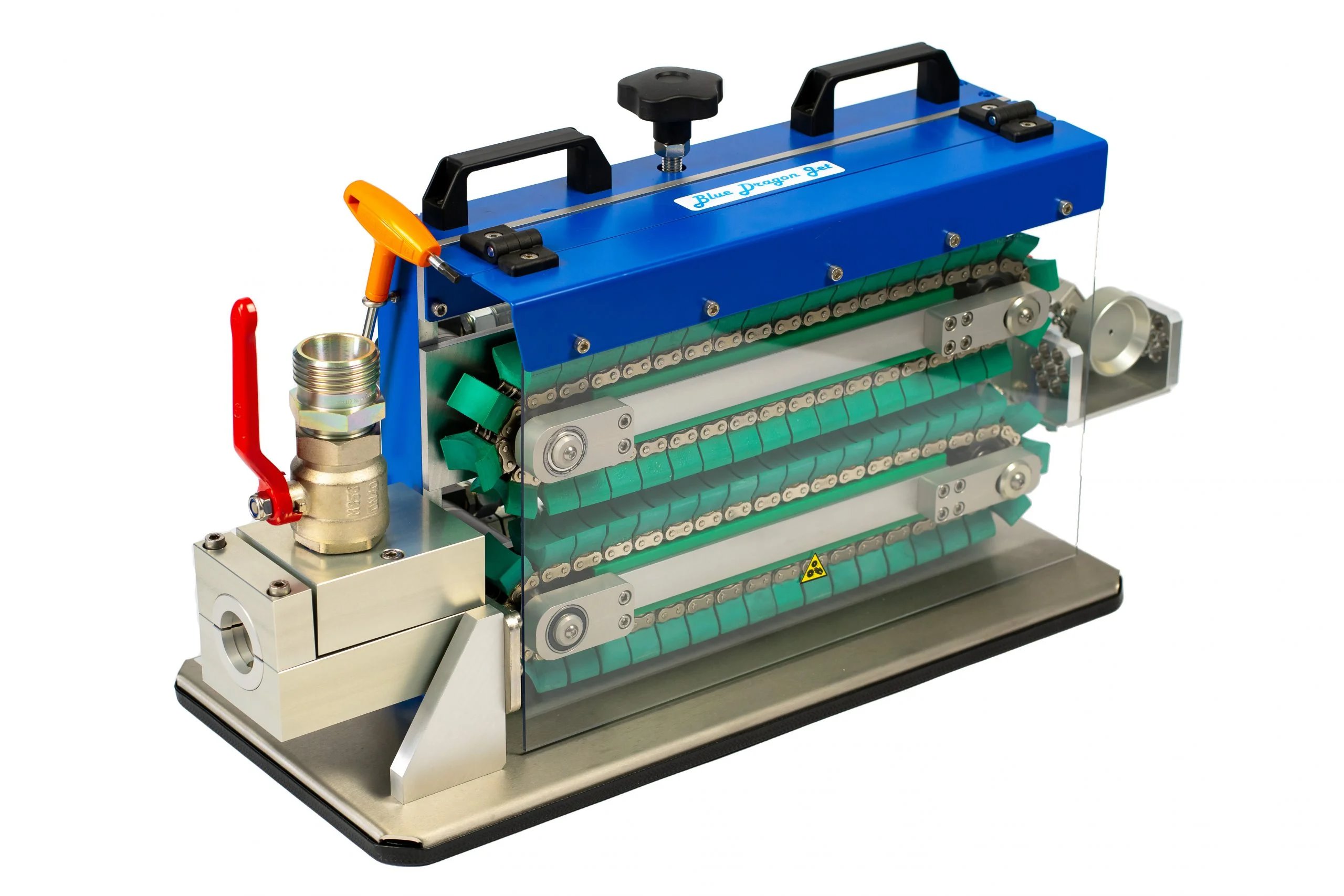

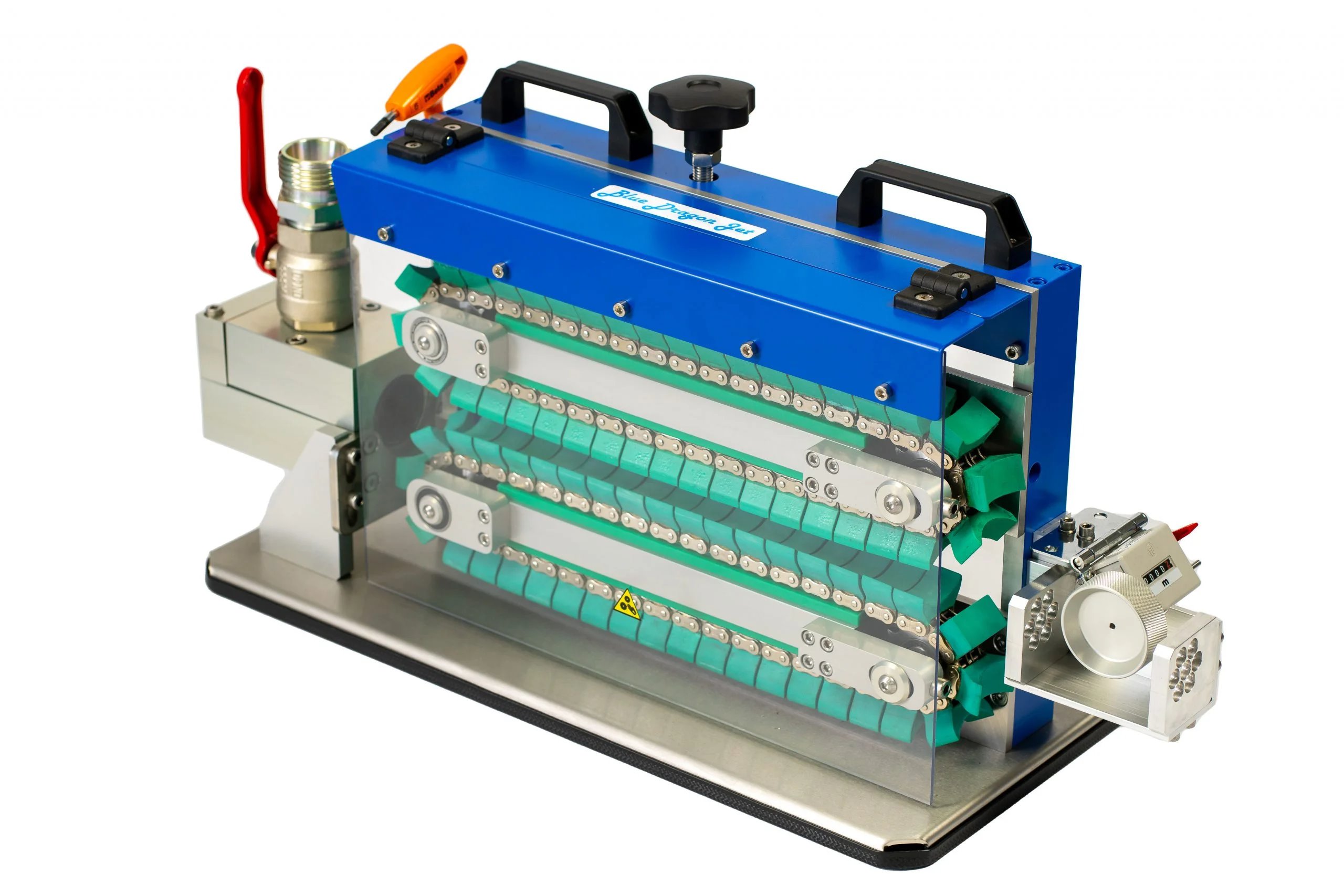

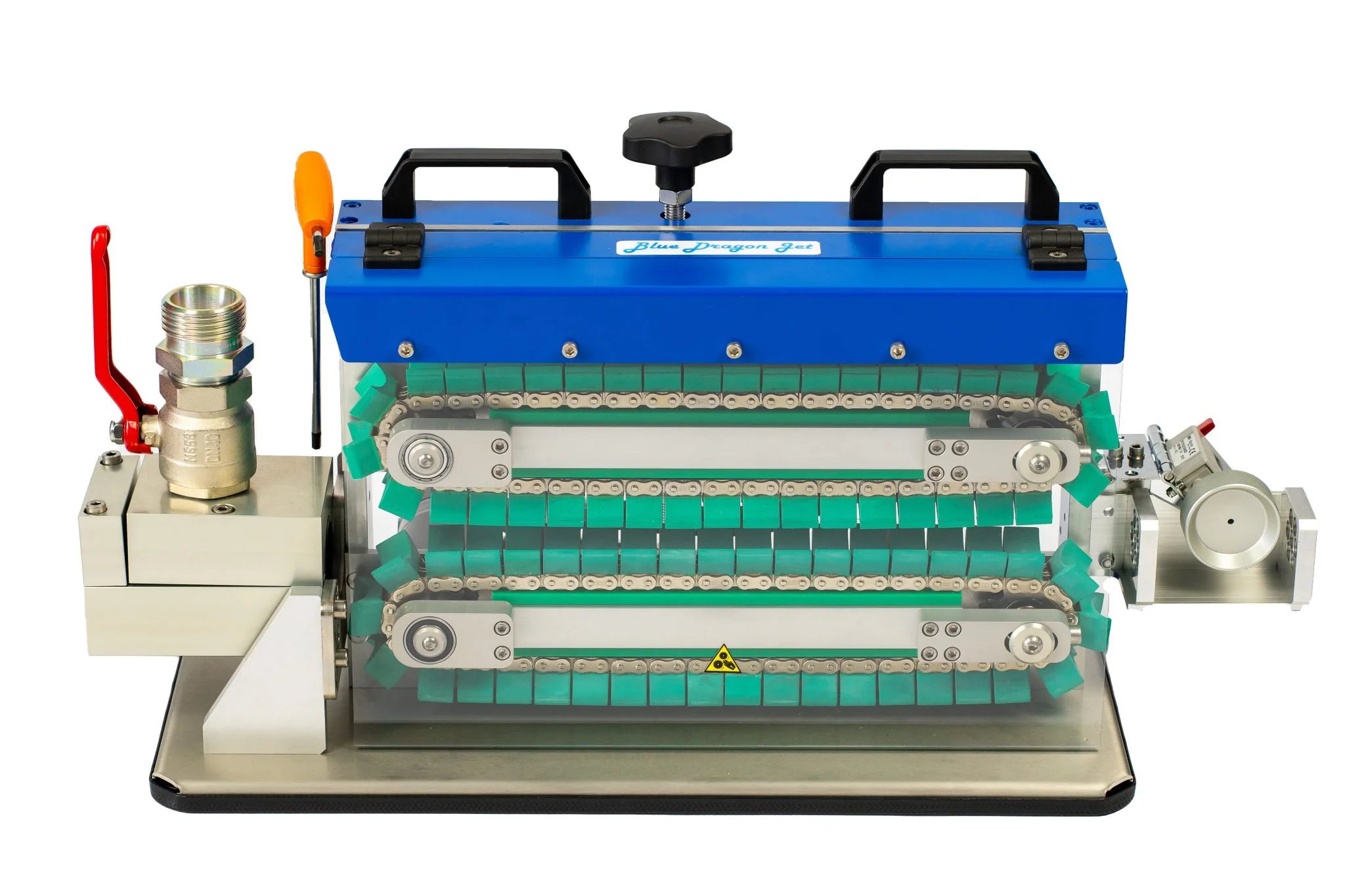

Blower for optical cables BDJ HYDRO CHAIN MULTI TUBE

The Blue Dragon Jet Hydro Chain Multi Tube is designed for blowing the microt runs in a pipe with a diameter of 32, 40 or 50 mm. The device is powered by a powerful hydraulic engine with a chain feeder-this combination ensures sufficient pushing force. The engine is seconded by an external hydraulic unit that is part of the package. The bundle can be blown up to a distance of 1.5 km into the tube.

Compatible Configuration of Mikrotube Back:

7 Mt with an outer diameter of 10 mm

7 Mt with an outer diameter of 12 mm

3-5 MT with an external device of 10 mm (with optional accessories)

3-5 MT with an external product of 12 mm (with optional accessories)

Technical data:

Construction: anodized al alloy, stainless steel

Dimensions of the blower: 850 x 400 x 300 mm

The weight of the blower without accessories: 42 kg

Hydraulic unit dimensions: 630 x 530 x 510 mm

The weight of the blower without accessories: 54 kg

Maximum blowing speed 80 m/min

Maximum blowing gloves: about 1000 m

Recommended compressor requirements:

8.4 m3/min, 7 bar, with a cooler and moisture separator (eg Kaser M82A)

Accessories:

set of handles and seals for HDPE 32, 40 and 50 mm

tools

air hose

Hydraulic unit
