Bazar: Alcoma AL3-10/ME pr. 90cm, gain 37 dB

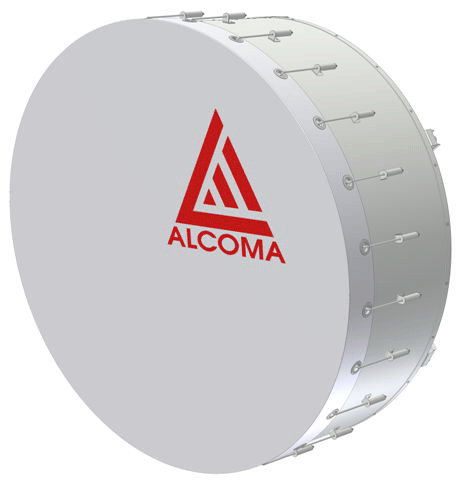

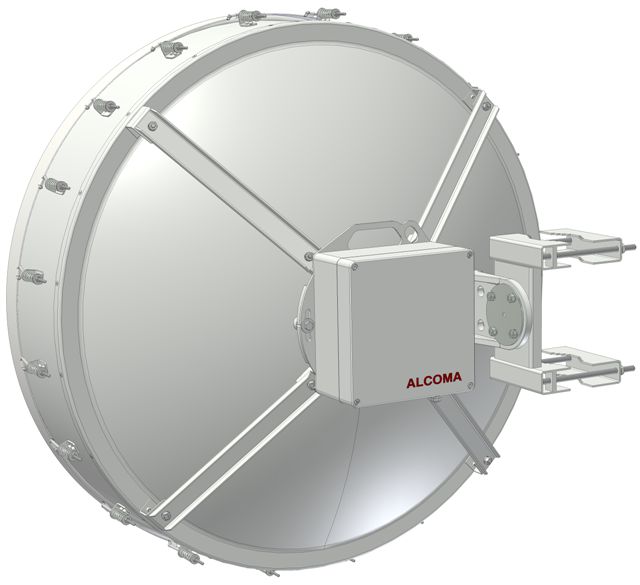

Microwave parabolic antenna 0.95m high performance for ALCOMA microwave connections type ALxxF. The point-point antenna is provided with a standard protection against it icing of OPN. The holder allows precise adjustment in both directions. Maybe it is right-hand and left-hand side.

General parameters: GHz)
Polarization: horizontal/vertical/dual
Operating temperature range:-45 to + 55 ° C
Color of the antenna: light gray
Radius design: plastic/tarpaulin

< span style ="font-weight: bold;"> Electrical Parameters:
PSV Customization: < 1.3 (20dB)
Cross-polarization suppression: 30dB
Antenna class according to radiating characteristics: class2 or class 3 according to ETSI EN 302217

Mechanical parameters:
Maximum wind load: max 30 m/s (110 km/h)
Maximum wind load: max 55 m/s (200 km/ : 26 kg
Diameter of support tube: 73-115 mm
Fine adjustment of azimuth: ± 7 °
Fine adjustment of elevation: ± 15 °
Winding bar: No
