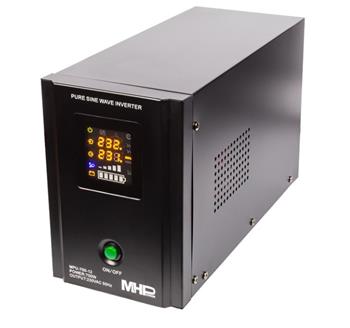

Backup power supply MHPower MPU-700-12, 700 W, pure sine

Backup power supply and voltage MPU-700-12 MHPower is suitable for long-term backups. It is an ideal device for its flexible use and robust all-metal version . The device has built-in overload protection, both when powering from the battery and from the network. The inverter output voltage has a clean sinus course . The maximum lasting power is 700 W .

In normal state, the appliances are powered directly from the network and the external accumulator recharge. In the event of a power failure, the backup power supply automatically switches the voltage to the voltage converter and starts to remove the energy from the battery. The switch is signaled on the display and is accompanied by an audio signal. After recovering the energy supply, the power supply will automatically switch back to the network and start recharging the battery again.

Technical parameters:

• Maximum rated power: 700 W
• Maximum capacity: 1000 VA
• battery voltage 12 V
• charging current 10 and
• charging voltage: 13.8 V +/-0.5 V
• AC input frequency: 45 Hz ~ 65 Hz
• switching time to backup: 4ms
• The output voltage range of the AVR voltage controller: from the home network 204-240 V, the 230 V drive (+-3#i6per#)
• Frequency at UPS output voltage 50 Hz (+-0.5 Hz)
• Overload protection (battery power): In case of overload 110# i6per#-130# i6per# of power, the output will turn off within 30 seconds. If overload is greater than 130# i6per#, the power supply is interrupted immediately.
• Overload protection (power supply from network): The device warns against overload until the fuse is burnt.

Physical Characteristics:

Operating Moisture	10# i6per# rh ~ 90# i6per# rh
operating temperature	0 ~ 40 ° C
product size	350 mm x 145 mm x 210 mm
Product Weight	7 kg
Color	black

Supported batteries: Gel, Agm, classic flooded
Undoked batteries: Li-on, Li-Pol, Lifepo etc.

Attention! The backup power supply only works when connected to an external battery. It should not be used without a connected battery. After connecting the battery, connect the main power cord to the socket (230V, 50 Hz) with grounding into the network. On the back of the source, connect the device you want to work in the event of a power failure. Follow the following order: Connect the battery, connect the main power supply, and then connect the appliance to the backup source. To turn on or off AC stress (appliance sockets) Press and hold the power button (ON/OFF) for about 2 seconds.
