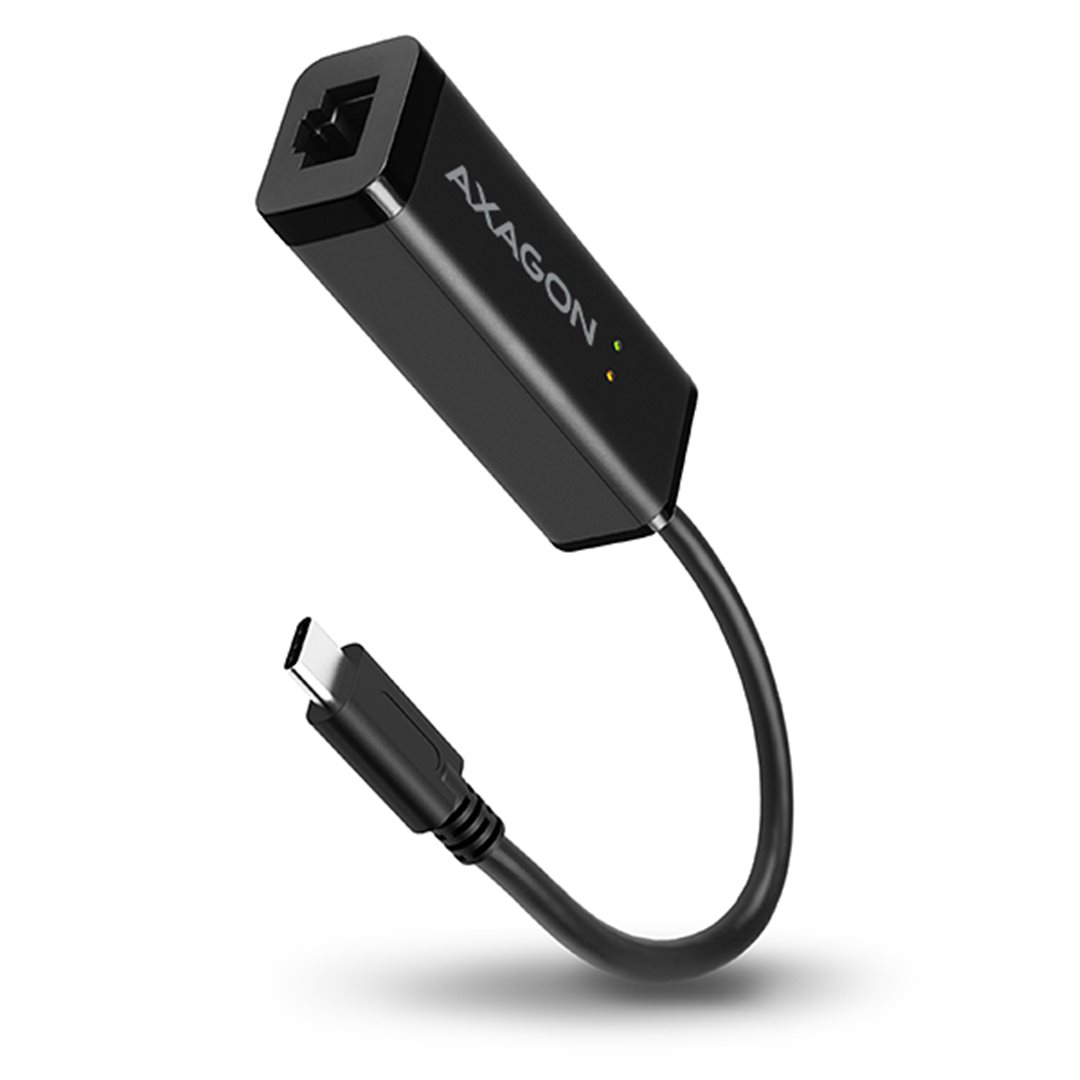

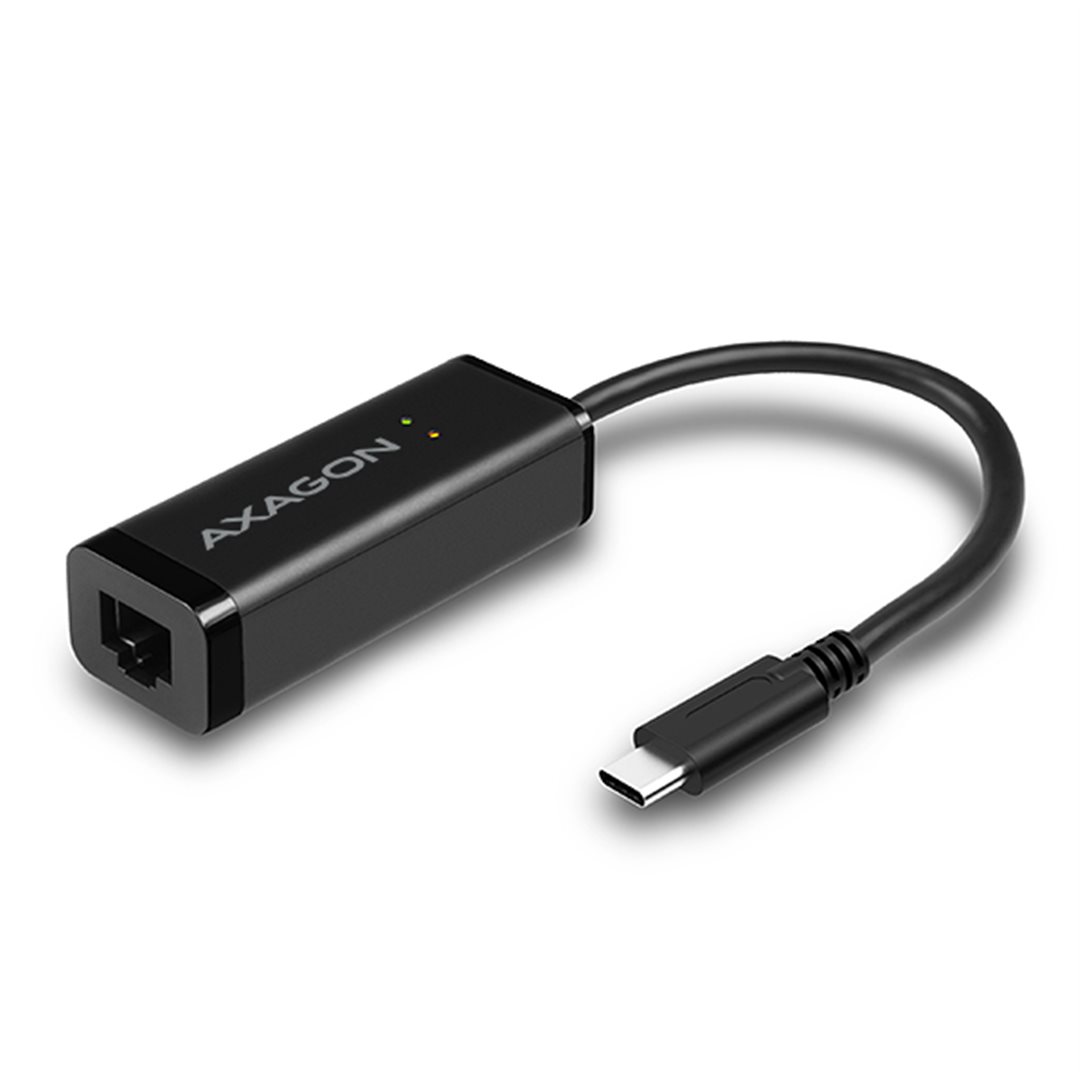

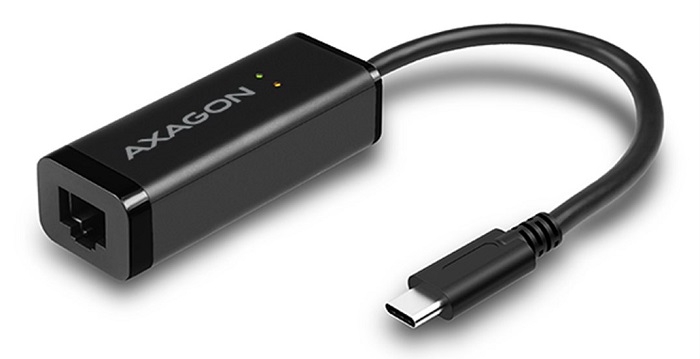

AXAGON ADE-SRC, USB 3.1 Type-C-external Gigabit Ethernet adapter

Compact high-speed adapter Axagon ADE-SRC easily converts USB-C 3.1 Gen 1 port on Gigabit Ethernet 10/100/1000 Mbit Port .
In addition to gigabit permeability, the network card offers a wide range of features such as IPv4/IPv6 Checksum to reduce CPU loads with controls, crossover detection and autocork, TCP LARGE SEND Offload, support of various Wake-on-LAN functions, VLAN work or advanced Power Management functions. In modern operating systems from Windows 8.1, the adapter above allows easy automatic installation without the need to connect to the Internet.

Gigabit network extends the computer with a fast network connection, complements the missing network RJ-45 connector, adds another network card or replaces the original non-functional network connection.
Support for current versions of Windows, Mac OS X and Linux operating systems allows it to be used for any desktop, laptop, or ultrabook equipped with a modern double-sided USB Type-C connector. Also, some Android phones and tablets, such as the Samsung S9+, can easily be connected to the Internet with a network ethernet cable.



input:

USB 3.1 Gen 1/USB 3.0 interface, backward compatible with USB 2.0 and USB 1.1.

Support for 12/480/5000 Mbit/s (Full/High/Super Speed).

Connection connector USB Type C Male (male) placed on a 15 cm long to adapter fixed cable.

output:

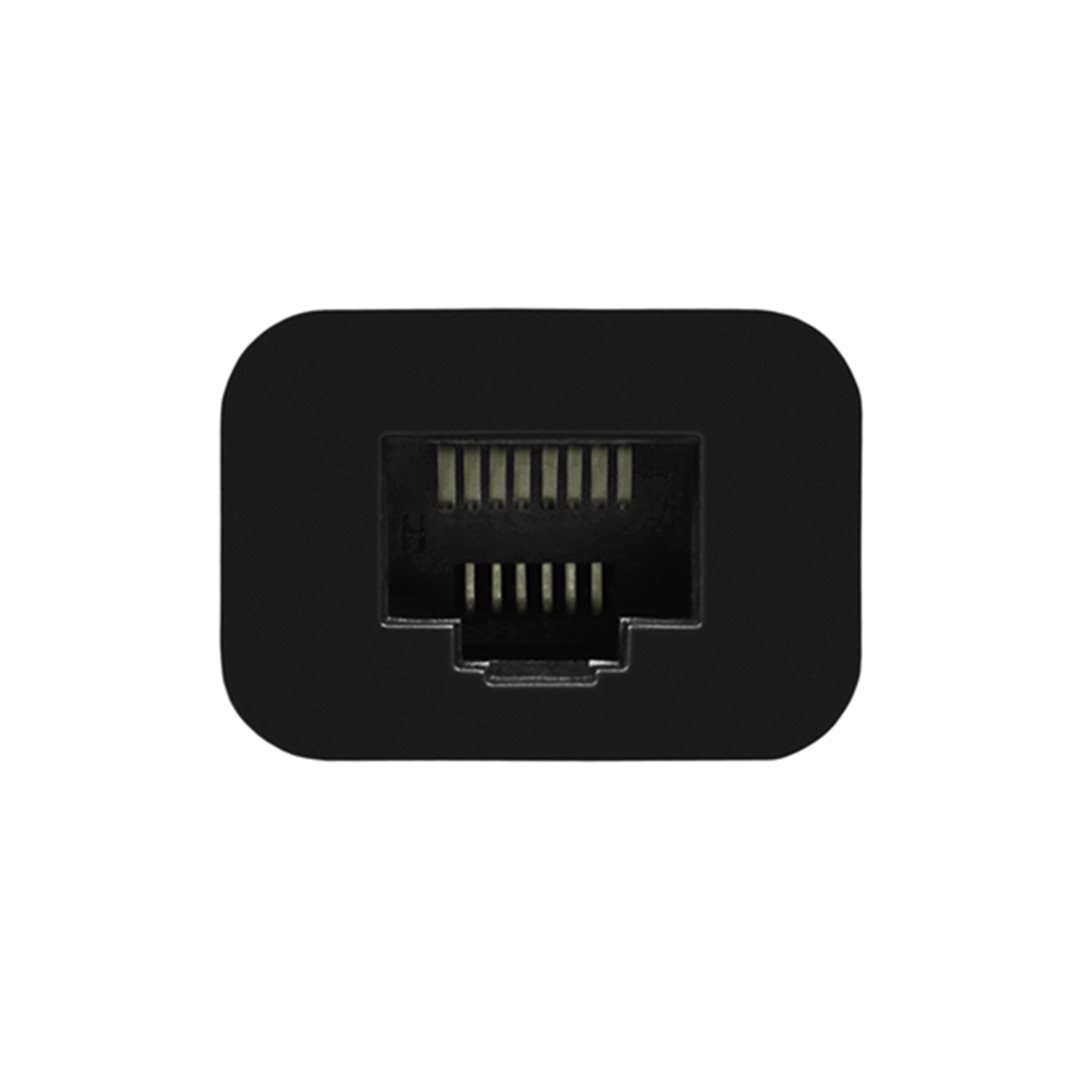

Gigabit Ethernet interface with RJ-45 connector for connecting UTP or STP cable.

Supported Ethernet transfer speeds 10/100/1000 MB/s.

Supported specifications IEEE 802.3 10base-T, IEEE 802.3U 100BASE-TX, IEEE 802.3AB 1000BASE-T.

10/100/1000 Mb/with autodetection.

IPv4/IPv6 Packet Checksum Offload Engine (COE) to reduce the processor load including IPv4 IP/TCP/UDP/ICMP/IGMP &IPv6 TCP/UDP/ICMPV6 checks and control sum generation.

Support TCP Large Send Offload V1 and V2.

IEEE 802.1P Layer 2 Priorities Encoding &Decoding.

IEEE 802.1Q VLAN TAGGING.

IEEE 802.3AZ EUE (EFFICIENT ETHERNET)-Reducing consumption in rest.

Jumbo Frame support.

Full-Duplex transmission support with IEEE 802.3x Flow Control and Half-Duplex transmission with back-press Flow Control.

AUTO MDI/MDIX-crossover detection and auto-correction eliminates the need for crossover cables.

Support for hardware Cyclic Redundancy Check (CRC) to detect transmission errors.

Support for pair swap/polarity/skew correction.

Other features:

Full support plug and play and hot plug.

CDC-CM support-for automatic installation of drivers across different axes.

Adapter power by USB bus (bus power)-no additional power supply is needed.

Two LEDs to indicate network activity and wiring adapter to USB and network.

dimensions 61 x 25 x 17 mm, USB cable length 15 cm, weight including USB cable 25 g.

Used the Realtek RTL8153 chipset.



Support Wake-on-Llan in different modes:

Sleep support and remote wake up via Magic Packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection, and Link Change Wake-up.

Support for the ECMA-393 Proxzzy® for Sleeping Hosts to manage network connection of sleeping guests using proxy servers.

Support for Realwow! It allows remote waking up through the Internet.

Advanced Power Management Functions:
The adapter supports advanced power management reduced loss at rest or lightweight network operation. It also promotes advanced energy savings when disconnecting Ethernet cable.

Advanced Configuration Power Management Interface (ACPI).

Support Power Management Offload (Arp &NS).

support Microsoft Always on Always Connected (AOAC).

Support Intel Converged Platform Power Management (CPPM).

Link Power Management (LPM) support.

Support Operating System-Directed Power Management (OSPM).

support IEEE 802.3AZ EUE (Energy Efficient Ethernet).

Supported operating systems:

MS Windows XP/Vista/7/8/8.1/10 and later, Windows Server 2003/2008/2012 /2016 and newer (supported all 32-and 64-bit versions of Windows), Mac OS X 10.6 and higher, Linux with 2.6.14 and higher, Android most versions.

(beware-to verify the manufacturer of Android device to see if the option of Ethernet is supported).

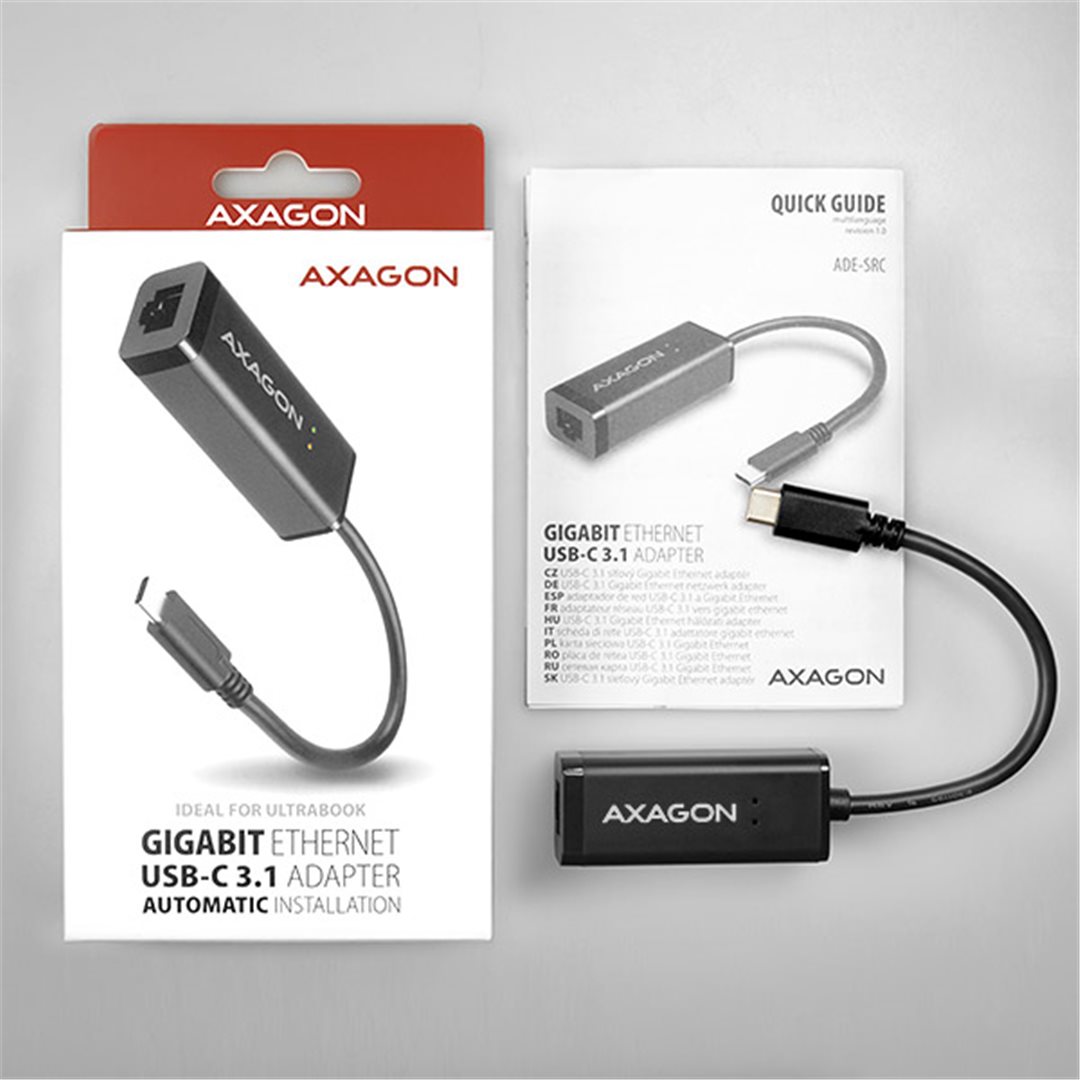

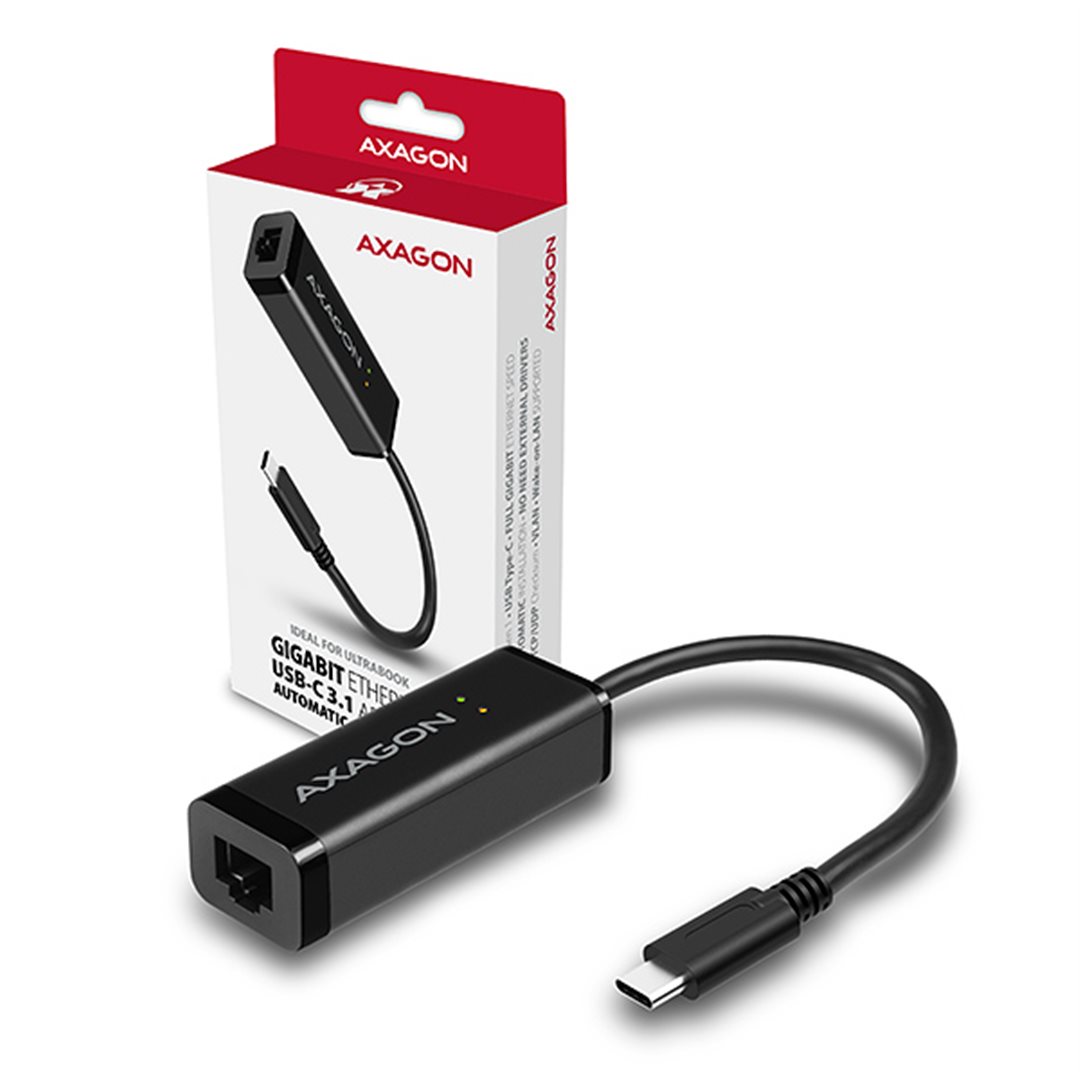

Package content:

USB-Gigabit Ethernet adapter with USB-C cable 15 cm permanently,

printed installation instructions
