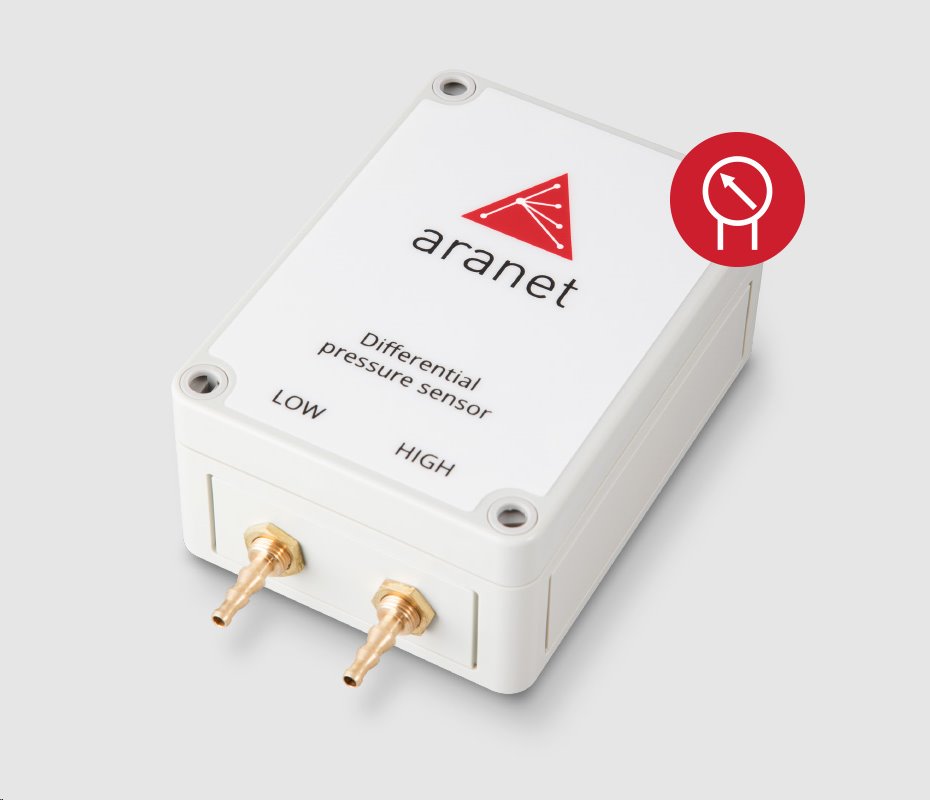

Aranet Differential Pressure Sensor, EU868

The Aranet differential pressure sensor is used to measure the difference in air pressure between two inputs. This sensor is commonly used in HVAC, building automation, clean rooms, the pharmaceutical industry and laboratories. Applications include air filter clogging detection, stairwell pressurization, air flow and pressure measurement with an efficient air distribution system. It can also be used wherever vacuum or overpressure needs to be maintained (eg clean rooms and laboratories).
& nbsp;

• The sensors are only compatible with Aranet base stations
• Measurement: Air pressure
• Measuring range: ± 500 Pa
• Resolution: 0.02 Pa
• Minimum detectable pressure: 0.02 Pa
• Accuracy: 3%
• Direct vision range: up to 3 km
• Transmitter power: 14 dBm
• Data transfer: 1, 2, 5 or 10 minutes
• Battery life: up to 12 years
• Degree of protection: IP65
• Dimensions: 154 x 94 x 43 mm
