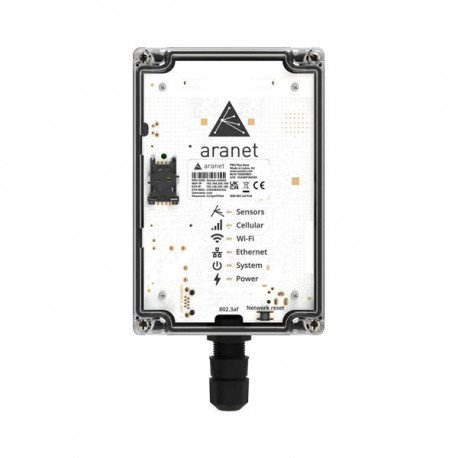

Aranet Base Station PRO Plus 12

Aranet PRO Plus Base Station is an industrial base station for the Aranet wireless network that functions as a local gateway, data logger and web server for up to 100 sensors (according to the purchased license) with a range of up to 3 km line-of-sight and integration support to superior systems using standard IP protocols. The Aranet PRO Plus Base Station 12 variant includes a license for 12 connected sensors.

Features:

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Wireless layer: proprietary Aranet protocol in the sub-GHz ISM band, two-way communication, typical range up to 3 km line-of-sight.

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Network capacity: 12 sensors in the basic license, expandable by software license to 50 or 100 sensors per base station.

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Communication interface: 10/100 Ethernet (RJ-45) with PoE support, integrated Wi-Fi 2.4 GHz for web interface access or network connectivity.

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Power: PoE IEEE 802.3af, typical consumption around 4.7W

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Server/software: integrated Aranet SensorHUB (HTTP/HTTPS) accessible via web browser, responsive UI, local database for long-term data recording (typically up to 10 years of history for the maximum number of sensors according to the set measurement interval).

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Data formats and export: export of values and historical data to CSV and other common formats, possibility of graphic display, comparison of sensors, setting of thresholds and alarms.

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Integration: support for integrations via MQTT, Modbus TCP/IP, BACnet IP, InfluxDB (according to purchased license).

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Operating conditions: operating temperature range approximately-40°C to +60°C, relative humidity 0-90% non-condensing.

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Coverage and design: IP67, durable housing suitable for indoor and outdoor use, industrial screw connectors for antenna, wall or mast mounting option.

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Dimensions: approx. 180 x 120 x 45 mm (without mounting elements and antenna).

• p]:pt-0[\u0026>p]:mb-2[\u0026>p]:my-0">

  Cloud connectivity: direct integration with Aranet Cloud (optional service) for central management of multiple base stations and long-term remote monitoring.
