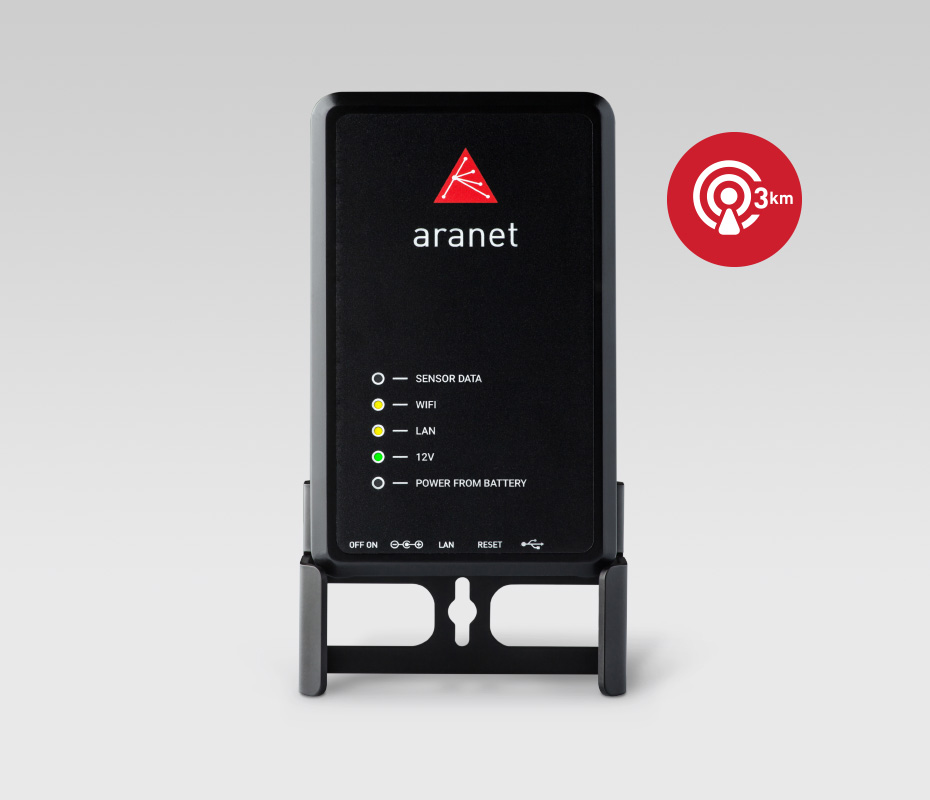

Aranet Base Station PRO, base station

Aranet PRO is an industrial solution for environment monitoring. With a base station and a set of wireless sensors, you can easily monitor entire large operations and areas - whether   classic monitoring of temperature, humidity, CO / CO2 / NH3 concentration or advanced variables such as exposure intensity, soil moisture, or sensitive weight sensors.

Depending on how many sensors need to be connected, the user can choose between three versions of Aranet PRO - Aranet PRO 12, Aranet PRO 50 and Aranet PRO 100. Wireless sensors can be deployed in a distance up to 3 km line of sight. Aranet PRO comes with free software or can be integrated into a Aranet Cloud for central management. The easy-to-use interface allows you to view, analyze and compare data in real time , set alarm thresholds, and export messages. The responsive design of the interface adapts to your smartphone, tablet or laptop.

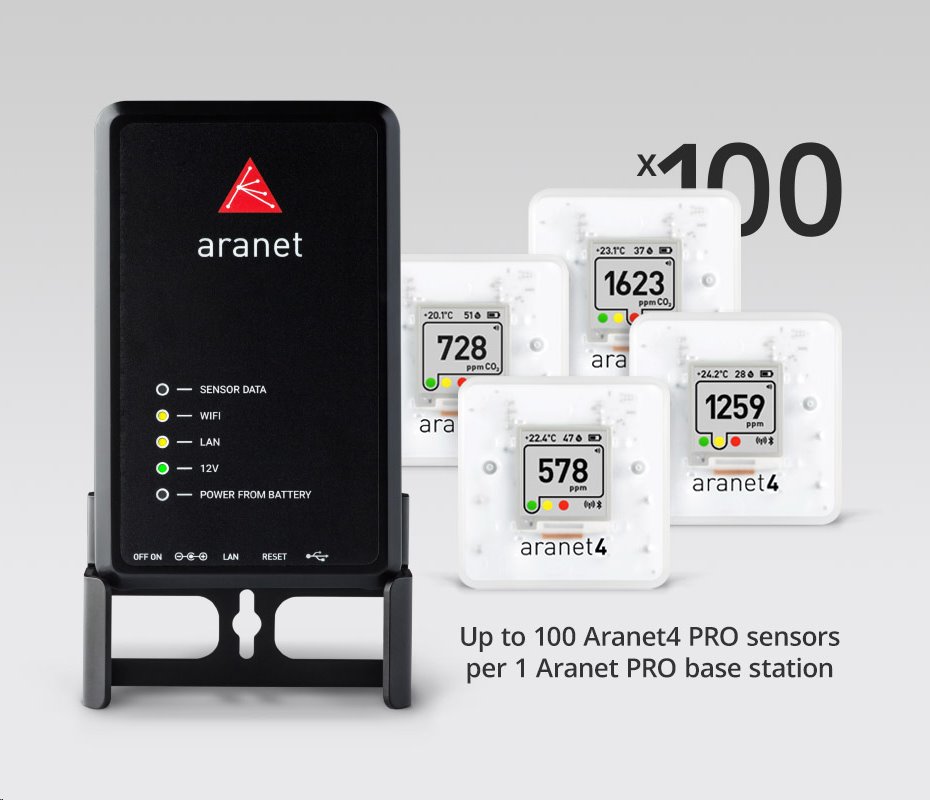

  The Aranet Base Station PRO12 allows the operation of up to 12 sensors. If necessary, you can use a license key to unlock the use of more sensors.

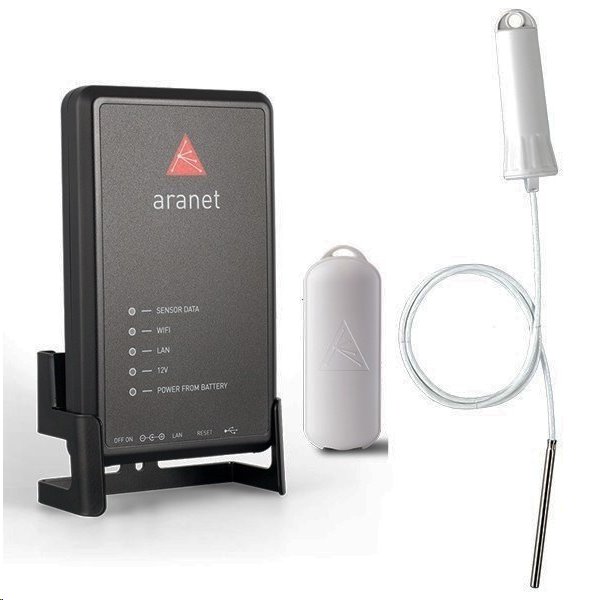

You will find a selection of compatible sensors at the bottom of the page in the related accessories; for a complete overview, we also recommend a product datasheet or a consultation with the product manager.


Technical specifications


Maximum number of sensors	12
Alarms forwarding method	Email
Optionally using	SMS notification via USB modem
Internal log memory	10+ years for 100 sensors
Used channels	Channel 1: 868.10 MHz
	Channel 2: 868.30 MHz
	Channel 3: 868.50 MHz
User Interface	Aranet SensoHUB
Accuracy	Temperature: 0.1 °
	Humidity: 1%
Data protection	User accounts with passwords, encryption
Interface	Ethernet interface, WiFi (2.4 GHz)
Power	AC / DC adapter
	12V PoE
	Built-in battery (backup time   30min)
Operating temperature	0 ° C to 40 ° C
Operating humidity	0% to 100%
Dimensions	107x170x26 mm
Ports	1x 12 VDC, 1x Ethernet, 1x USB A
Weight	190g
IP coverage	IP40
Package Contents	AC / DC adapter, mounting frame
