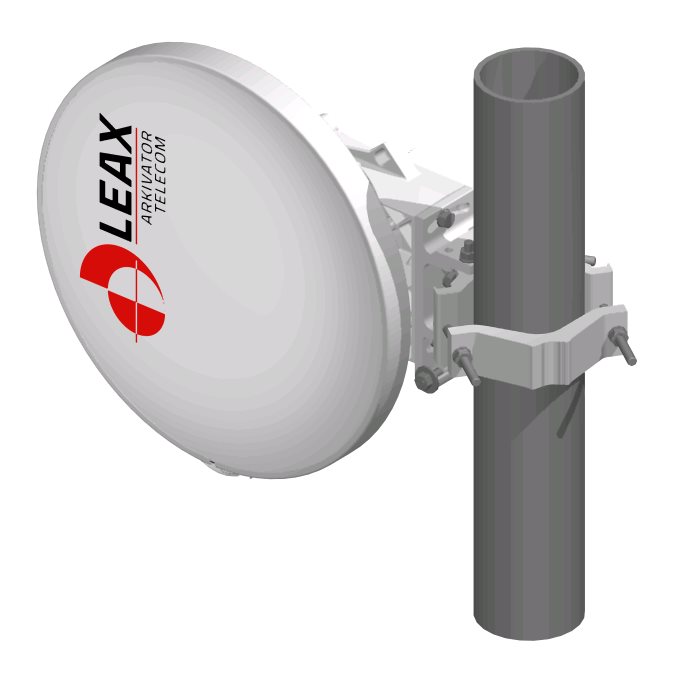

Antenna Arkivator 42 GHz 60 cm

The new generation of the highest quality antenna from the Swedish manufacturer Leax Arkivator. Compact, lightweight and robust parabols are designed to meet the highest requirements for easy installation and handling.

Parabol ARKIVATOR Quality has been verified in tests since 1998.

patented principle of construction combines excellent suppression of side lobes, low cross polarization, high profit and small dimensions with low weight. The main advantages include high weather resistance and reducing the requirements and costs of mast and installation.

working frequencies, band:

• 40.5-43.5 GHz

Technical parameters:

• Polarization: vertical or horizontal (linear) according to the assembly of the Ray or Ray2 unit
• profit: 46.8 dB
• angle: 0.9 °
• f/b ratio: 64 dB
• VSWR/RETURN Loss: 1.3: 1/17.7db
• Cross-Polar Discrimination: 30 dB
• tilt: mechanical
• cover: UV durable PC
• standards: Class 3

input:

• Debate waveguide

working conditions:

• temperature:-40 ° to +55 ° C
• Holder diameter (rods): 50-120mm
• Moisture: Relative humidity 15-100# i6per# (Non-Condensing)
• Wind Load: 180 km/h
• Ice Load: 25 mm

Dimensions:

• diameter 60 cm (antenna), depth 275 mm

Weight:

• 6.7 kg

delivery content:

• 1x antenna with a irradiator and Radom
• 1x antenna holder per mast
