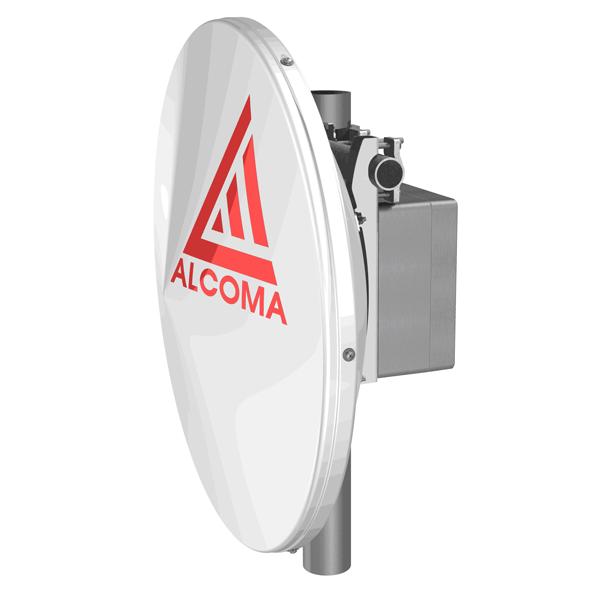

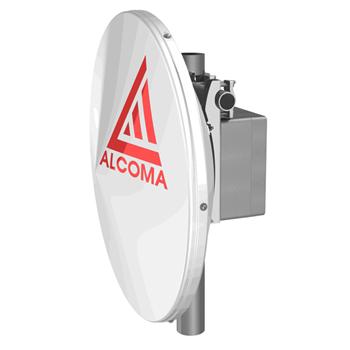

Alcoma AL10D V32 with 32Mbps/s and 65cm antennas

AL10D   V32 are point-to-point microwave links designed for cheap and easy construction of the last miles of telecommunication networks.

ACTION CONNECTION-PRICE INCLUDES:

Extended Warranty 48 Months
SLA for 6 Months Free
Guarantees Upgrade to 88Mbit for $ 59,000

Limited Series 100 Pieces !!! Production ended.

This link may already be 1 610,-/month. We also offer the possibility to finance a pay-as-you-go payment without raising-in the form of 6 monthly installments.

Antenna systems can be arbitrarily combined to achieve optimal resultant link parameters. Please contact

For calculation and design of the connection please contact us. "Demand form" here . &Nbsp;

Approximate range of AL10D &V32 for 10 GHz band with ME 65cm antenna
at 3dBm. Range is reported in km for the 20 dB reserve and BER = 10 ^-6

16 Mbit/s baud rate   - 12km
Bitrate 32 Mbit/s-   8km

AL10D   V32 is the next generation of the proven link   AL10D MEII with the same surveillance system and a new parabolic antenna of 65cm with OPN. All transmission parameters and link reliability remain. The link operates in the free band 10.3-10.6 GHz according to VO-R/14/12.2006-38, its construction is subject to no registration or notification duty and operation is not charged.


Advantages of 10.3-10.6 GHz band connections
Joints always work at full speed
Connection is fully duplex
Connection error is less than 10 ¹¹
While adhering to the basic construction rules, several tens of junctions can be placed at one point without affecting each other


Why use AL10D V32?
Verified high operational reliability
High resistance to interference from other connections and other types of interference while complying with standards for both radio and electromagnetic emission standards (joining construction rules does not interfere with other communications, radio amateur broadcasting and does not adversely affect operation of other electrical equipment)
Easy and fast assembly, compact design without connectors and indoor units
Roll out of the surveillance system including the possibility of re-aligning both sides from one location
Change polarization by turning the outer unit by 90o
Preservation ASD supervision and diagnostics, SNMP surveillance
4FSK modulation, less bandwidth, adherence to recommended channel table = > possibility to mount multiple connections
One S-STP cable cat. 7 transmits user data and power to external drive

Ethenet interface properties:
Ethernet interface speed control from 1024 kbps to 32 Mbit/s
VLAN transparent
Option to enable autonegotiation or manually set Ethernet parameters
Track delays are in order of magnitude in ms even in full load
