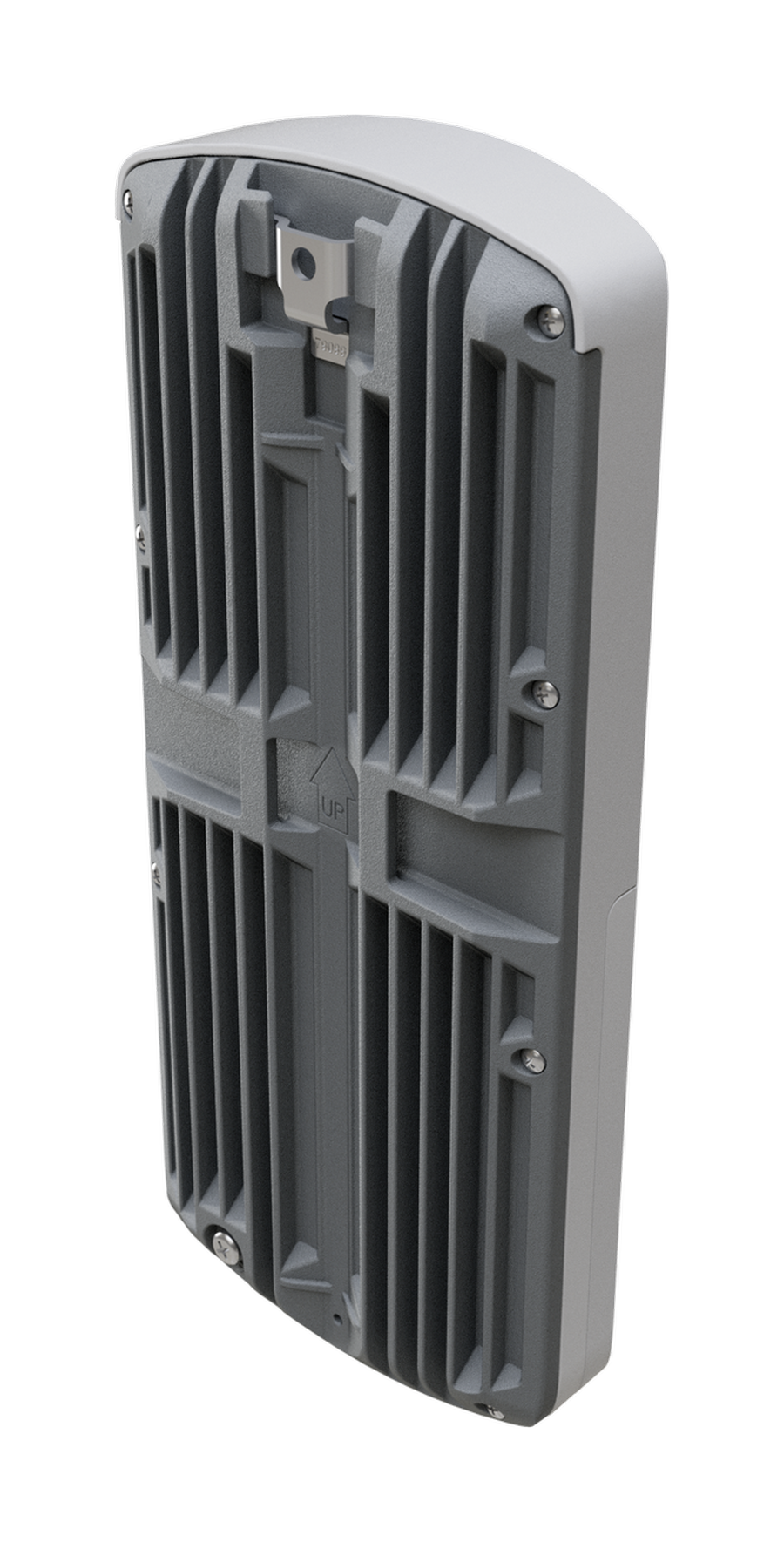

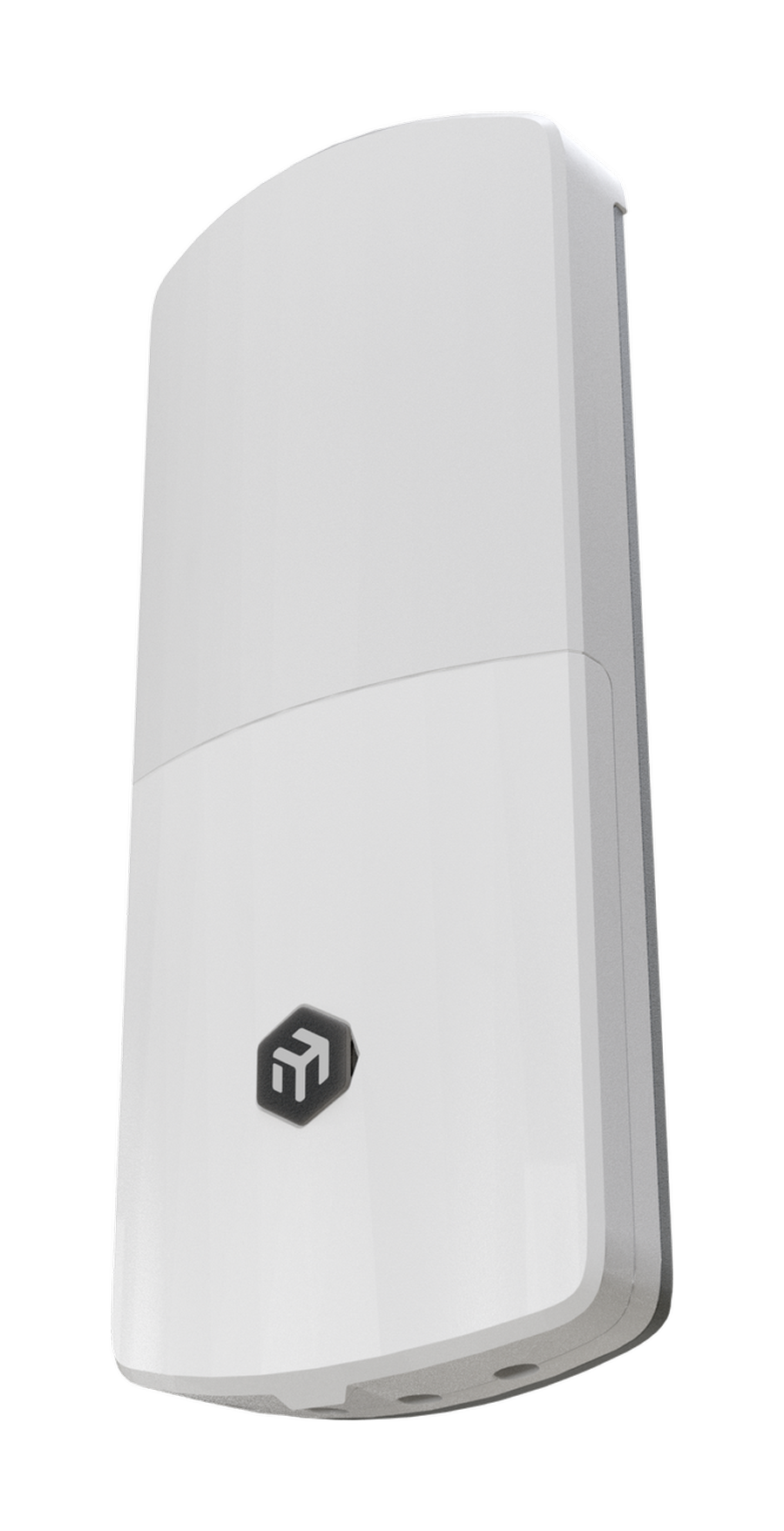

The MikroTik wAP ax LTE7 kit is an outdoor dual-band access point with an integrated Category 7 LTE modem and support for the latest Wi-Fi 6 (802.11ax) standard. The device combines a powerful wireless connection with mobile connectivity and is designed for demanding outdoor installations-from Chat in mountainous areas, through gas stations, to bus stops. The new generation brings twice the upload speed (up to 100 Mbps), extended frequency support including bands B28 (700 MHz) and B32 (1500 MHz), and an improved IP66 weatherproof housing with anti-vandal elements. Dual-band 2x2 MIMO radio with high antenna gain (6 dBi for 2.4 GHz, 7 dBi for 5 GHz) ensures robust coverage of the entire plot. Thanks to the modern IPQ-5010 dual-core ARM processor and RouterOS v7, it offers stable performance even under VPN load and supports CAPsMAN for centralized management of a larger number of devices. The device is equipped with two Gigabit Ethernet ports, one of which supports 802.3af/at PoE-in for flexible power supply. Alternatively, a standard DC jack (12-57 V) can be used. The R11e-LTE7 LTE modem with support for carrier aggregation (2×CA) ensures a fast and stable mobile connection in densely occupied networks.

Features:

• Dual-core CPU IPQ-5010, 800 MHz, ARM 64bit
• Wi-Fi standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6), 2.4 + 5 GHz, MIMO 2x2
• Antenna gain: 6 dBi (2.4 GHz), 7 dBi (5 GHz)
• LTE category: CAT 7 (DL: 300 Mbps, UL: 100 Mbps)
• FDD bands: B1/B3/B5/B7/B8/B20/B28/B32, TDD bands: B38/B40/B41, 3G bands: B1/B3/B5/B8
• Gigabit Ethernet ports: 2×
• Power supply: PoE-in: 802.3af/at (18-57 V), DC jack: 12-57 V
• Maximum consumption: 13 W
• Dimensions: 229 × 113 × 43 mm
• Coverage: IP66 weatherproof

Package contents:

• wAP ax LTE7 kit unit
• 24V 0.8A power adapter
• Gigabit PoE injector
• Hose clip
• Mounting kit K-95
