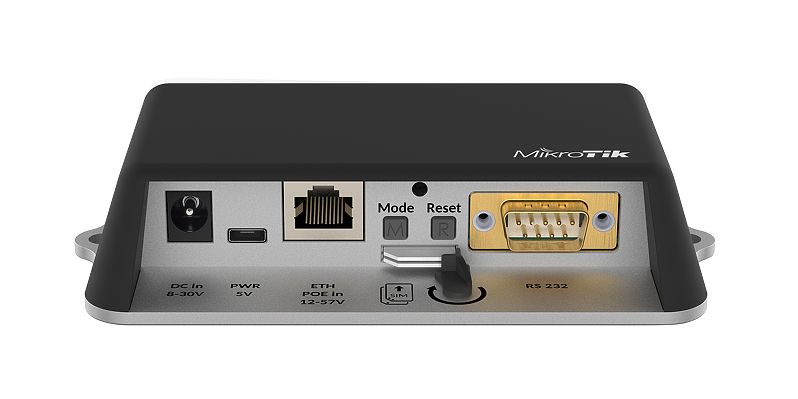

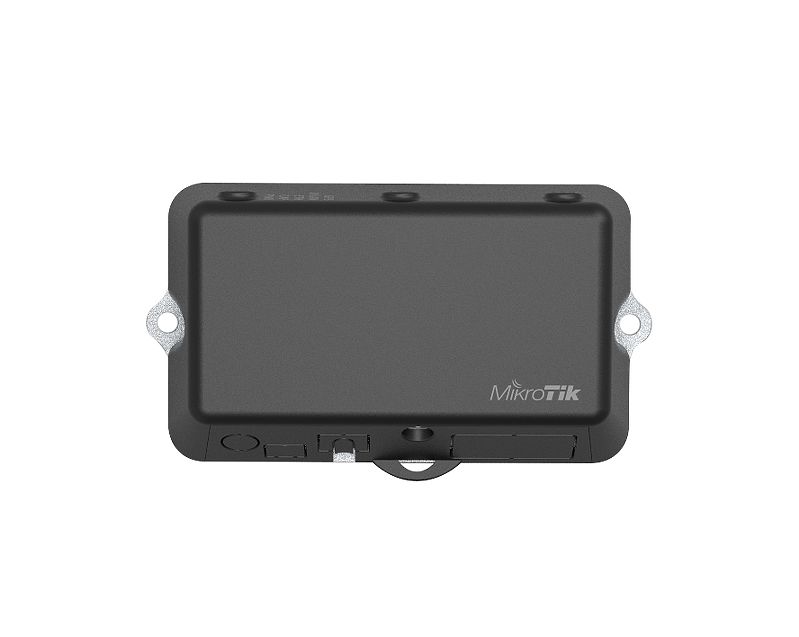

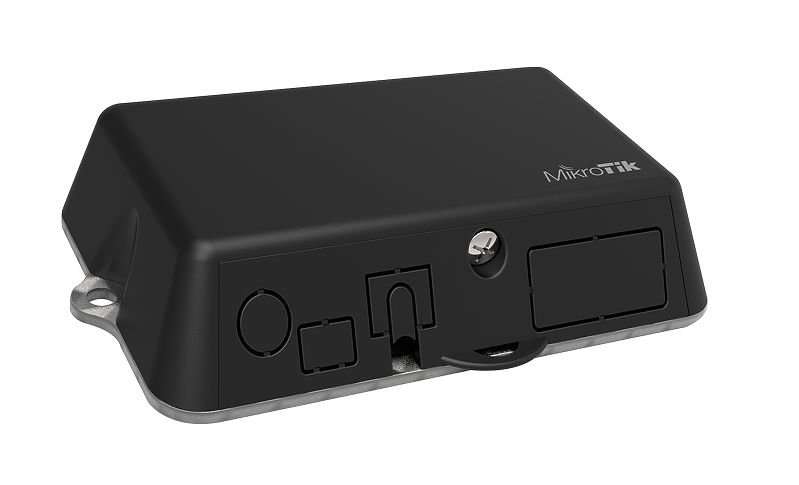

Ltap Mini LTE Kit is a very small, waterproof wireless Access Point in a black robust case with built-in LTE mini-E card also supporting older 2G and 3G networks.

For wireless communication with LTAP mini is integrated 2.4 GHz Dual-Chain wireless part supporting standards 802.11b/g/n with up to 300 Mbps. ltap mini LTE is also equipped Debuging, two SIM slots and GPS module.

parameters

name	value
Frequency:	2.4 GHz, LTE
WiFi Standards:	802.11n, 802.11b/g
WIFI transfer speed-2.4GHz[mb/s]:	300
Transmitting power 2.4GHz[dbm]:	22
2.4 GHz outside:	2 x 2
Antenna type:	built-in
Number of built-in antennas:	2
antenna profit[dbi]:	<2
supported LTE channels (MHz):	800, 900, 1800, 1900, 2100, 2300, 2600
version:	Desktop, outdoor
operating temperature[° C]:	-40 to 70
depth (mm):	77
width (mm):	139
height (mm):	29
CPU:	QCA9531
Number of CPU cores:	1
RAM (MB):	64
CPU Frequency (MHz):	650
Storage size (MB):	16
serial port:	RS 232
LAN speed:	(1) 10/100 Mbps
SIM SLOT:	Yes
Max. Energy consumption[W]:	9
Power type:	DC connector, POE, USB (5 V)
POE types:	Input
Power supply via connector/terminal:	5 in DC, 8 .. 30 in DC
IPv6 support:	Yes
operating system:	ROUTEROS-L4

Package content:

device (fitted with LTE mini-card mini-card R11E-LTE)

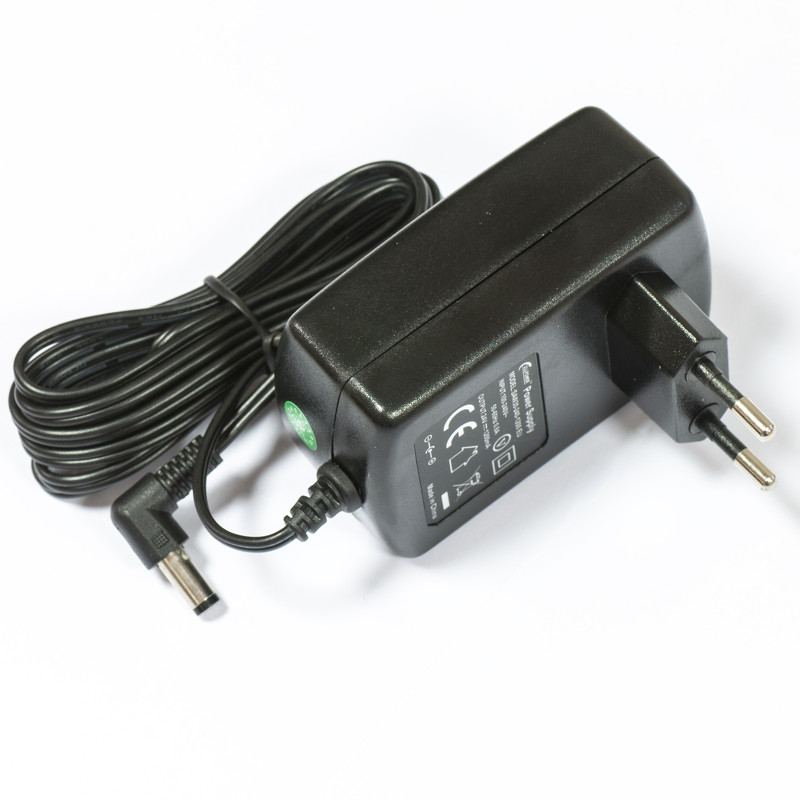

power adapter 24 V/1.2 and

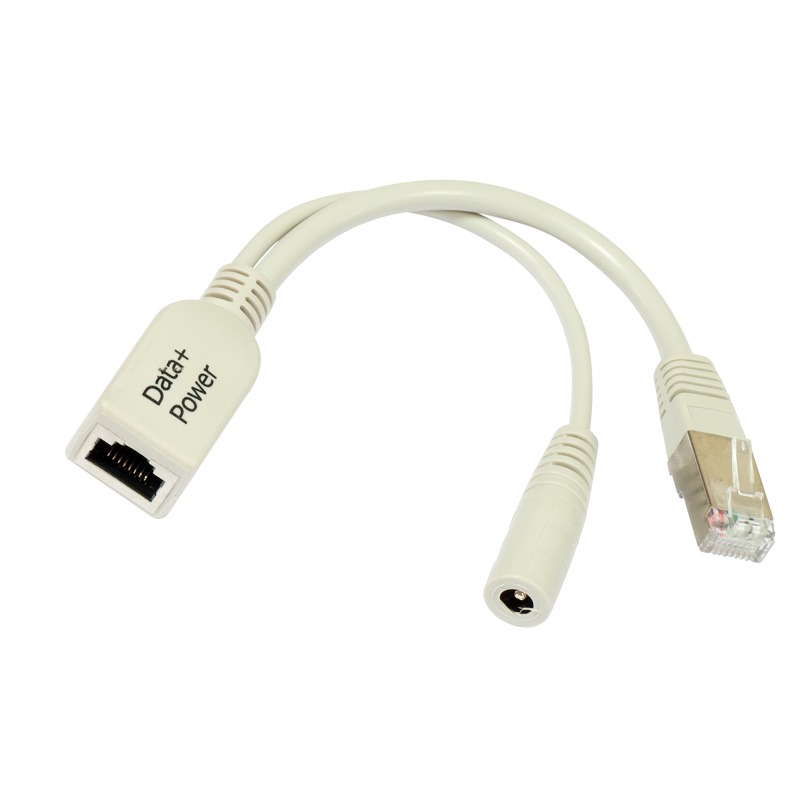

Poe injector
