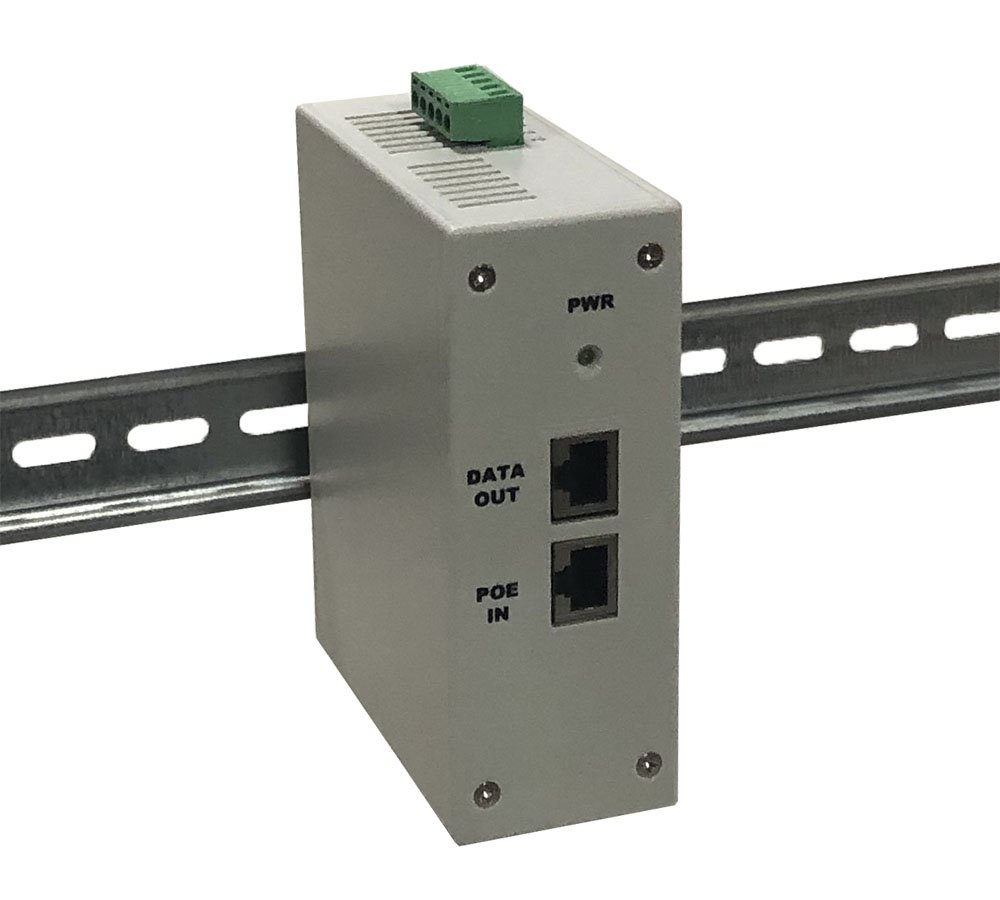

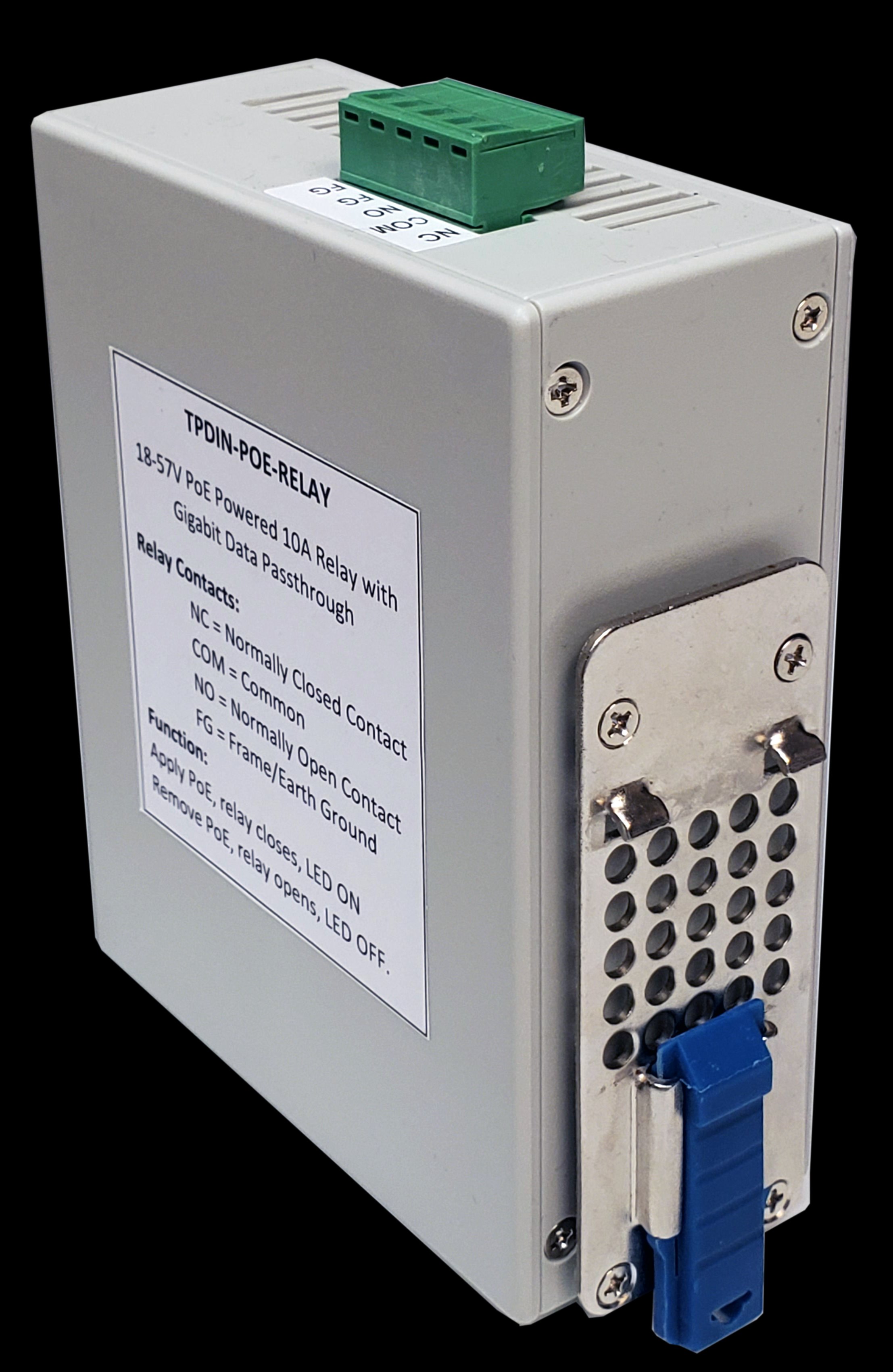

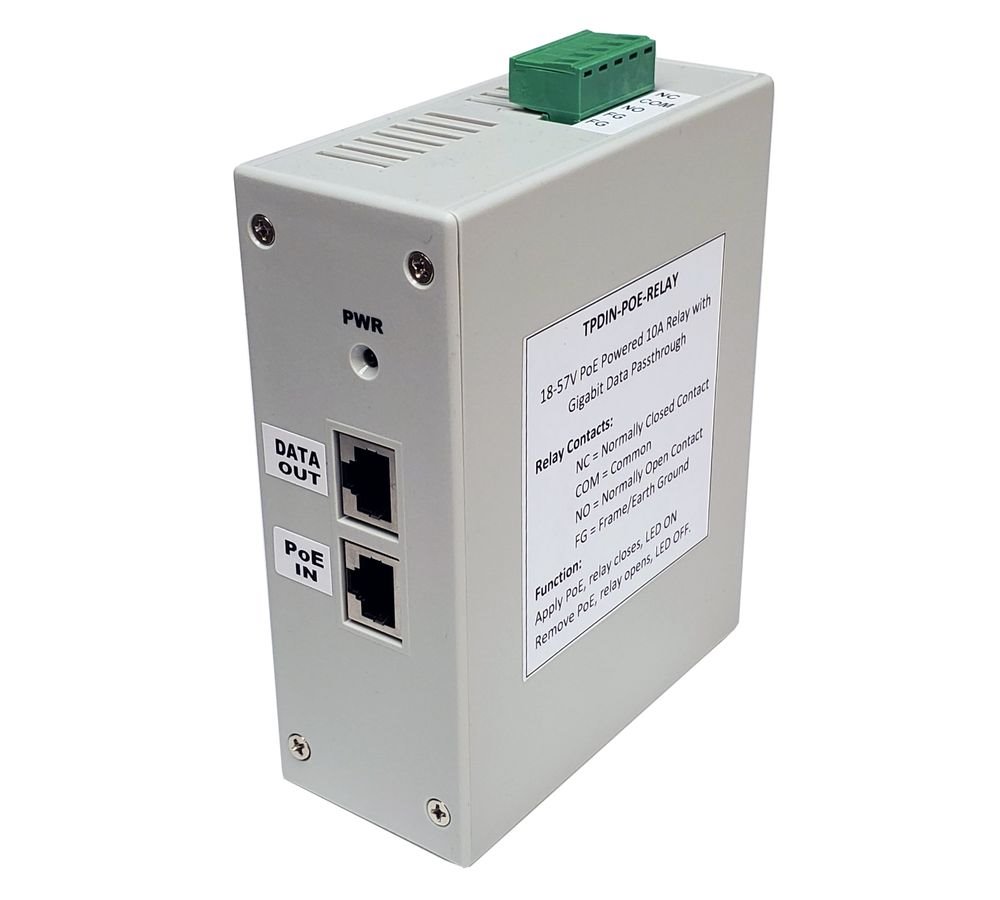

Tycon TPDIN-POE-RELAY

The TPDin-Poe-Relay relay is a unique device that offers a smart way to move up to 10A remotely using a conventional POE switch . The principle of functioning is simple and brilliant-if the POE is connected to the module, the relay also closes and the signal LED lights up. After disconnecting the power supply, the relay turns off and the LED goes out. There are two options to connect the device-normally closed and normally open, both logical states can be used.

The unit is equipped with gigabit data through port (including POE passage) with overvoltage protection , which protects data connection up to 30 kv.

Assembly is easy thanks to the din molding option .


Function:
• POE power, no additional external power supply
• Supports POE 802.3AF/AT/BT or Passive PoE 24/48V
• Normally open and normally closed relay 10 and
• Gigabit Data Passsthre Port with Surgery Protection
• Wide operating temperature range:-40 ° C to +70 ° C
• Installation on the DIN bar
