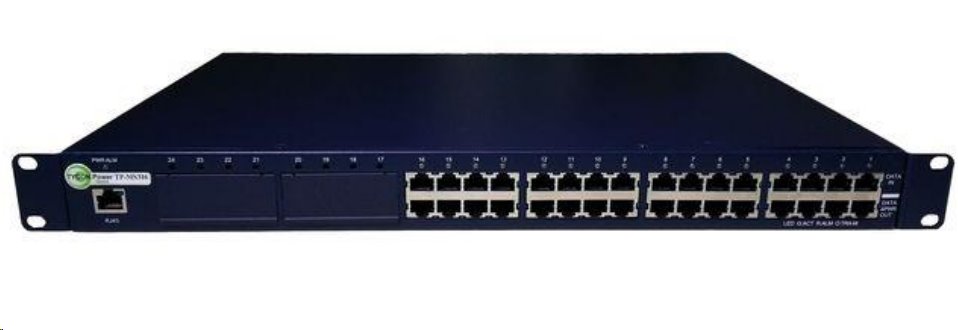

Tycon TP-MS316 16 Port Gigabit 802.3af Midspan Injector, AC/DC

Features ; IEEE 802.3af Gigabit Midspan PoE Injectors ; Up to 16.8W per Individual Port ; 1U Standard Rack Mount (19"and 23") ; Managed through the RJ45 front panel ; Supports Passive PoE 48VDC output ; Accepts AC or DC input ; ; Ap...More information

Producer

TYCON Power

Part No.

TP-MS316

Code

00034588

Warranty

2 Year

Availability

Availability in stores

Order

Your price exc. VAT

20 750 Kč exc. VAT

VAT

21%

Your price inc. VAT

25 108 Kč inc. VAT

Ask for a better price

Description

PoE power sources/TP-MS3XX injectors are a great solution for locations where multiple devices need to be powered at once and have an overview of their condition, or turn them off and turn them off remotely. In addition to supporting obligatory 48V POE, these sources are fully compatible with the IEEE802.3AF standard and support Gigabit Ethernet.

Supplied software allows you to configure individual ports and display the port of the Ethernet network. Ports can be allowed/disable and configured for the forced POE (passive POE) or IEE802.3AF detection. POE power (48 V) comes to pins 4.5 (V +) and 7.8 (V-). The maximum power on the port is 17W and the total power consumption is 268 W. Individual outputs are protected against overload and short circuit.

The source is available in several variants in terms of ports, or even in the version with 802.3AT POE.

POE according to IEEE 802.3AF or passive
gigabit ports
to 16.8 W on individual port, 268 W max overall
Individual outputs are protected against overload and short-circuit.
1U Standard mounting into a seagull
remote management via Ethernet
power supply 230 V AC or 48-56 in DC

Specifications
Ethernet standards	IEEE802.3/IEEE802.3U/IEEE802.3AB (10 BASE-T/100BASE-T/1000BASE-T)
POE STANDARD	IEEE802.3AF OR 48VDC PASSIVE POE
rj45 ports	16x data-in; 16x Data/Poe Out
Management Port	1x RJ45 port
MAX POE Power input	16.8W per port, 350MA @ 48V
POE protection	overheating, short circuit, overvoltage, undervoltage
LED signaling	POWER ON (GREEN ON)/POWER ON ALARM (RED ON)/POE POWER ON (GREEN ON)/POE Detect Error (Red On)/Poe Unknown Device
AC input	100 ~ 240VAC, 50/60Hz
DC input	-42VDC to-57VDC
Max Power	268W
temperature tozsah	0 to +65 ° C (32 to 149 ° F)
Max Moisture	UP to 95# i6per# (Non Condensing)
Dimensions	430 x 290 x 44mm/1U Rack Mount 19"
Weight	3,9kg

Parameters

Physical parameters
DC Output Voltage (V)	48
Input Voltage (V)	230, 48
Management	Yes
Network interface (Mbps)	10/100/1000
Ochrana proti podpětí	Ano
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Operating Temperature	0° až +65°C
Output Power (W)	268
Over temperature Protection	Ano
Depth (mm)	290
Design	Rackmount
Height (mm)	44
Počet LAN portů	16
Weight (kg)	3.9
Width (mm)	430
PoE parameters
Number of PoE ports	16
PoE standard	Pasivní, 802.3af
Powering
PoE	Yes
PoE budget [W] / port	16.8
Typ zdroje	PoE
