SAMSUNG DROP cable, 4 threads singlemode 9/125, G.657A

FONT-SIZE: 9pt; FONT-FAMILY: 'Tahoma', 'sans-serif'"> Optical single-mode 4-fiber universal (indoor/outdoor) ) Samsung DROP FTTx self-supporting cable. BOX . Used G.657A fibers are compatible with conventional G.652D low-waterpark fibers and allow bending radius up to st1: metricconverter w: st ="on" ProductID ="2.4cm"> 2.4cm allowing the cable to work like a regular UTP cable. The cable is supplied in a paper box with a coil embedded in metal bearings with a coil 1000 m (like metallic cabling for structured cabling). The cable allows installation by a curtain up to 200m (Kevlar yarns). The cable has a diameter 3 mm .

Main features:
Number of threads: 4
Thread type: Single mode 9/125 microns, G.657A
Attenuation: < 0.4 dB/km
Kevlar yarn support, high tensile strength (500 N)
UV resistant casing
Small cable diameter
Small bending radius-2.4 cm
Branded
Available in a box

Usage:
Outdoor/internal installation
Self-supporting, curtains up to

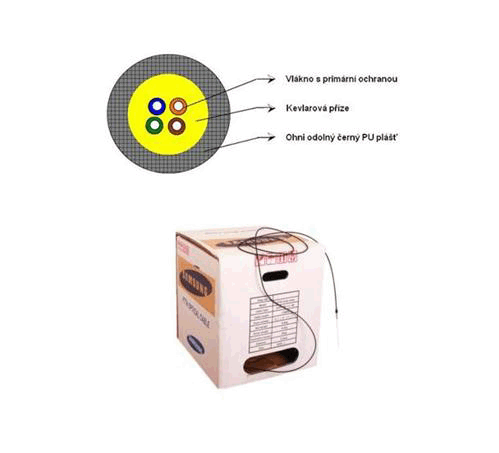

Cable Design:
Number of Threads: 4
Thread Color: blue, orange, red, green
Outer sheath: PU (Polyurethane) meeting LSFROH parameters, water resistant, UV resistant
Tension elements: kevlar yarn
250 µm primary fiber

Mechanical properties:
Outside diameter: 3 mm
Weight: 7.6 kg/km
Minimum bending radius: 2.4 cm
Maximum tensile strength: 500 N

Operating conditions:
Operating and installation temperature:-30 ° to + 60 ° C
Storage temperature:-40 up to + 70 ° C

: 36,5 x 34,5 x 32 cm
Draw: 1000 m
