MikroTik RouterBOARD LHGGR\u0026FG621-EA, LHG LTE6 kit 2024

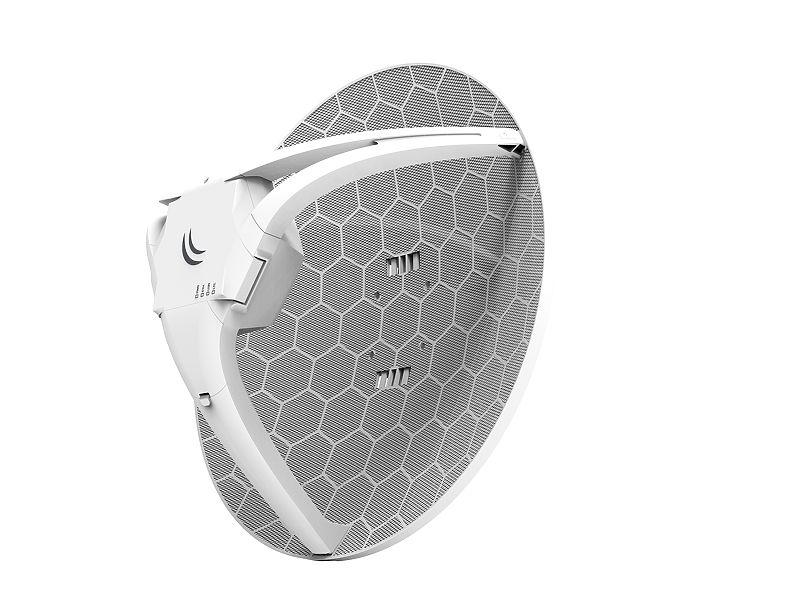

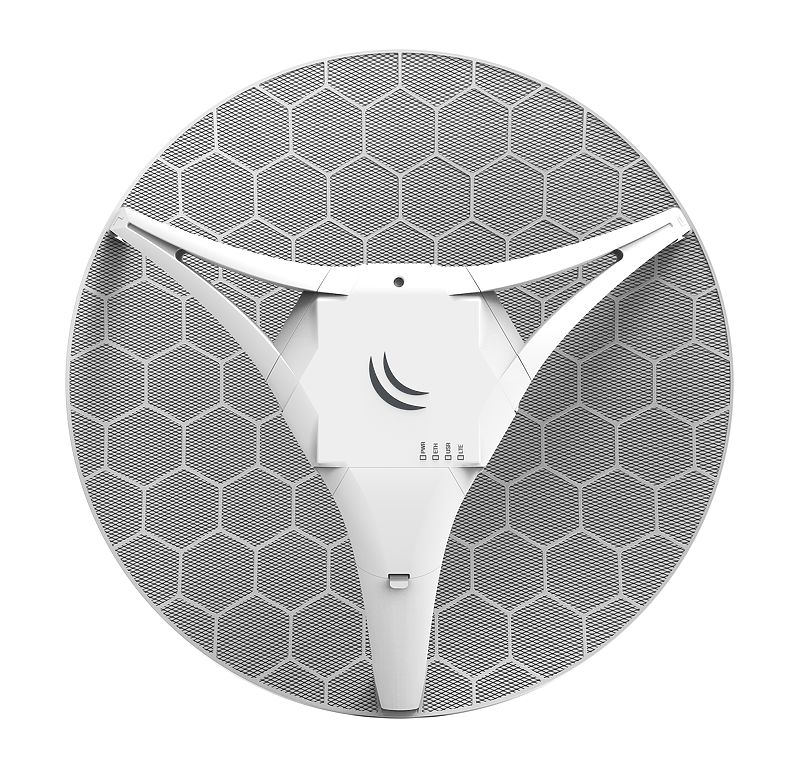

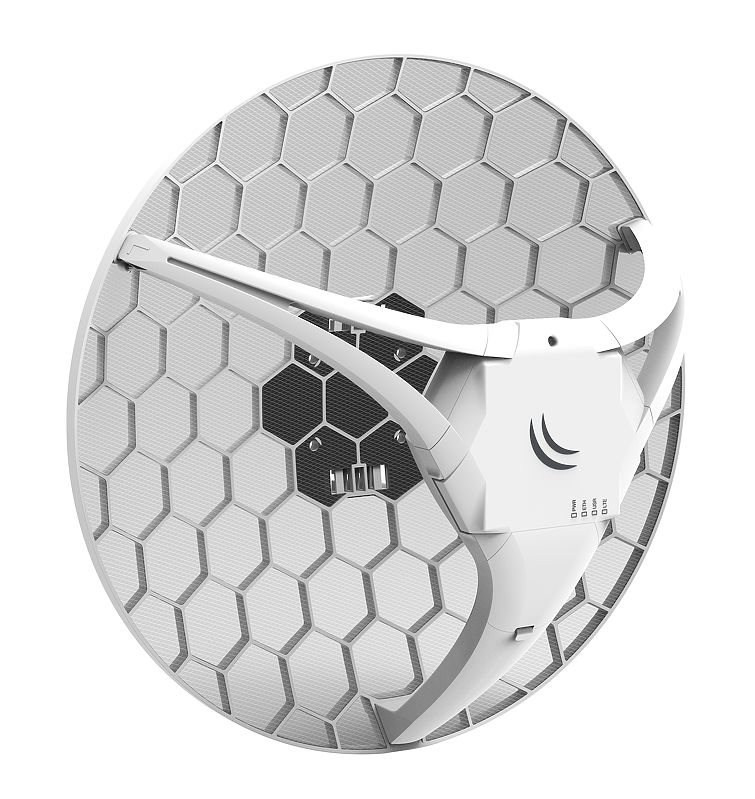

LHG LTE6 KIT is a device used for connecting to a mobile 2G/3G/4G/LTE network . Put it outside on a mast or at any high place and connect where they don't have a signal. Thanks to the large high profit antenna, the device can connect to the transmitters even in extreme rural locations, allowing you to provide access to the Internet even in places where nothing else is available.

The unit is equipped with one Ethernet port, has a built-in high-quality 6-range 6 for speed to 300 Mbps download and 50 Mbps upload



parameters:

name	value
wireless frequencies:	lte
SPEED. angle in the azimuth plane (-6 db)[°]:	25
SPEED. Angle in elevation plane (-6 db)[°]:	25
Antenna type:	built-in
Number of built-in antennas:	2
antenna profit[dbi]:	17
Integrated 4G/LTE radio part:	Yes
Supported 4G/LTE channels:	1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (12) 700 MHz, (41n) 2500 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (39) 1900 MHz
version:	Outdoor
buttons:	Reset
operating temperature[° C]:	-40 to 60
Dimensions W x H x H (mm):	391 x 391 x 227
RAM[MB]:	256
CPU:	88F3720
CPU Frequency[MHz]:	800
Number of CPU cores:	1
SIZE SIZE[MB]:	16
LAN speed:	1x 10/100/1000 Mbps
Number of SIM slots:	1
Power type:	POE
POE types:	only poe-in
Power via POE:	802.3AF, 802.3at, 18 .. 57 in DC
Max. Energy consumption[W]:	8
Operational mode:	3G/4G router
operating system:	ROUTEROS V7-L3
IPv6 support:	Yes

Package content

• device

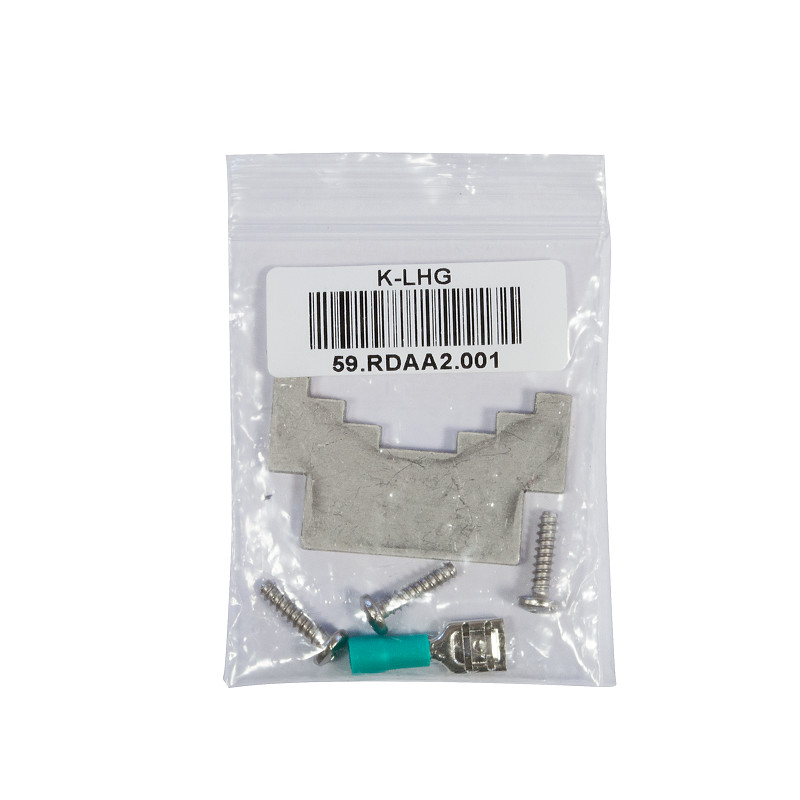

• Kit to attach to the mast

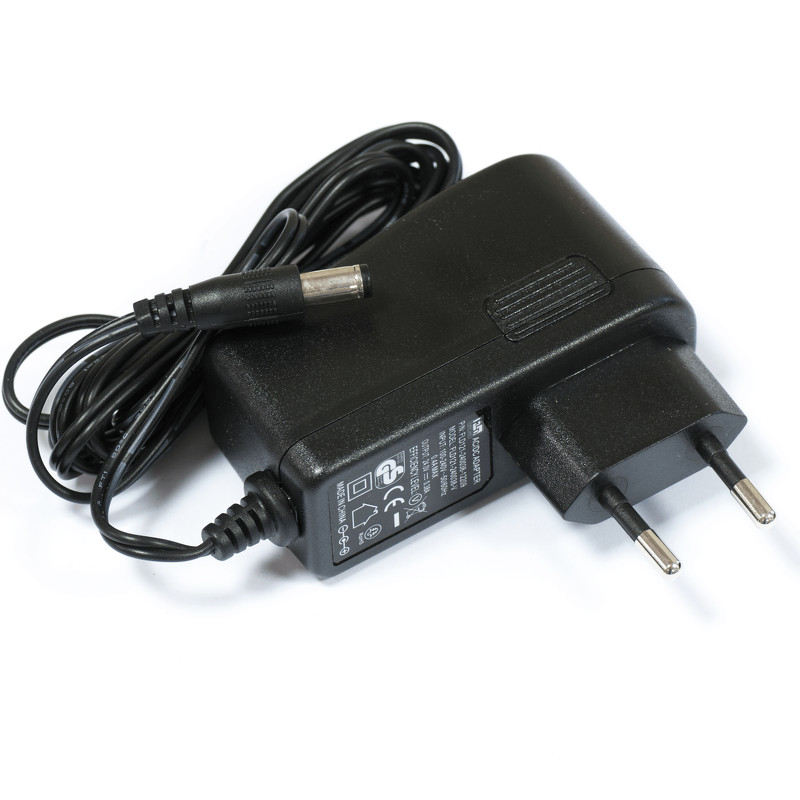

• power adapter 24 V/0.8 and

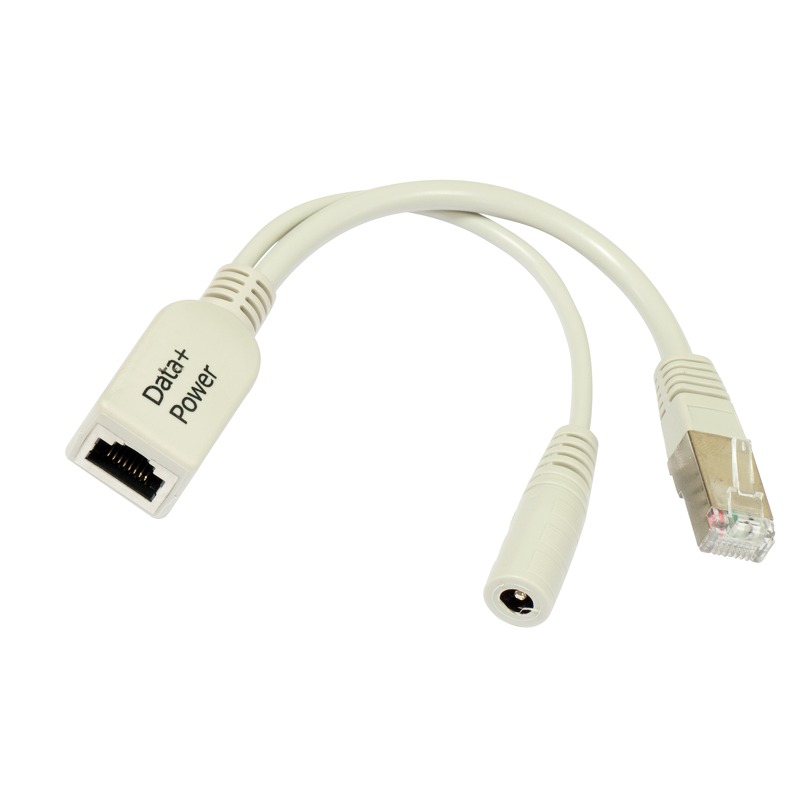

• POE Injector

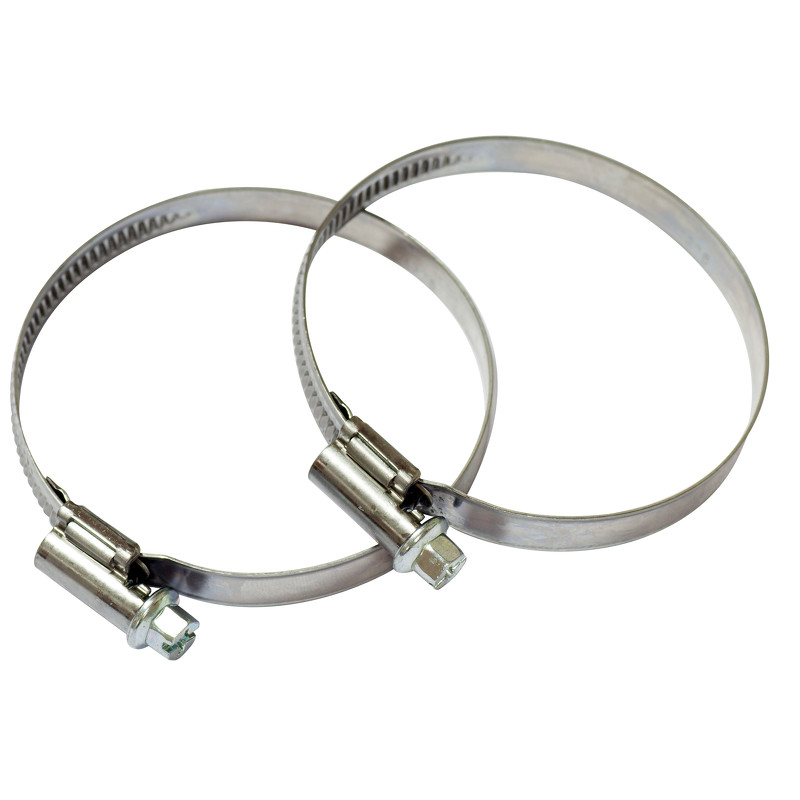

• 2x metal tightening strap.
